Caterpillar

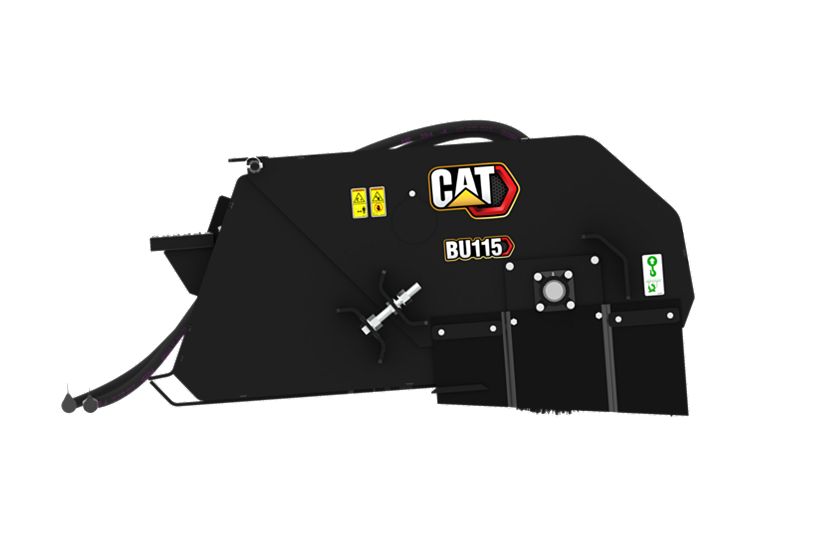

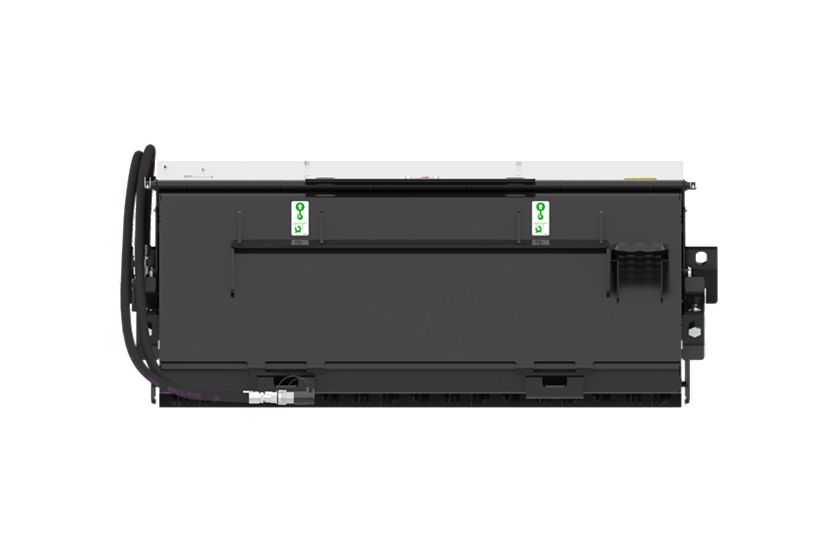

BU115 Utility Broom

Cat® Utility Brooms sweep and collect light debris on smooth surfaces in forward or reverse travel.

Media

Photos

Videos

Features

Details

Specifications

Spec Value
Overall Width 71 in 1810 mm
Sweeping Width 59 in 1510 mm
Brush Diameter 26 in 660 mm
Required Hydraulics Standard Flow Standard Flow
Height 31 in 793 mm
Length 59 in 1490 mm
Weight 947 lb 430 kg
Required Hydraulic Flow 30-83 L/min (8-22 gpm) 30-83 L/min (8-22 gpm)
Optimal Hydraulic Pressure 145-227 bar (2100-3300 psi) 145-227 bar (2100-3300 psi)
Motor Displacement 24 in³ 393 cm³
Brush Speed at Maximum Flow 190 rpm 190 rpm
Hopper Capacity 14.9 ft³ 0.42 m³
Gutter Brush Weight 88 lb 40 kg
Drive Method Direct Drive Direct Drive
