Caterpillar

BU118 Utility Broom

Cat® Utility Brooms sweep and collect light debris on smooth surfaces in forward or reverse travel.

Media

Studio Shot

Front View

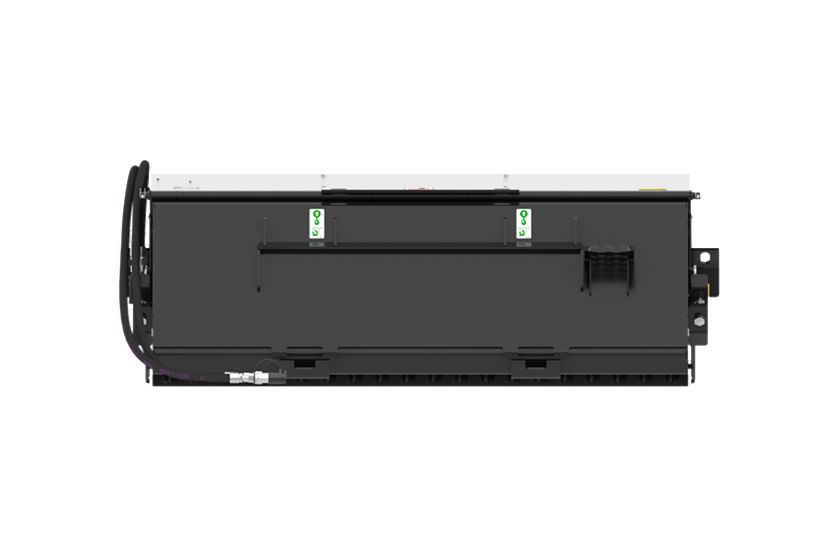

Top View

Left View

Rear View

Bottom View

Right View

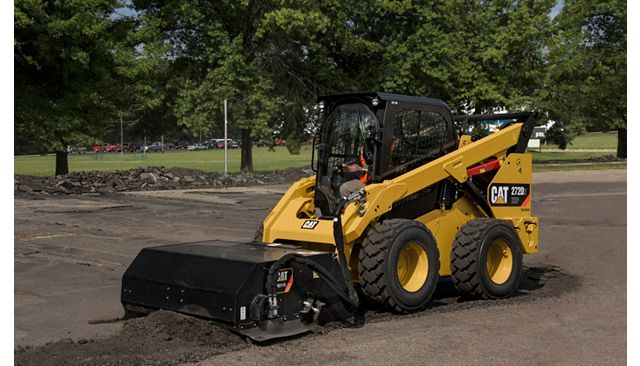

Cat® Utility Broom Sweeping and Collecting Debris

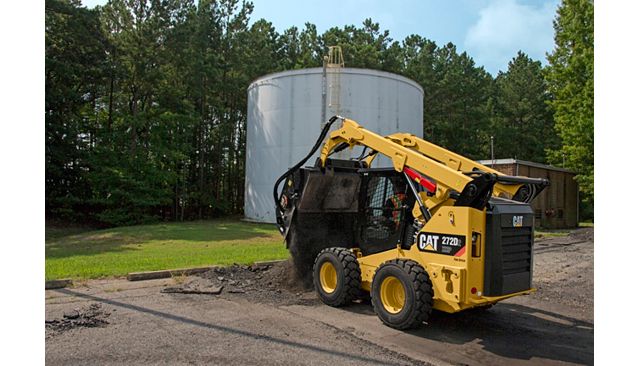

Cat® Utility Broom Dumping Debris into waiting Dump Truck

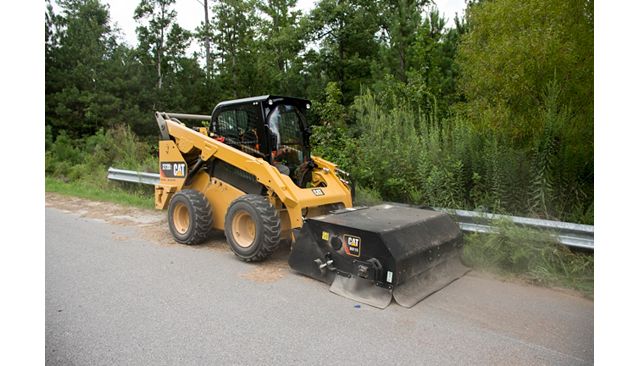

Cat® Utility Brooms at Work

Cat® Utility Broom Operating Tips

Cat® Angle Broom and Utility Broom for Compact Equipment at Work

Cat® Pickup Broom and Utility Broom Overview

Cat® Brooms at Work

An Attachment for Every Job – Cat® Work Tool Attachments

Exterior

Model shown represents features on all Cat® Utility Brooms except where indicated.

Documents

Cat® Angle Broom, Pickup Broom and Utility Broom for Compact Equipment Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Email
This field is for validation purposes and should be left unchanged.

Features

Application

Bi-Directional Sweeping

Broom Material Options

Large Hopper Capacity

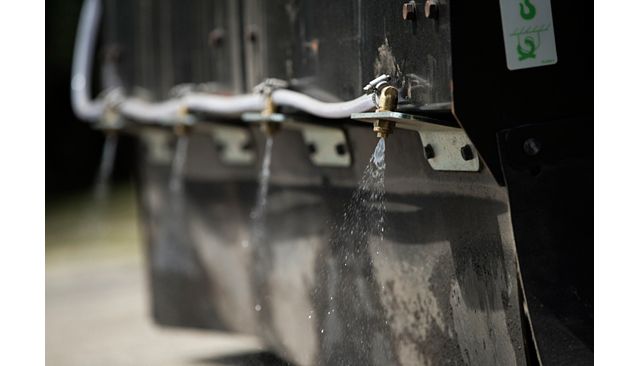

Optional Dust Control

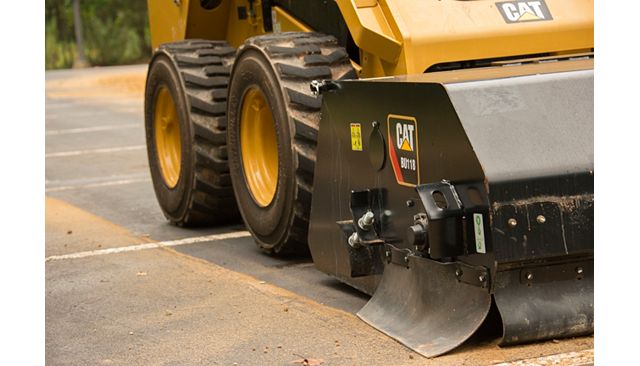

Rubber Boots

Specifications

US Metric

General

Spec	Value
Overall Width	83.3 in 2115 mm
Sweeping Width	73.4 in 1865 mm
Brush Diameter	26 in 660 mm
Required Hydraulics	Standard Flow Standard Flow
Height	31.2 in 793 mm
Length	58.7 in 1490 mm
Weight	1036.2 lb 470 kg
Required Hydraulic Flow	30-83 L/min (8-22 gpm) 30-83 L/min (8-22 gpm)
Optimal Hydraulic Pressure	145-227 bar (2100-3300 psi) 145-227 bar (2100-3300 psi)
Motor Displacement	24 in³/rev 393 cm³/rev
Brush Speed at Maximum Flow	190 rpm 190 rpm
Gutter Brush Weight	88.2 lb 40 kg
Drive Method	Direct Drive Direct Drive
