Caterpillar

BRX318 Industrial Brushcutter

Cat® Industrial Brushcutters are best for right of way maintenance, clearing land and brush cutting.

Media

Photos

Studio Shot
Studio Shot

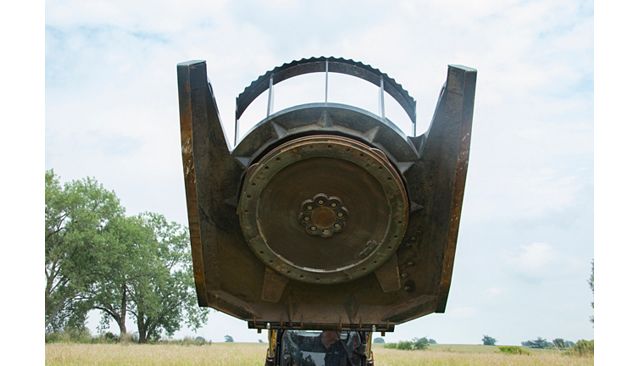

Front View
Front View

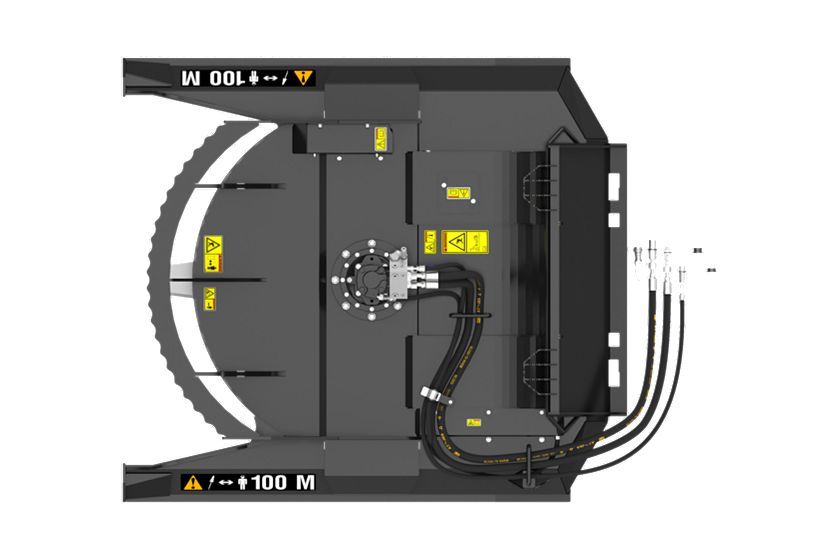

Top View
Top View
Left View
Left View
Rear View
Rear View
Bottom View
Bottom View
Right View
Right View
Cat® BRX118C Industrial Brushcutter
Cat® BRX118C Industrial Brushcutter

Videos

Cat® Industrial Brushcutters at Work
Cat® Industrial Brushcutter Overview
Cat® Industrial Brushcutter Operating Tips
Cat® Industrial Brushcutter Production Study
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Brushcutters except where indicated.

Documents

Features

Application

Fully Balanced Blade Carrier

Hardened Reversible Blades

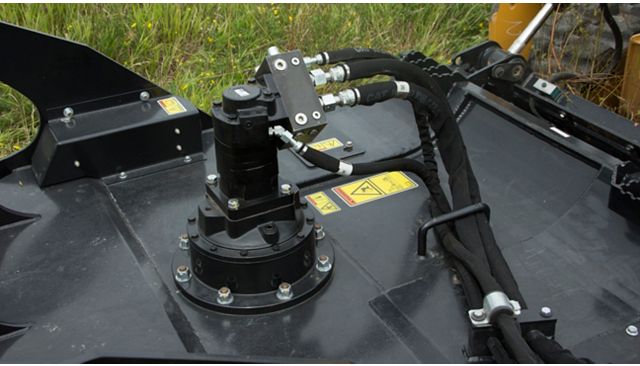

Long Life Motor w/ Anti-Cavitation Valve

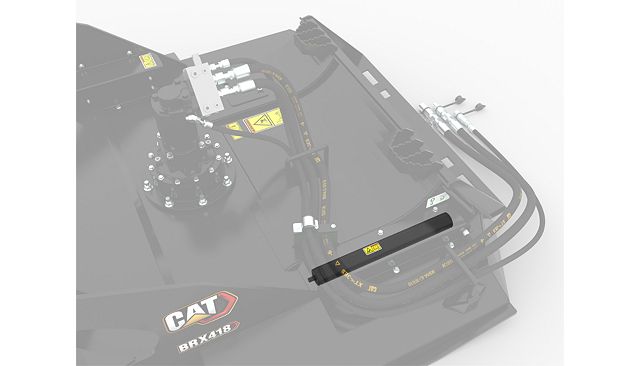

Integrated Accumulator

Heavy-Duty Skids

Reinforced Push Bar

Tuned Hydraulic Performance

Rigid Frame and Heavy Bearing Case

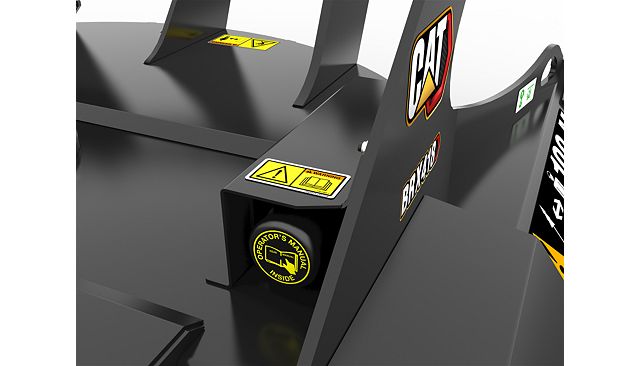

Tool Mounted Operation and Maintenance Manual Holder

Details

Specifications

Spec Value
Overall Width 75.2 in 1911 mm
Cutting Width 72 in 1829 mm
Maximum Cutting Diameter 8 in 203 mm
Required Hydraulics High Flow XPS High Flow XPS
Overall Length 85.4 in 2170 mm
Overall Height 28.9 in 733 mm
Weight 2363.4 lb 1072 kg
Optimal Hydraulic Flow 120-125 L/min (31-33 gpm) 120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure 200-280 bar (2800-4100 psi) 200-280 bar (2800-4100 psi)
Tip Speed (Depends On Flow) 3,180-3,300 mpm (10,433-10,827 fpm) 3,180-3,300 mpm (10,433-10,827 fpm)
Motor Displacement 11.9 in³/rev 195 cm³/rev
Drive Shaft Torque 444-829 N·m (327-611 lb/ft) 444-829 N·m (327-611 lb/ft)
