Caterpillar

BR117 Brushcutter

Cat® Brushcutters are used to clear land and overgrowth.

Media

Photos

Studio Shot
Studio Shot
Front View
Front View

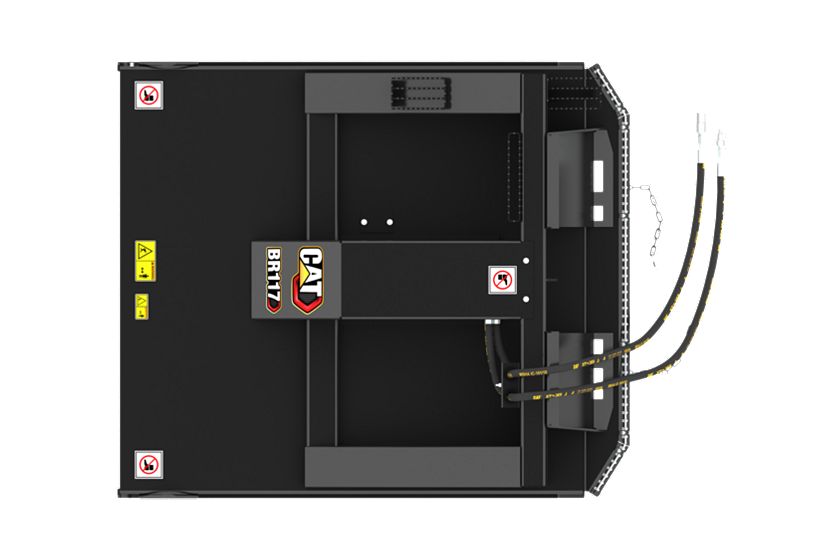

Top View
Top View

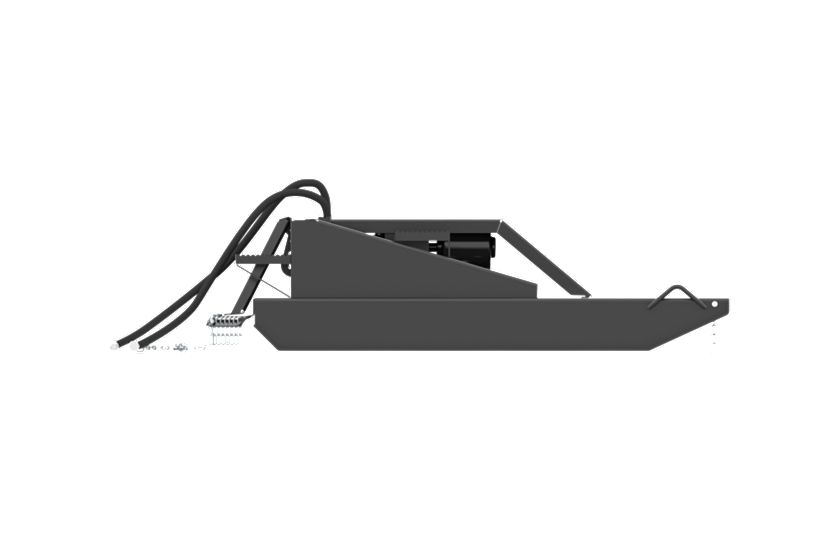

Left View
Left View
Rear View
Rear View

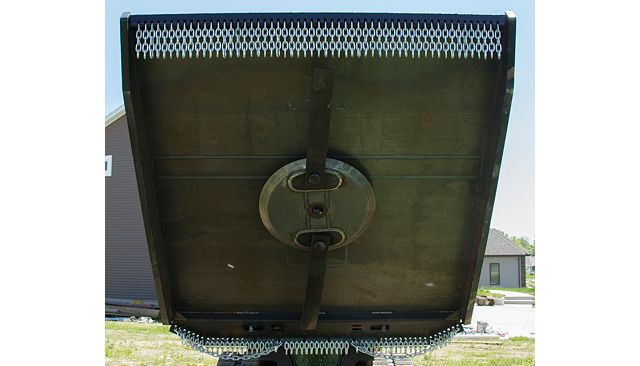

Bottom View
Bottom View
Right View
Right View
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application

Videos

Cat® Brushcutter Attachments at Work
Cat® Brushcutter Attachment Overview
Cat® Brushcutter Attachment Operating Tips
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Brushcutters except where indicated.

Documents

Features

Application

Blades and Blade Carriers

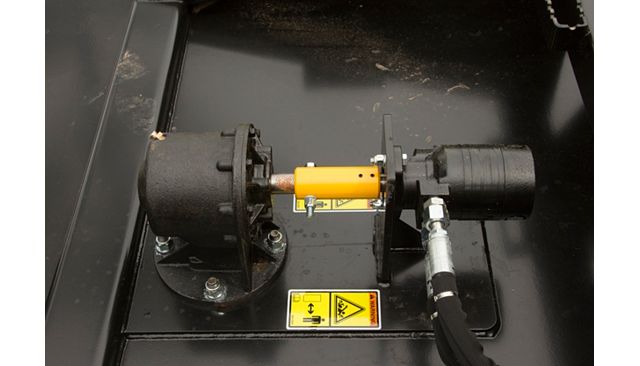

Long Life Motors and Gears

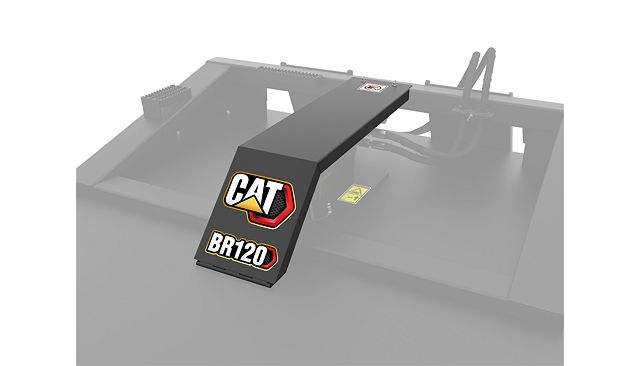

Motor Protection Guard

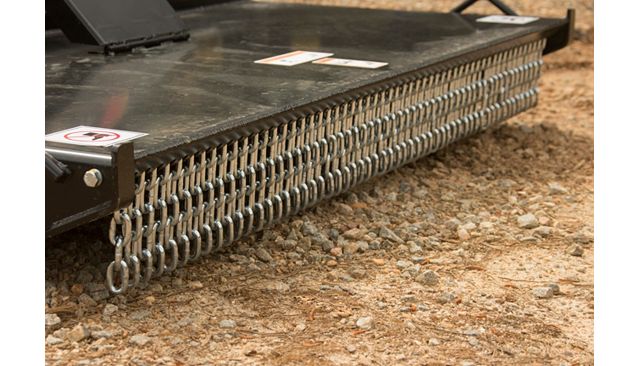

Galvanized Coil Chains

Heavy-Duty Skids

Details

Specifications

Spec Value
Overall Width 68 in 1727 mm
Cutting Width 66 in 1676 mm
Maximum Cutting Diameter 3 in 76 mm
Required Hydraulics Standard Flow Standard Flow
Overall Length 79 in 2007 mm
Overall Height 21 in 533 mm
Weight 1049.4 lb 476 kg
Optimal Hydraulic Flow 57-80 L/min (15-21 gpm) 57-80 L/min (15-21 gpm)
Optimal Hydraulic Pressure 150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi)
Tip Speed (Depends On Flow) 3,130-4,395 mpm (10,270-14,420 fpm) 3,130-4,395 mpm (10,270-14,420 fpm)
Motor Displacement 8.5 in³/rev 140 cm³/rev
Drive Shaft Torque 217-329 N·m (160-243 lb/ft) 217-329 N·m (160-243 lb/ft)
