Caterpillar

BR118 Brushcutter

Cat® Brushcutters are used to clear land and overgrowth.

Media

Photos

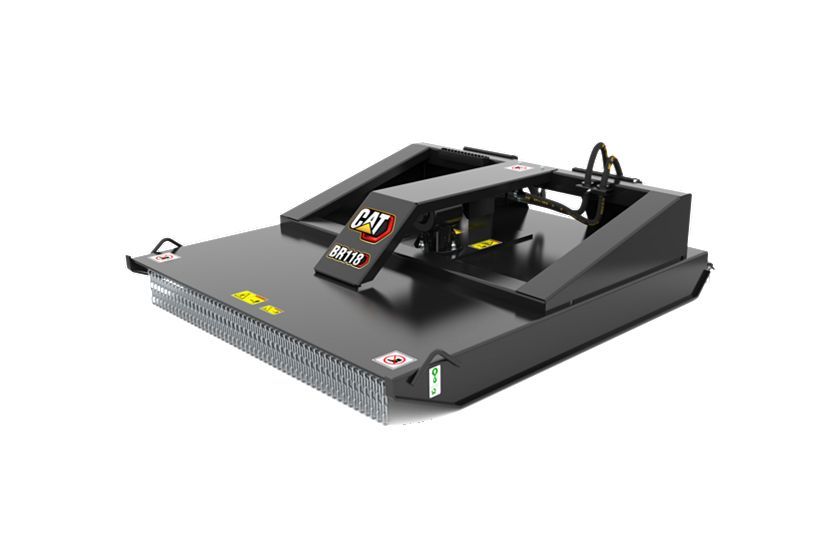

Studio Shot
Studio Shot
Front View
Front View

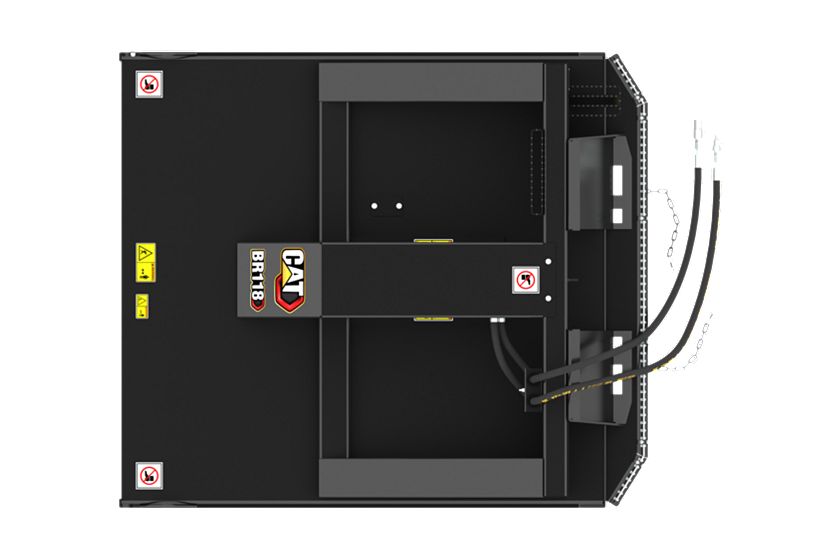

Top View
Top View

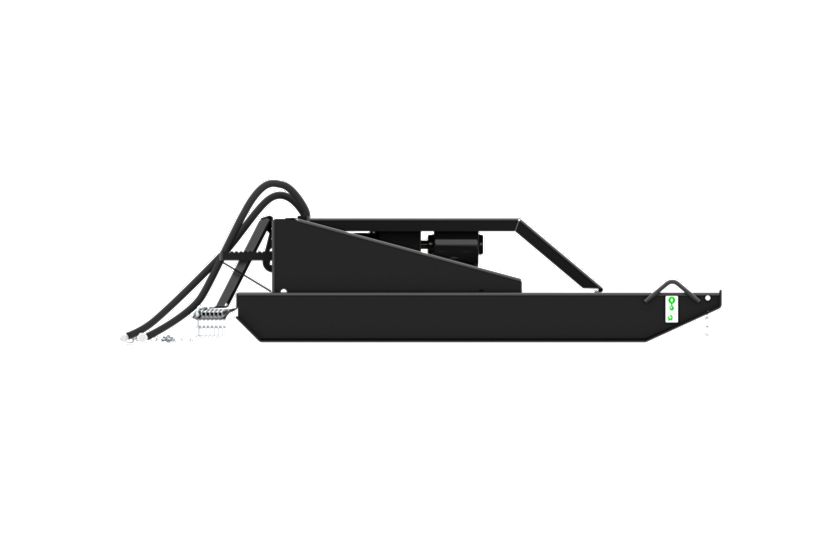

Left View
Left View
Rear View
Rear View
Bottom View
Bottom View
Right View
Right View
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application

Videos

Cat® Brushcutter Attachments at Work
Cat® Brushcutter Attachment Overview
Cat® Brushcutter Attachment Operating Tips
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Brushcutters except where indicated.

Documents

Features

Application

Blades and Blade Carriers

Long Life Motors and Gears

Motor Protection Guard

Galvanized Coil Chains

Heavy-Duty Skids

Details

Specifications

Spec Value
Overall Width 74 in 1880 mm
Cutting Width 72 in 1829 mm
Maximum Cutting Diameter 3 in 76 mm
Required Hydraulics Standard Flow Standard Flow
Overall Length 85 in 2159 mm
Overall Height 20.4 in 518 mm
Weight 1100.1 lb 499 kg
Optimal Hydraulic Flow 57-80 L/min (15-21 gpm) 57-80 L/min (15-21 gpm)
Optimal Hydraulic Pressure 150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi)
Tip Speed (Depends On Flow) 3,417-4,795 mpm (11,210-15,730 fpm) 3,417-4,795 mpm (11,210-15,730 fpm)
Motor Displacement 8.5 in³/rev 140 cm³/rev
Drive Shaft Torque 217-329 N·m (160-243 lb/ft) 217-329 N·m (160-243 lb/ft)
