Caterpillar

BR320 Brushcutter

Cat® Brushcutters are used to clear land and overgrowth.

Media

Photos

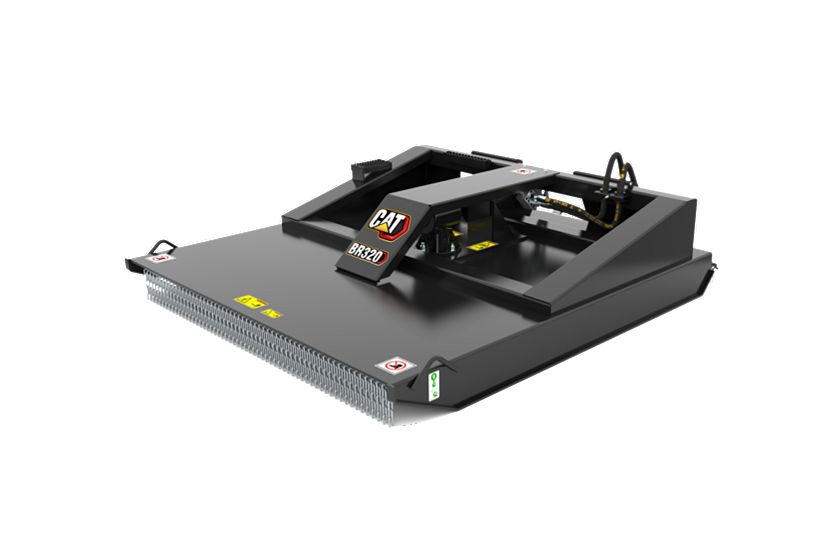

Studio Shot
Studio Shot

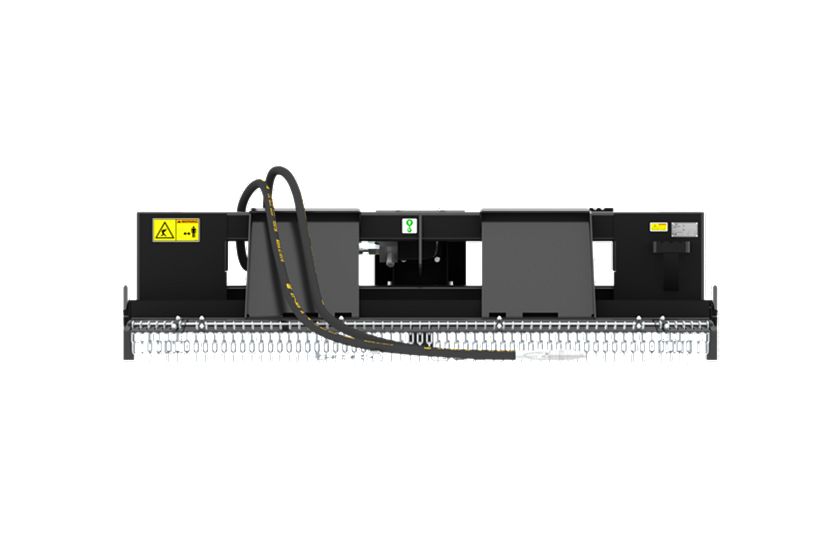

Front View
Front View

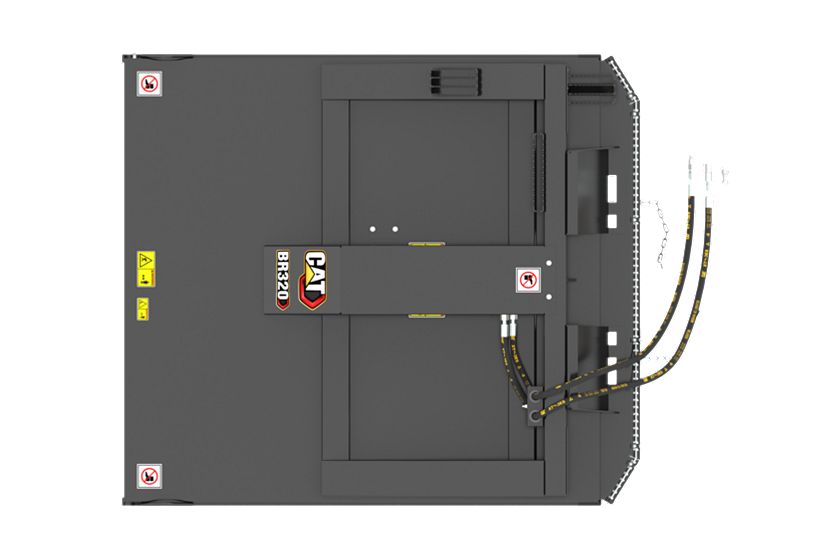

Top View
Top View
Left View
Left View
Rear View
Rear View
Bottom View
Bottom View

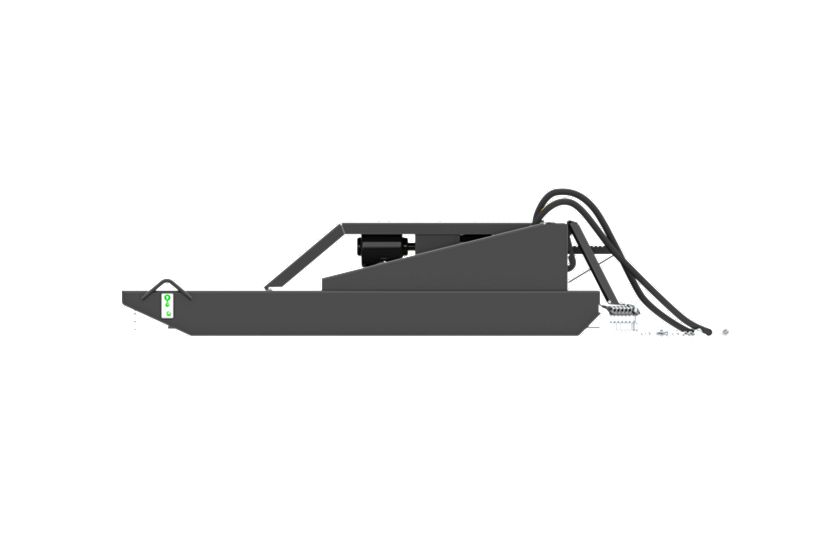

Right View
Right View
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter and 259D Compact Track Loader in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application
Cat® BR172 Brushcutter in a Landscaping Application

Videos

Cat® Brushcutter Attachments at Work
Cat® Brushcutter Attachment Overview
Cat® Brushcutter Attachment Operating Tips
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Brushcutters except where indicated.

Documents

Features

Application

Blades and Blade Carriers

Long Life Motors and Gears

Motor Protection Guard

Galvanized Coil Chains

Heavy-Duty Skids

Details

Specifications

Spec Value
Overall Width 80 in 2032 mm
Cutting Width 78 in 1981 mm
Maximum Cutting Diameter 3 in 76 mm
Required Hydraulics High Flow XPS High Flow XPS
Overall Length 91 in 2311 mm
Overall Height 20.9 in 531 mm
Weight 1179.5 lb 535 kg
Optimal Hydraulic Flow 76-130 L/min (20-34 gpm) 76-130 L/min (20-34 gpm)
Optimal Hydraulic Pressure 150-280 bar (2176-4065 psi) 150-280 bar (2176-4065 psi)
Tip Speed (Depends On Flow) 4,176-6,032 mpm (13,700-19,790 fpm) 4,176-6,032 mpm (13,700-19,790 fpm)
Motor Displacement 12 in³/rev 196 cm³/rev
Drive Shaft Torque 297-554 N·m (219-409 lb/ft) 297-554 N·m (219-409 lb/ft)
