Caterpillar

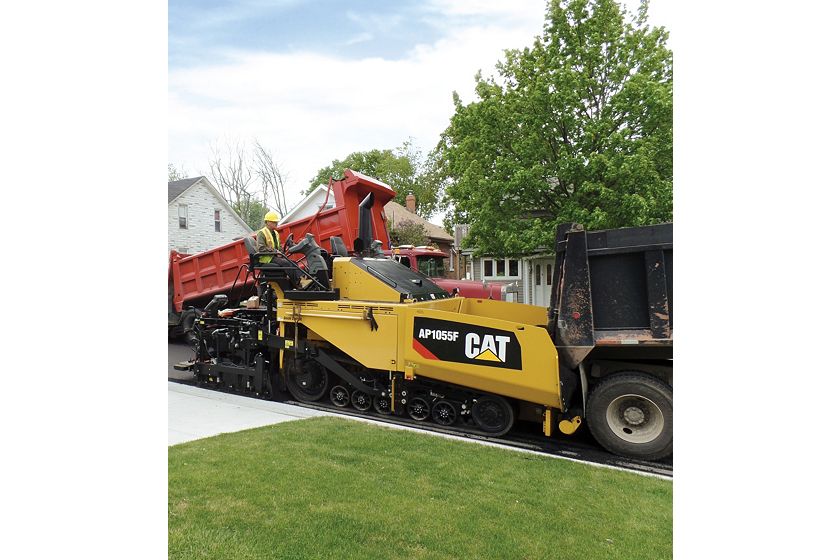

AP1055F Mobil-Trac Paver
Gross Power
225 HP
168 kW
Standard Paving Range
3 - 6 m (9' 10"-19' 6")
3 - 6 m (9' 10"-19' 6")
Operating Weight – With SE60 V
45090 lb
20452 kg
Overview
The AP1055F is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Weights
Spec | Value |
---|---|
Operating Weight – With SE60 V | 45090 lb 20452 kg |
Tractor Operating Weight | 37553 lb 17031 kg |
Operating Weight – With SE60 VT XW | 48320 lb 21918 kg |
Tractor Shipping Weight | 36804 lb 16691 kg |
Operating Weight – With SE60 V XW | 46580 lb 21128 kg |
Operating Specifications
Spec | Value |
---|---|
Standard Paving Range | 3 - 6 m (9' 10"-19' 6") 3 - 6 m (9' 10"-19' 6") |
Maximum Travel Speed | 9 mile/h 14.5 km/h |
Inside Turn Radius | 1.5 ft 0.5 m |
Hopper Capacity – Standard Entry | 267 ft³ 7.6 m³ |
Maximum Paving Speed – With Tamper Bar Screed | 82 ft/min 25 m/min |
Maximum Paving Speed – With Vibratory Screed | 210 ft/min 64 m/min |
Maximum Paving Width – SE60 V Screed | 25 ft 7.65 m |
Maximum Paving Width – SE60 V XW, VT XW Screeds | 33 ft 10 m |
Hopper Capacity – Low Entry Hopper | 286 ft³ 8.1 m³ |
Maximum Throughput Capacity | 1766 tonnes/hr 1602 tonnes/hr |
Dimensions
Spec | Value |
---|---|
Operating Width – Standard Entry Hopper | 132 in 3350 mm |
Operating Height – Without Canopy | 146 in 3715 mm |
Operating Width – Low Entry Hopper | 142 in 3604 mm |
Operating Height – With Canopy | 157 in 4000 mm |
Transport Width – With End Gates Folded | 9.83 ft 3 m |
Transport Width – With Screed End Gates | 10.66 ft 3.21 m |
Truck Entry Height – With Low Entry Hopper | 20.5 in 521 m |
Truck Entry Height – With Standard Entry Hopper | 22.5 in 572 mm |
Transport Length – With SE60 V Screed | 20 ft 6.7 m |
Transport Length – With SE60 XW-Series | 22.7 ft 6.88 m |
Operating Length – With SE60 V Screed | 22.5 ft 6.86 m |
Operating Length – With SE60 V XW, VT XW Screeds | 23.1 ft 7.05 in |
Transport Height – Without Canopy | 10.45 ft 2.92 m |
Transport Height – Canopy Retracted | 10.5 ft 3.05 mm |
Engine
Spec | Value |
---|---|
Gross Power | 225 HP 168 kW |
Engine Model | Cat C7.1 with ACERT Cat C7.1 with ACERT |
Service Refill Capacities
Spec | Value |
---|---|
Fuel Tank Capacity | 92 gal (US) 348 l |
DEF Tank | 5 gal (US) 19.1 l |
Optional Equipment
Options
- Air-ride Seat with Heat
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Ballast
- Cat Grade Control
- Decelerator Pedals
- Ecological Washdown System
- Feed Sensor (Sonic or Mechanical)
- Friction Steering
- Hardtop Canopy
- HID Lights
- Leveling Devices
- Lights (Working or Roading)
- Mainframe Extensions (Power or Manual)
- Oscillating Push Rollers
- Power Folding Front Apron
- Product Link
- Smooth or Treadbar Belt
- Steering Guide
- Tow Point Indicators (Upper)
- Track Plow
- Truck Hitch
- Generator
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Wide-width Paving Packages
- Windshield w/Hardtop Canopy
Grade References
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30′) and 12.2 m (40′)
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
Screed Choices
- SE60 V Vibratory Screed
- SE60 V XW Vibratory Screed
- SE60 VT XW Vibratory and Tamper Bar Screed
