Caterpillar
G3412 Gas Generator Set
Maximum Standby Rating
500 ekW @0.8pf
500 ekW @0.8pf
Fuel Type
Natural Gas
Natural Gas
Emissions/Fuel Strategy
U.S. EPA Certified for Emergency Only Stationary Genset
U.S. EPA Certified for Emergency Only Stationary Genset
Overview
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
Media

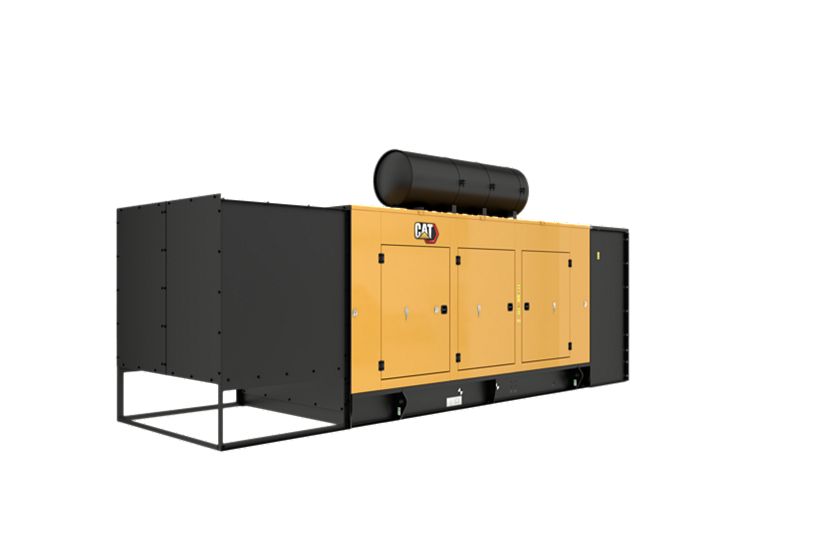

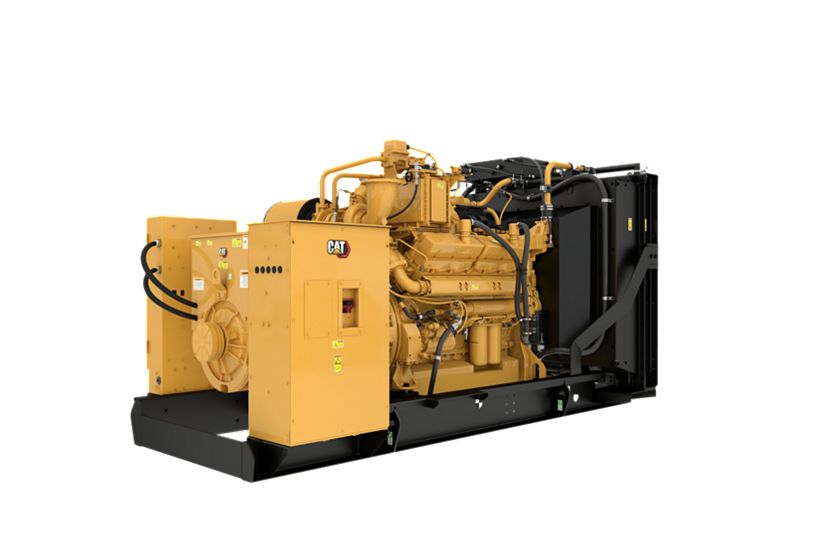

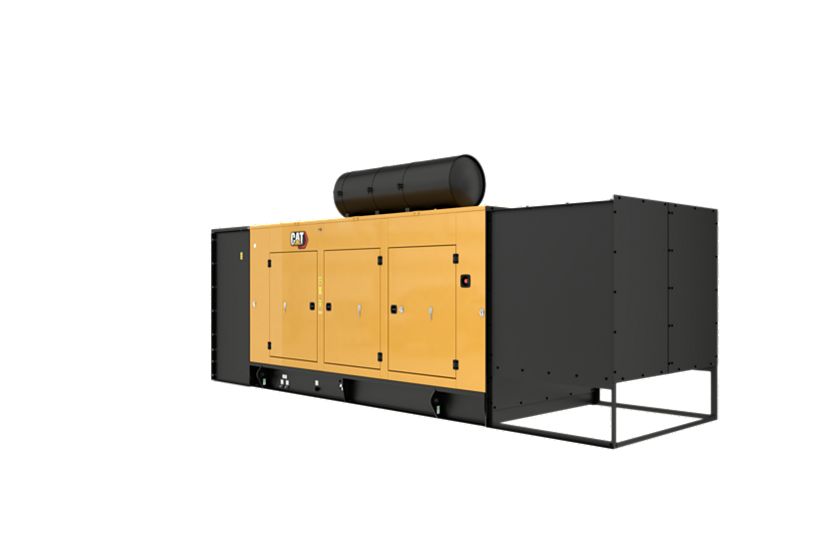

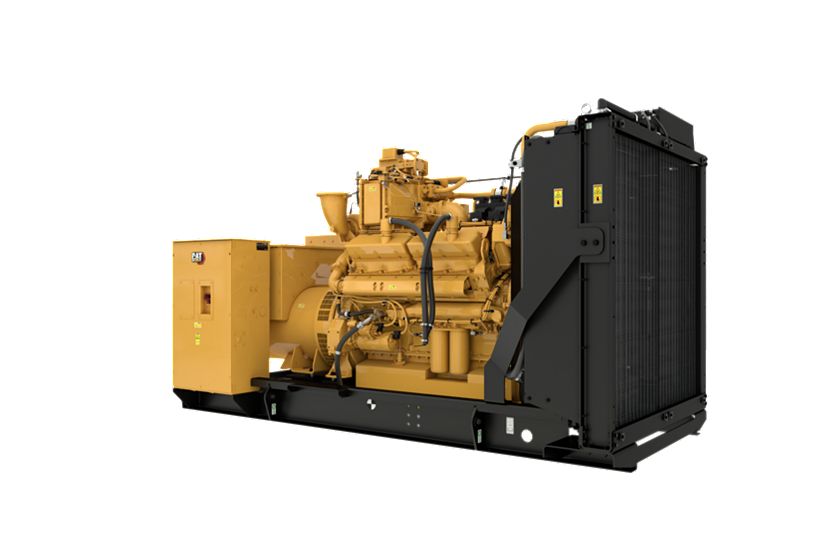

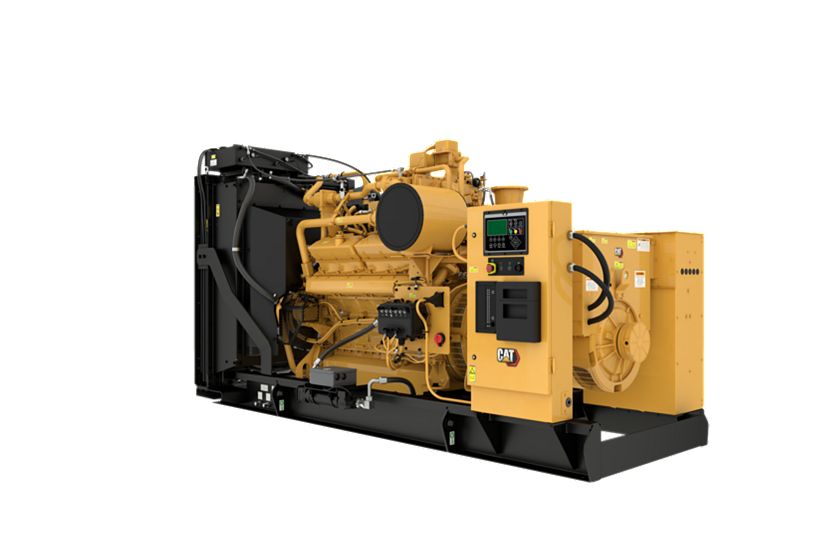

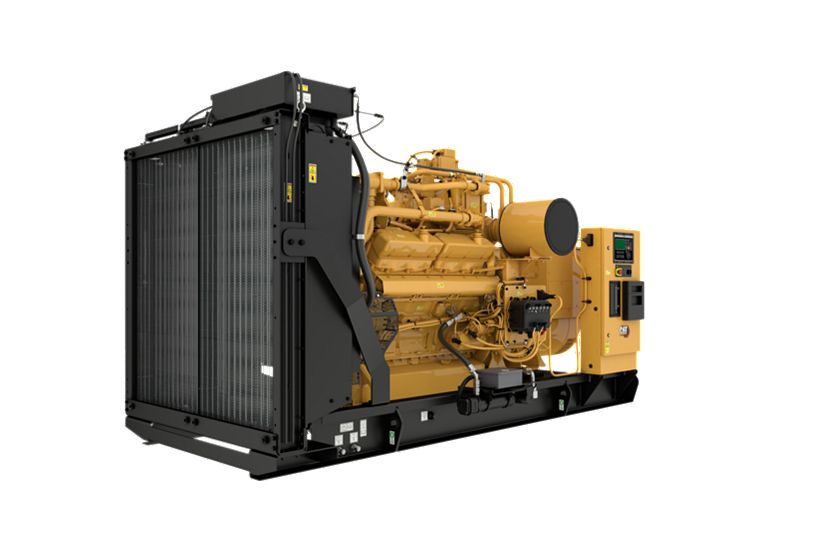

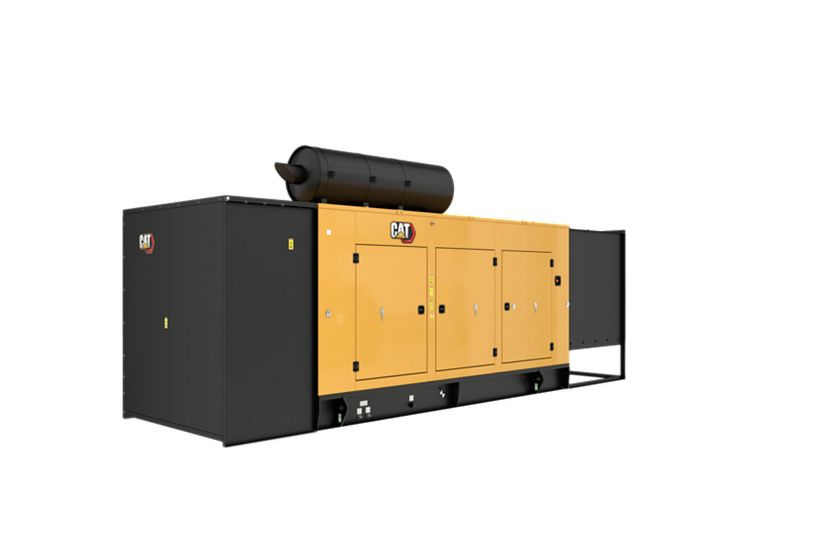

Photos
Features
Emissions
EMCP4.3 Control Panel
Cooling System
SR5 Generator
Full Range of Attachments
Proven System
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Standby Rating | 500 ekW @0.8pf 500 ekW @0.8pf |
| Fuel Type | Natural Gas Natural Gas |
| Emissions/Fuel Strategy | U.S. EPA Certified for Emergency Only Stationary Genset U.S. EPA Certified for Emergency Only Stationary Genset |
| Frequency | 60 Hz 60 Hz |
| RPM | 1800 rpm 1800 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3412 G3412 |
| Displacement | 1649 in³ 27 l |
| Aspiration | NA NA |
| Bore | 5.4 in 137 mm |
| Stroke | 6 in 152 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 165 in 1498 mm |
| Width | 85.25 in 2189 mm |
| Height | 86 in 2165 mm |
| Dry Weight – Genset | 14700 lb 6700 kg |
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
- Dual air cleaners, 1 per side, with service indicator
Control Panel
- EMCP 4.3
Cooling
- Package mounted radiator
- LH or RG connections when radiator is not selected
- Engine driven pumps for jacket water and separate circuit aftercooler
- Jacket water and SCAC thermostats
Fuel
- Pipeline Natural Gas: 800-1000 BTU/scf and 70-100 Methane Number
- Gas Train: NFPA37 and CSA B149.3
Exhaust
- Dry exhaust manifolds, insulated and shielded
Fuel System
- Engine-installed electronic control valve
- Gas pressure regulator
- 24V DC energized-to-run (ETR) gas shutoff valve
General
- Paint- Caterpillar Yellow with gloss black rails and radiators
- Operation and maintenance manuals
- RH Service
- Parts book
- Crankshaft vibration damper and guard
Lubrication
- Cartridge style oil filter
- Gear type lube oil pump
Generator
- Caterpillar’s Digital Voltage Regulator (CDVR) including reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, and a min/max exciter
- Anti-condensation space heater
- Permanent Magnet Excitiation
- Winding temperature detectors
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Starting/Charging
- Electric Starter
- 24V DC starting motors
Optional Equipment
Air Inlet
- Air cleaner with precleaner
Circuit Breakers
- S LSI
- Frame mounting
- Right, left, rear mounted
Control Panel
- Local alarm module
- Local PC monitoring
- Remote PC monitoring
- Remote annunciator
Cooling
- Inlet/Outlet connections
- Coolant level drain line with valves, fan with guard
Exhaust
- Flexible fittings
- 15, 25 dBA Attenuation
General
- Digital diagnostic tool
- Tool set
- US AID emblem
Generator
- Cable access box
- Bearing temperature detectors
Starting/Charging
- Battery with cables and rack (shipped loose)
- 10A, 24VDC battery charger
- Jacket water heater
