Caterpillar

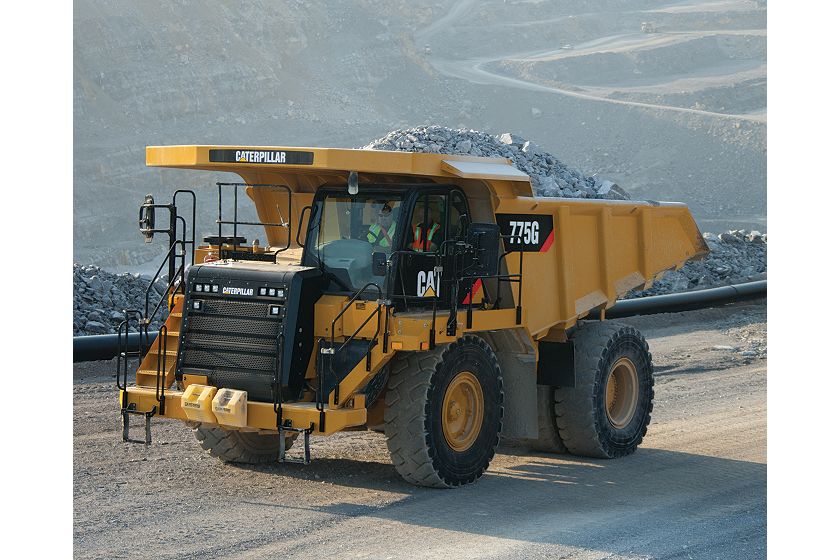

775G Off-Highway Truck

Nominal Payload Class (100%)

70.5 ton (US)

64 t

Engine Model

Cat® C27

Cat® C27

Top Speed – Loaded

41.6 mile/h

66.9 km/h

Overview

Having a solid track record in the quarry and aggregates industry, Cat’s 775G has been designed and manufactured using the latest quality control technologies—both virtually and hands on—to ensure your Off-Highway Truck is ready to do work. Built with a Cat C27 diesel engine, the 775G has improved fuel efficiency and delivers an additional 5% horsepower. Our 775G is a great pass match for the Cat 988K or 990K Wheel Loader, too. By having the Cat G Series trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Which ultimately allows you to make a positive impact within your business and community every day.

Media

Photos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Details

Specifications

Spec Value
Engine Model Cat® C27 Cat® C27
Rated Engine Speed 1800 r/min 1800 r/min
Gross Power – SAE J1995 825 HP 615 kW
Net Power – SAE J1349 768 HP 572 kW
Net Power – 80/1269/EEC 775 HP 578 kW
Net Power – ISO 9249 775 HP 578 kW
Bore 5.4 in 137 mm
Stroke 6 in 152 mm
Displacement 1648 in³ 27 l
Engine Power – ISO 14396 812 HP 605.2 kW
Net Torque 3148 ft-lb 4269 N·m
Emissions Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Note (2) Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Peak Torque – Speed 1200 r/min 1200 r/min
Note (3) No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent.
Note (1) Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard.
Spec Value
Maximum Gross Vehicle Weight 246503 lb 111812 kg
Spec Value
Nominal Payload Class (100%) 70.5 ton (US) 64 t
Top Speed – Loaded 41.6 mile/h 66.9 km/h
Note (1) Capacity with Dual Slope body – no liner. Capacity with Dual Slope body – no liner.
Maximum Allowable Payload (120%)* 84.6 ton (US) 76.7 t
Body Capacity – SAE 2:1 55.23 yd³ 42.23 m³
Maximum Working Payload (110%) 77.5 ton (US) 70.3 t
Target Payload (100%) 70.5 ton (US) 64 t
Note (2) * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Spec Value
Forward – 1 6.6 mile/h 10.6 km/h
Forward – 2 9.3 mile/h 15 km/h
Forward – 3 12.6 mile/h 20.3 km/h
Forward – 4 16.8 mile/h 27 km/h
Forward – 5 22.8 mile/h 36.7 km/h
Forward – 6 30.7 mile/h 49.4 km/h
Forward – 7 41.6 mile/h 66.9 km/h
Reverse 8.7 mile/h 14 km/h
Note Maximum travel speeds with standard 24.00R35 (E4) tires. Maximum travel speeds with standard 24.00R35 (E4) tires.
Spec Value
Differential Ratio 3.64:1 3.64:1
Planetary Ratio 4.80:1 4.80:1
Total Reduction Ratio 17.49:1 17.49:1
Spec Value
Brake Surface – Front 257 in² 655 cm²
Brake Surface – Rear 9497 in² 61269 cm²
Brake Standards ISO 3450:2011 ISO 3450:2011
Spec Value
Pump Flow – High Idle 118 gal/min 448 l/min
Relief Valve Setting – Raise 2502 psi 17250 kPa
Relief Valve Setting – Lower 500 psi 3450 kPa
Body Raise Time – High Idle 10 s 10 s
Body Lower Time – Float 14 s 14 s
Body Power Down – High Idle 14 s 14 s
Spec Value
Struck 42.7 yd³ 32.6 m³
Note (1) Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Heaped (SAE 2:1)* 55.5 yd³ 42.2 m³
Note (2) *ISO 6483:1980 *ISO 6483:1980
Spec Value
Struck 42.2 yd³ 32.3 m³
Note (1) Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Heaped (SAE 2:1)* 55.2 yd³ 42.2 m³
Note (2) *ISO 6483:1980 *ISO 6483:1980
Spec Value
Front Axle – Empty 50 % 50 %
Front Axle – Loaded 34 % 34 %
Rear Axle – Empty 50 % 50 %
Rear Axle – Loaded 66 % 66 %
Spec Value
Empty Loaded Cylinder Stroke Rear 5.8 in 149 mm
Empty Loaded Cylinder Stroke Front 9.2 in 234 mm
Rear axle – Oscillation 8.1° 8.1°
Spec Value
Fuel Tank 210 gal (US) 795 l
Cooling System 45 gal (US) 171 l
Differential – Final Drives 38 gal (US) 145 l
Steering Tank 9.5 gal (US) 36 l
Steering System – Including Tank 14 gal (US) 54 l
Torque Converter – Transmission System – HRC 18 gal (US) 70 l
Brake Hoist System 85 gal (US) 322 l
Crankcase 24 gal (US) 90 l
Torque Converter – Transmission System – LRC 16 gal (US) 61 l
Brake/Hoist Hydraulic Tank 46.5 gal (US) 176 l
Spec Value
Note (1) Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2) Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.
Standard Tire 24.00R35 (E4) 24.00R35 (E4)
Spec Value
ROPS Standards Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
FOPS Standards Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
Spec Value
Sound Standards (2) The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A).
Sound Standards (1) The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound Standards (3) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Spec Value
Turning Diameter – Front 77.1 ft 23.5 m
Steering Standards ISO 5010:2007 ISO 5010:2007
Steer Angle 31 ° 31 °
Turning Circle – Clearance Diameter 85.6 ft 26.1 m

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • Cat C27 Tier 4/Stage V compliant diesel engine:
    – Air cleaner with precleaner (2)
    – Air-To-Air Aftercooler (ATAAC)
    – Electric start
    – Engine idle shutdown
    – Ether starting aid
    – Exhaust muffler
    – NGMR radiator
  • For Tier 4 regions only (U.S./Canada):
    – Aftertreatment system
    • NOx Reduction System (NRS)
    • Diesel Oxidation Catalyst (DOC)

    – Demand fan
    – MEUI-C fuel system
  • Braking system:
    – Extended Life Brakes
    – Automatic Retarder Control (ARC)
    – Manual retarder (utilizes rear oil-cooled, multiple disc brakes)
    – Brake release motor (towing)
    – Dry disc brakes (front)
    – Front brake disconnect switch (front)
    – Oil-cooled multiple disc brakes (rear)
    – Brake wear indicator (rear)
    – Parking brake
    – Secondary brake
    – Service brake
  • Transmission:
    – 7-speed automatic powershift with:
    • Electronic Clutch Pressure Control (ECPC)
    • Advanced Productivity Electronic Control Strategy (APECS)

    – Automatic neutral idle
    – Autostall
    – Second gear start

SUSPENSION SYSTEMS

  • Suspension, front and rear

ELECTRICAL

  • Alarm backup
  • Alternator, 120 Amp
  • Autolube power supply ready
  • Batteries, maintenance-free, 12V (2), 1,400 CCA combined
  • Electrical system, 25 Amp, 24V to 12V converter
  • Lighting system:
    – Backup light (halogen)
    – Directional signals/hazard warning (front and rear LED)
    – Engine compartment light
    – Headlights, (halogen) with dimmer
    – Operator access courtesy lights
    – Side profile lights
    – Stop/tail lights (LED)
  • Service center containing:
    – Battery jump start
    – Breakers with spare fuses
    – Lockout switch
    – Ports, ET, and VIMS
    – Service lockout switch (power without engine start)

TECHNOLOGY PRODUCTS

  • Economy Modes, standard and adaptive
  • Product Link, cellular or satellite
  • Traction Control System (TCS)
  • Truck Production Management System
  • Vital Information Management System (VIMS)

OPERATOR ENVIRONMENT

  • Advisor display:
    – Air cleaner service indicator
    – Fluid level monitoring
    – Fuel level monitoring
    – Display languages (market based)
  • Air conditioning/heat
  • Automatic temperature control
  • Ashtray and cigarette lighter
  • Coat hook
  • Cup holders (4)
  • Diagnostic connection port, 24V
  • Entertainment radio ready:
    – 5 amp converter
    – Speakers
    – Antenna
    – Wiring harness
  • Foot rest
  • Gauges/indicators:
    – Brake oil temperature gauge
    – Coolant temperature gauge
    – Engine overspeed indicator
    – Fuel level
    – Hour meter
    – Speedometer with odometer
    – Tachometer
    – Transmission gear indicator
  • Hoist lever
  • Horn
  • Light – courtesy
  • Light – dome
  • Mirrors, non-heated
  • Power port, 24V and 12V (2)
  • Rollover Protection (ROPS)/Falling Object Protection (FOPS)
  • Seat, Cat Comfort Series III:
    – Full air suspension
    – Retractable 3-point seat belt with shoulder harness
  • Seat, training with lap belt
  • Steering wheel, padded, tilt and telescopic
  • Storage compartment
  • Sun visor
  • Throttle lock
  • Window, hinged, right side (emergency exit)
  • Window, powered, left side
  • Windshield wiper intermittent and washer

GUARDS

  • Driveline
  • Engine crankcase
  • Fan

FLUIDS

  • Antifreeze
  • Extended life coolant to –34° C (–30° F)
  • Grouped ground-level filters

OTHER STANDARD EQUIPMENT

  • Body down indicator
  • Body safety pin (secures body in up position)
  • Center-mounted rims
  • Fuel tank, 795 L (210 gal)
  • Ground level battery disconnect
  • Ground level engine shutdown
  • Ground level grease fittings
  • Operator Maintenance Manual (OMM)
  • Rims 17 × 35
  • Rock ejectors
  • Secondary steering (electric)
  • Tie down eyes
  • Tow hooks (front)/tow pin (rear)
  • Vandalism protection locks

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Body heat
  • Body liner
  • Body sideboards
  • Cab precleaner
  • Cat Engine Brake
  • Clustered grease fittings
  • Cold weather packages
  • Fluid fill service center
  • HID lights
  • Mirrors, convex
  • Mirrors, heated
  • Spare rim
  • Visibility package (meets ISO 5006 requirements)
  • Wheel chocks
  • Work Area Vision System (WAVS)
