Caterpillar

907M Ag Handler – Agricultural Arrangement

Name: 907M Ag Handler – Agricultural Arrangement
Brand: Caterpillar

Maximum Gross Power

73.2 HP

54.6 kW

Operating Weight

12958 lb

5880 kg

Bucket Capacities

0.75-1.5 m³ (1.0-2.0 yd³)

Overview

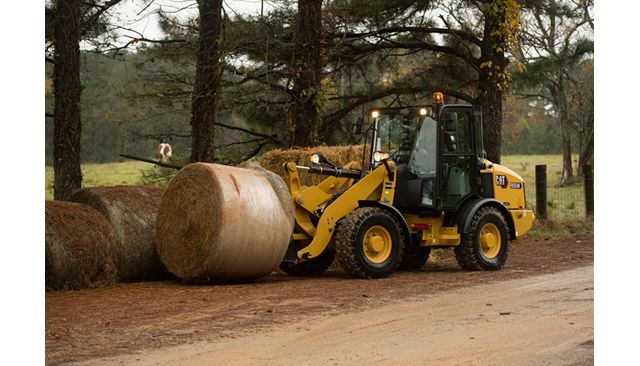

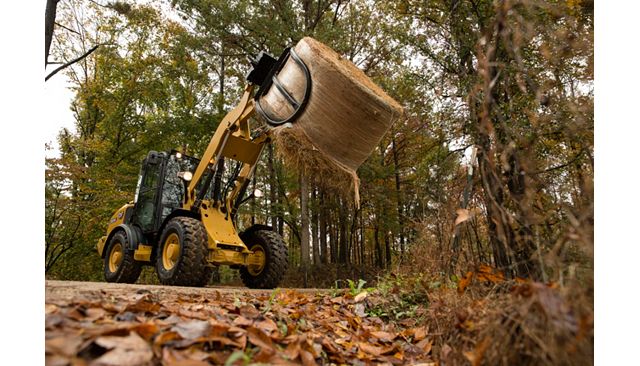

The Cat® 907M Ag Handler is compact, yet powerful, allowing you to do what you want, when you need to, in any agricultural application. The Ag Handler has features that will maximize the performance of the machine, making it a perfect fit to use around the farm.

Media

Cat® 906M-907M-908M Ag Handler Overview

Cat® Compact and Small Wheel Loaders in Action

Operator Comfort | Cat® M Series Compact Wheel Loader Operating Tips

Machine Controls | Cat® M Series Compact Wheel Loader Operating Tips

Efficient Hystat Operation | Cat® M Series Compact Wheel Loader Operating Tips

Preventative Maintenance | Cat® 906M-907M-908M Compact Wheel Loader Operating Tips

Rim Pull | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Throttle Lock | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Customize Your Experience | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Hydro-Mechanical Work Tools | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Creeper Control | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Ride Control | Cat® 906M-907M-908M-910M-914M-918M Compact Wheel Loader Operating Tips

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Documents

907M Ag Handler Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Application Specific Configuration

Efficiently Powerful

Work Made Easy

Enjoy All Day Comfort

Customize Your Experience

Specifications

US Metric

Engine

Spec	Value
Maximum Gross Power	73.2 HP 54.6 kW
Engine Model	Cat® C3.3B DIT* Cat® C3.3B DIT*
Maximum Gross Power – ISO 14396	73.2 HP 54.6 kW
Maximum Gross Power – ISO 14396 (metric)	74.2 mhp 74.2 mhp
Rated Net Power – 2,400 rpm – SAE J1349	71.9 HP 53.6 kW
Rated Net Power – 2,400 rpm – ISO 9249	72.9 HP 53.6 kW
Emissions	The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards. The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.

Weights

Spec	Value
Operating Weight	12958 lb 5880 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP). Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).

Service Refill Capacities

Spec	Value
Cooling System	4.5 gal (US) 17 l
Fuel Tank	20.6 gal (US) 78 l
Hydraulic System	18.5 gal (US) 70 l
Engine Oil	3 gal (US) 11.2 l

Travel Speeds

Spec	Value
Speed 1	6.2 mile/h 10 km/h
Speed 2	12.4 mile/h 20 km/h
High Speed	21.7 mile/h 35 km/h

Buckets

Spec	Value
Bucket Capacities	0.75-1.5 m³ (1.0-2.0 yd³) 0.75-1.5 m³ (1.0-2.0 yd³)
Bucket Capacities – ISO Coupler	0.75-1.5 m³ 0.75-1.5 m³
Bucket Capacities – SSL Style Coupler	1.0-2.0 yd³ 1.0-2.0 yd³

Hydraulic System

Spec	Value
Main Relief – 3rd Aux Flow	3400 psi 235 bar
Main Relief – 3rd Aux Flow: Standard	20 gal/min 76 l/min
Main Relief – 3rd Aux Flow: High Flow	31 gal/min 120 l/min
Hydraulic Cycle Time – Lower	3.2 seconds 3.2 seconds
Hydraulic Cycle Time – Rackback	2.1 seconds 2.1 seconds

Loader Hydraulic System

Spec	Value
Hydraulic Cycle Time – Lift	5.2 seconds 5.2 seconds
Hydraulic Cycle Time – Dump	1.3 seconds 1.3 seconds

Dimensions - With ISO Coupler - Approximate

Spec	Value
Height – Ground to Cab	8.33 ft 2559 mm
Height – Ground Clearance	11 in 302 mm
Length – Wheel Base	7.08 ft 2170 mm
Length – Overall with Bucket	17.67 ft 5392 mm
Reach – Bucket at 45°	2.42 ft 740 mm
Dig Depth	4.2 in 108 mm
Clearance – Bucket at 45°	8.08 ft 2469 mm
Clearance – Level Bucket	9.83 ft 3006 mm
Height – Bucket Pin	10.5 ft 3212 mm
Departure Angle	33° 33°
Length – Overall with Forks	19.42 ft 5921 mm
Reach – Ground	2.42 ft 742 mm
Reach – Level Arm	4 ft 1227 mm
Fork Dig Depth	3.1 in 80 mm
Clearance – Level Arm	4.42 ft 1370 mm
Clearance – Full Lift	9.92 ft 3034 mm
Fork Reach at Full Lift	1.42 ft 455 mm
Turning Radius – Over Bucket	14.67 ft 4475 mm
Turning Radius – Inside Tire	6.83 ft 2108 mm
Width – Bucket	6.67 ft 2035 mm
Width – Tread Center	4.58 ft 1420 mm
Width – Over Tires	6 ft 1840 mm
Articulation Angle	39° 39°
Dump Angle at Full Lift	45° 45°
Note	Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires. Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.

Dimensions - With SSL Coupler - Approximate

Spec	Value
Height – Ground to Cab	8.33 ft 2559 mm
Height – Ground Clearance	11 in 302 mm
Length – Wheel Base	7.08 ft 2170 mm
Length – Overall with Bucket	18.17 ft 5550 mm
Reach – Bucket at 45°	2.75 ft 863 mm
Dig Depth	4.5 in 116 mm
Clearance – Bucket at 45°	7.75 ft 2371 mm
Clearance – Level Bucket	9.83 ft 2998 mm
Height – Bucket Pin	10.5 ft 3212 mm
Departure Angle	33° 33°
Length – Overall with Forks	19.42 ft 5923 mm
Reach – Ground	2.42 ft 744 mm
Reach – Level Arm	4.17 ft 1291 mm
Fork Dig Depth	0.2 in 6 mm
Clearance – Level Arm	4.67 ft 1444 mm
Clearance – Full Lift	10.17 ft 3108 mm
Fork Reach at Full Lift	1.67 ft 520 mm
Turning Radius – Over Bucket	14.75 ft 4509 mm
Turning Radius – Inside Tire	6.83 ft 2108 mm
Width – Bucket	6.67 ft 2035 mm
Width – Tread Center	4.58 ft 1420 mm
Width – Over Tires	6 ft 1840 mm
Articulation Angle	39° 39°
Dump Angle at Full Lift	43° 43°
Note	Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires. Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires.

Operating Specifications - ISO Coupler

Spec	Value
Tire Size	340/80 R18 340/80 R18
Operating Weight	12854 lb 5833 kg
Rated Bucket Capacity	1.2 yd³ 0.9 m³
Breakout Force – Bucket	11240 lbf 50 kN
Rated Operating Load at Full Turn – Bucket	4019 lb 1823 kg
Straight Tipping Load – Bucket	9531 lb 4323 kg
Full Turn Static Tipping Load – Bucket	8038 lb 3646 kg
Rack Back – Transport Position	52° 52°
Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)	5226 lb 2371 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP). Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).

Operating Specifications - SSL Coupler

Spec	Value
Tire Size	340/80 R18 340/80 R18
Operating Weight	12958 lb 5880 kg
Rated Bucket Capacity	1.2 yd³ 0.9 m³
Breakout Force – Bucket	8983 lbf 40 kN
Rated Operating Load at Full Turn – Bucket	3763 lb 1707 kg
Straight Tipping Load – Bucket	8946 lb 4058 kg
Full Turn Static Tipping Load – Bucket	7529 lb 3415 kg
Rack Back – Transport Position	53° 53°
Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)	4974 lb 2257 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP). Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).

Maximum Material Densities - General Purpose Bucket

Spec	Value
Rated Capacity	1.2 yd³ 0.9 m³
Dump Height	97 in 2469 mm
Maximum Material Density	3031 lb/yd³ 1737 kg/m³
Bucket Width	80 in 2035 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Multi Purpose Bucket

Spec	Value
Rated Capacity	1 yd³ 0.8 m³
Dump Height	85 in 2433 mm
Maximum Material Density	3460 lb/yd³ 2053 kg/m³
Bucket Width	74 in 1880 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Light Material Bucket

Spec	Value
Rated Capacity	1.6 yd³ 1.25 m³
Dump Height	85 in 2388 mm
Maximum Material Density	2363 lb/yd³ 1402 kg/m³
Bucket Width	82 in 2080 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Standard Equipment

LOADER

Return to dig work tool positioner
Adjustable implement modulation

TRANSMISSION/HYDRAULICS

Adjustable speed control (creeper control)
Rimpull control
Electronic throttle lock
Adjustable Hystat response settings
Ride control
18° frame oscillation, 78° articulation
Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
Transmission inching function
Hydrostatic drive
Work tool quick coupler
Proportional auxiliary hydraulic circuit
Loader arm float function
Connect under pressure hydraulic quick connector
Parallel lift Z-bar loader
Demand based cooling fan

ENGINE

Precleaner for engine air filter
Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine
Two stage air cleaner with visual indicator
Cat extended life coolant
Lockable engine compartments
Easy quick release fuel filter/water separator
Engine oil drain valve (non spill eco drain)
Closed circuit breather
Eco Mode

ELECTRICAL

Magnetic rotating beacon
Work tool wiring harness
Working lights, two front and two rear
Cab mounted fuse panel
Battery disconnect switch
Heavy duty battery, 12V
Engine cold starter aid
Alternator 90 amp
Service point connector for electronic diagnostics (Electronic Technician™)
Reverse alarm

GENERAL

E-coat paint primer
Pressure test points
Recovery hitch and pin
Scheduled Oil Sampling S·O·SSM ports

OPERATOR ENVIRONMENT

Adjustable steering column
Air conditioning
Heater with window, side and feet vents
Heated rear window
Radio/CD/MP3/WMA/AUX
Two doors with sliding window
Wiper/washer, front and rear
Cabin light
Pressurized cab
Cup holder
Sun visor
ROPS and FOPS certified canopy/cab
Adjustable arm rest
Retractable seat belt
Auxiliary power sockets
Coat hook
On board digital display cluster
Sound suppression
Multifunction joystick with direction control
Two external knock back mirrors
Warning indicators for major systems
Easy clean cab floor
Lockable storage box
Adjustable internal mirror
Operator station on isolation mounts
Digital service hour meter
Gauges: fuel hydraulic temp, coolant temp, speedometer
Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
Suspended brake/accelerator pedals
Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat
