Caterpillar

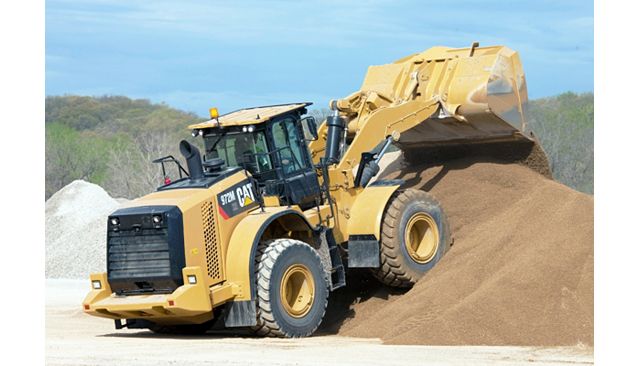

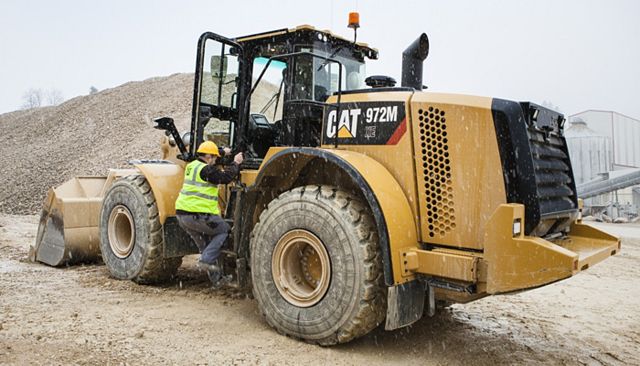

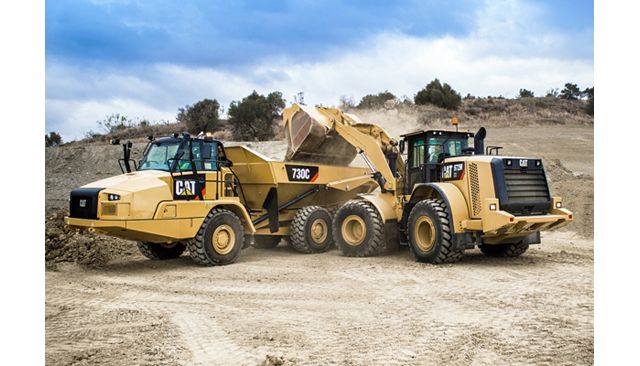

972M XE Wheel Loader | Front Loader
Net Power – ISO 9249
311 HP
232 kW
Operating Weight
54871 lb
24896 kg
Bucket Capacities
3.20-9.94 m³ (4.19-13.00 yd³)
3.20-9.94 m³ (4.19-13.00 yd³)
Overview
The Cat® 972M XE Wheel Loader is the class leader in fuel efficiency and offers significantly lower long-term costs. This machine meets emission standards and is designed to improve fuel economy without interrupting performance. The reliability, durability, and versatility results in a machine that is better built to meet your needs.
Media
Photos
Videos
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any of the products.
Interior
360° Interior View. Double click on the image to zoom in on any of the products.
Features
ACHIEVE GREATER PRODUCTIVITY
PROVEN RELIABILITY
LONG TERM VALUE AND DURABILITY
TECHNOLOGY THAT GETS WORK DONE
SAFELY HOME EVERY DAY
SAVE ON SERVICE AND MAINTENANCE
DESIGNED FOR OPERATORS
PURPOSE BUILT SPECIALTY MODELS
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Net Power – ISO 9249 | 311 HP 232 kW |
| Emissions | Tier 4/Stage IV Tier 4/Stage IV |
| Maximum Net Power – 1,600 rpm – SAE J1349 – Metric | 315 HP 232 kW |
| Displacement | 568 in³ 9.3 l |
| Maximum Net Power – 1,600 rpm – SAE J1349 | 311 HP 232 kW |
| Engine Model | Cat C9.3 Cat C9.3 |
| Peak Gross Torque – 1,200 rpm – SAE J1995 | 1275 ft·lbf 1728 N·m |
| Maximum Net Power – 1,600 rpm – ISO 9249 | 311 HP 232 kW |
| Peak Gross Torque – 1,200 rpm – ISO 14396 | 1260 ft·lbf 1708 N·m |
| Maximum Net Power – 1,600 rpm – ISO 9249 – Metric | 315 HP 232 kW |
| Maximum Net Torque – 1,200 rpm | 1193 ft·lbf 1618 N·m |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 54871 lb 24896 kg |
| Note | Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 4.8 m³ (6.28 yd³) general purpose bucket with BOCE. Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 4.8 m³ (6.28 yd³) general purpose bucket with BOCE. |
Buckets
| Spec | Value |
|---|---|
| Bucket Capacities | 3.20-9.94 m³ (4.19-13.00 yd³) 3.20-9.94 m³ (4.19-13.00 yd³) |
Operating Specifications
| Spec | Value |
|---|---|
| Static Tipping Load – Full 37° Turn – With Tire Deflection | 35626 lb 16164 kg |
| Breakout Force | 44075 lbf 196 kN |
| Static Tipping Load – Full 37° Turn – No Tire Deflection | 38396 lb 17421 kg |
| Note (1) | For a machine configuration as defined under "Weight". For a machine configuration as defined under "Weight". |
| Note (2) | Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
Transmission - Virtual Gears
| Spec | Value |
|---|---|
| Reverse – 3 | 17.1 mile/h 28 km/h |
| Forward – 1 | 4.1 mile/h 6.7 km/h |
| Forward – 2 | 7.7 mile/h 12.6 km/h |
| Reverse – 2 | 7.7 mile/h 12.6 km/h |
| Forward – 3 | 13.5 mile/h 22.1 km/h |
| Forward – 4 | 24.5 mile/h 39.5 km/h |
| Reverse – 1 | 4.1 mile/h 6.7 km/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius. |
Hydraulic System
| Spec | Value |
|---|---|
| Implement System – Maximum Operating Pressure | 4496 psi 31000 kPa |
| Hydraulic Cycle Time – Total | 11 s 11 s |
| Implement System – Maximum Pump Output at 1,600 rpm | 102 gal/min 385 l/min |
| Implement Pump Type | Variable Displacement Piston Variable Displacement Piston |
Service Refill Capacities
| Spec | Value |
|---|---|
| Differential – Final Drives – Front | 15.1 gal (US) 57 l |
| Cooling System | 19 gal (US) 71.6 l |
| Crankcase | 6.5 gal (US) 24.5 l |
| DEF Tank | 4.4 gal (US) 16.8 l |
| Transmission | 16.6 gal (US) 63 l |
| Differential – Final Drives – Rear | 15.1 gal (US) 57 l |
| Fuel Tank | 79.8 gal (US) 302 l |
| Hydraulic Tank | 33 gal (US) 125 l |
Sound
| Spec | Value |
|---|---|
| Note (2) | **For machines in European Union countries and in countries that adopt the EU Directives. **For machines in European Union countries and in countries that adopt the EU Directives. |
| With Cooling Fan Speed at Maximum Value – Exterior Sound Power Level (ISO 6395:2008) | 107 dB(A) 107 dB(A) |
| Note (1) | *Distance of 15 m (49.2 ft), moving forward in second gear ratio. *Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| With Cooling Fan Speed at Maximum Value – Exterior Sound Pressure Level (SAE J88:2013) | 76 dB(A)* 76 dB(A)* |
| With Cooling Fan Speed at 70% of Maximum Value – Operator Sound Pressure Level (ISO 6396:2008)** | 67 dB(A) 67 dB(A) |
| With Cooling Fan Speed at 70% of Maximum Value – Exterior Sound Power Level (ISO 6395:2008)** | 105 LWA*** 105 LWA*** |
| Note (3) | ***European Union Directive 2000/14/EC as amended by 2005/88/EC. ***European Union Directive 2000/14/EC as amended by 2005/88/EC. |
| With Cooling Fan Speed at Maximum Value – Operator Sound Pressure Level (ISO 6396:2008) | 67 dB(A) 67 dB(A) |
Dimensions - High Lift
| Spec | Value |
|---|---|
| Hinge Pin Height at Maximum Lift | 15.67 ft 4793 mm |
| Centerline of Rear Axle to Hitch | 5.75 ft 1775 mm |
| Height – Top of Exhaust Pipe | 11.5 ft 3522 mm |
| Maximum Width over Tires | 9.83 ft 3009 mm |
| Rack Back – Maximum Lift | 71 degrees 71 degrees |
| Ground Clearance | 1.42 ft 434 mm |
| Height – Top of ROPS | 11.75 ft 3587 mm |
| Tread Width | 7.25 ft 2230 mm |
| Overall Length – Without Bucket | 26.58 ft 8109 mm |
| Lift Arm Clearance at Maximum Lift | 13.58 ft 4140 mm |
| Height – Top of Hood | 9.17 ft 2818 mm |
| Wheel Base | 11.58 ft 3550 mm |
| Rack Back – Carry Height | 49 degrees 49 degrees |
| Centerline of Rear Axle to Edge of Counterweight | 8.17 ft 2500 mm |
| Hinge Pin Height at Carry | 2.5 ft 778 mm |
| Rack Back at Ground | 39 degrees 39 degrees |
| Note | All dimensions are approximate and based on L3 XHA2 tires. All dimensions are approximate and based on L3 XHA2 tires. |
Dimensions - Standard Lift
| Spec | Value |
|---|---|
| Centerline of Rear Axle to Edge of Counterweight | 8.17 ft 2500 mm |
| Rack Back – Maximum Lift | 56 degrees 56 degrees |
| Centerline of Rear Axle to Hitch | 5.75 ft 1775 mm |
| Overall Length – Without Bucket | 25.5 ft 7774 mm |
| Wheel Base | 11.58 ft 3550 mm |
| Hinge Pin Height at Carry | 2.17 ft 680 mm |
| Height – Top of Exhaust Pipe | 11.5 ft 3522 mm |
| Ground Clearance | 1.42 ft 434 mm |
| Rack Back – Carry Height | 50 degrees 50 degrees |
| Height – Top of Hood | 9.17 ft 2818 mm |
| Tread Width | 7.25 ft 2230 mm |
| Lift Arm Clearance at Maximum Lift | 12.58 ft 3843 mm |
| Rack Back at Ground | 41 degrees 41 degrees |
| Hinge Pin Height at Maximum Lift | 14.58 ft 4458 mm |
| Height – Top of ROPS | 11.75 ft 3587 mm |
| Maximum Width over Tires | 9.83 ft 3009 mm |
| Note | All dimensions are approximate and based on L3 XHA2 tires. All dimensions are approximate and based on L3 XHA2 tires. |
Bucket Capacities
| Spec | Value |
|---|---|
| Bucket Capacities | 3.20-9.94 m³ (4.19-13.00 yd³) 3.20-9.94 m³ (4.19-13.00 yd³) |
Engine - Tier 4 Final/Stage IV
| Spec | Value |
|---|---|
| Emissions | Tier 4/Stage IV Tier 4/Stage IV |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Engine, Cat 9.3 meets Stage IV emission standards
- Cat Clean Emissions Module (CEM) with Diesel Exhaust Fluid (DEF) tank and pump
- Fuel priming pump (electric)
- Fuel/water separator
- Precleaner, engine air intake
- Cat continuously variable transmission
- Axles, manually actuated differential lock front axle, open differential rear axle
- Axles, ecology drains
- Brakes, full hydraulic enclosed wet-disc with modulated neutralizer and integrated retarding
- Brake wear indicators
- Parking brake, disc and caliper
- Right pedal lock, maximum rimpull control and machine speed limit in the cab
- Fan, radiator, on demand
HYDRAULICS
- Hydraulic system, load sensing
- Steering, load sensing
- Ride control, 2V
- Remote diagnostic pressure taps
- Hoses, Cat XT™
- Couplings, Cat O-ring face seal
- Hydraulic oil cooler (swing out)
- Oil sampling valves
ELECTRICAL AND LIGHTING
- Batteries (2), maintenance free 1,400 CCA
- Ignition key; start/stop switch
- Starter, electric, heavy duty
- Starting and charging system (24V)
- Lighting system: Four halogen work lights (cab mounted); Two halogen roading lights (with signals); Two halogen rear vision lights (hood mounted); Two rear LED position/stop/turn
- Alarm, back up
- Alternator, 145-amp brushed
- Main disconnnect switch
- Emergency engine shutdown switch
- Receptable start (cables not included)
- Secondary steering
- Speed limiter, adjustable
OPERATOR ENVIRONMENT
- Cab, pressurized and sound suppressed (ROPS/FOPS)
- Viscous mounts
- Multi-function 18 cm color touchscreen display for rear vision camera, clock and machine parameters
- EH controls, SAL (single axis lever) lift and tilt function
- Steering, EH joystick, speed sensing with force feedback
- Radio ready (entertainment) includes antenna, speakrs and converter (12V, 10-amp)
- Air conditioner, heater, and defroster (auto temp and fan)
- EH parking brake
- Beverage holders (2) with storage compartment for cell phone/MP3 player
- Bucket/work tool function lockout
- Coat hook (2)
- Cab air filter
- Ergonomic cab access ladders and handrails
- Horn, electric
- Light, two dome (cab)
- Mirrors, rearview external with integrated spot mirrors
- Post mounted membrane 16 switch keypad
- 2 receptables, 12V
- Seat, Cat Comfort (cloth) air suspension
- Seat belt, 51 mm retractable, with indicator
- Sun visor, front
- Wet-arm wipers/washer front and rear, intermittent front wiper
- Window, sliding (left and right sides)
- Cab tie-off
COMPUTERIZED MONITORING SYSTEM
- With following gauges: Speedometer/tachometer; Digital gear range indicator; Diesel Exhaust Fluid (DEF) level; Temperature: engine coolant, hydraulic oil, transmission oil; Fuel level
- With following warning indicators: Regeneration; Temperature: axle oil, engine intake manifold; Pressure: engine oil, fuel pressure hi/low, primary steering oil, service brake oil; Battery voltage hi/low; Engine air filter restriction; Hydraulic oil filter restriction; Hydraulic oil low; Parking brake; DEF low level; Transmission filter bypass
CAT CONNECT TECHNOLOGIES
- Link technologies: Product Link
- Detect technologies: rear vision camera
LINKAGE
- Linkage, Z-bar, cast crosstube/tilt lever
- Kickout, lift and tilt, automatic
FLUIDS
- Premixed extended life coolant with freeze protection to -34° C
OTHER STANDARD EQUIPMENT
- Hood, non-metallic power tilting
- Service centers (electrical and hydraulic)
- Platform, window washing
- Auto idle shutdown
- Fenders, steel front with mud-flap/rear with extension
- Ecology drains for engine, transmission, and hydraulics
- Ether aid ready
- Grill, airborne debris
- Filters: fuel, engine air, engine oil, hydraulic oil, transmission
- Fuel cooler
- Grease zerks
- Hitch, drawbar with pin
- Precleaner rain cap
- Sight gauges: engine coolant, hydraulic oil, and transmissin oil level
- Toolbox
- Vandlism protection caplocks
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Axles – Automatic front/rear differential locks; Axle oil cooler; Extreme temperature seals; Seal guards
- Fan, VPF (variable pitch fan), automatic and manual control
- Radiator, high debris with wider fin spacing
HYDRAULICS
- 3rd function with Ride Control
- 4th function with Ride Control
ELECTRICAL AND LIGHTING
- Four additional halogen cab mounted work lights or;
- Two additional auxiliary front HI LED and two additional auxiliary rear LED cab mounted work lights, two LED work lights in the radiator grill, LED front turn signals, replacement of the standard four halogen cab mounted work lights with four LED work lights, LED roading lights
- Speed limiter – 20 km/h
- External seat belt indicator light
- Reversing strobes
OPERATOR ENVIRONMENT
- Door, remote opening system
- Cover, HVAC metallic
- EH controls, SAL 3rd function – Additional roller switch for 4th function
- EH controls, joystick lift and tilt – Additional integrated roller switches for 3rd and 4th functions
- Filter, carbon fresh air
- Mirrors, heated rearview external with integrated spot mirrors
- Precleaner, HVAC
- Precleaner, HVAC (RESPA)
- Radio, AM/FM/CD/USB/MP3 Bluetooth™
- Seat, heated, air suspension
- Seat belt, 4 point harness, with indicator
- Seat, deluxe with leather inserts and headrest, heated and ventilated, air-suspended, adjustable lumbar support
- Roof, metallic
- Sun visor, rear
- Windows, rubber mounted
- Windows, with front guard
- Windows, with heavy duty front guard
- Windows, with full guards front, rear and sides
- Cat seat cover, removable
CAT CONNECT TECHNOLOGIES
- Link technologies: VIMS™
- Payload technologies: Cat Production Measurement 2.0 (CPM); Printer, Cat Production Measurement; Aggregate Autodig
- Advanced Productivity subscription
- Detect technologies: Cat Rear Object Detection
- Machine Security System
LINKAGE
- High lift
- Extended capacity
- Quick coupler ready
FLUIDS
- Premixed extended life coolant with freeze protection to -50° C
- Bio-degradable oil, Cat HYDO™
STARTERS, BATTERIES, AND ALTERNATORS
- Cold start – 240V
WORK TOOLS
- Performance Series buckets
- Fusion quick coupler
- Forks, pallet
- Forks, logging
OTHER OPTIONAL EQUIPMENT
- Cat Autolube System
- Fenders, roading
- Guard, power train
- Guard, rear radiator grill
- Oil change, high speed engine
- Precleaner, turbine
- Precleaner, trash
- Wheel clocks
OPTIONAL APPLICATION SPECIFIC CONFIGURATIONS
- Aggregate Handler
PURPOSE BUILT SPECIALTY MODELS
- Industrial and Waste Handler
- Steel Mill
- Corrosion Resistance
Related Products
Fusion™ Coupler - Loader
Pallet Forks
Construction Forks
Material Handling Arms
966/972 Fusion Coupler
1524 mm (60 in) Fusion
1830 mm (72 in)
1219mm (48 in)
4585mm (180in) Mat’l handing Arm, Fusion™
