Caterpillar

A23

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Media

Photos

Videos

360° View

Exterior

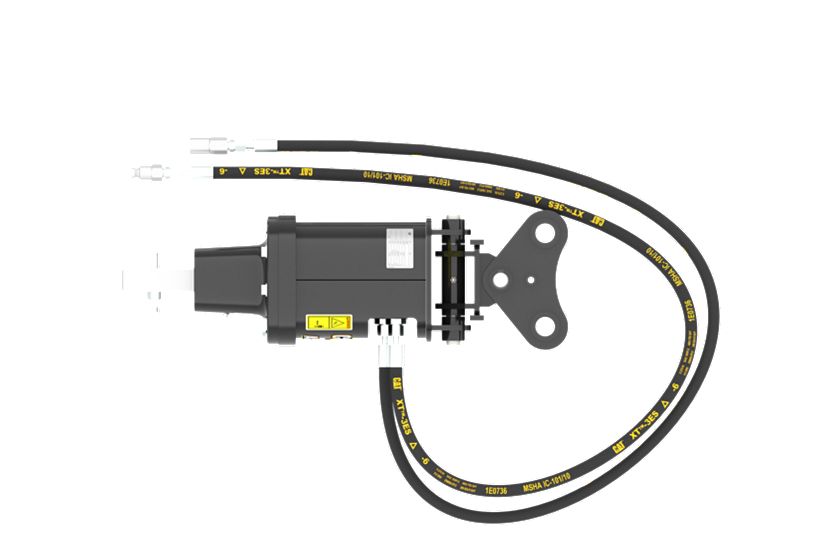

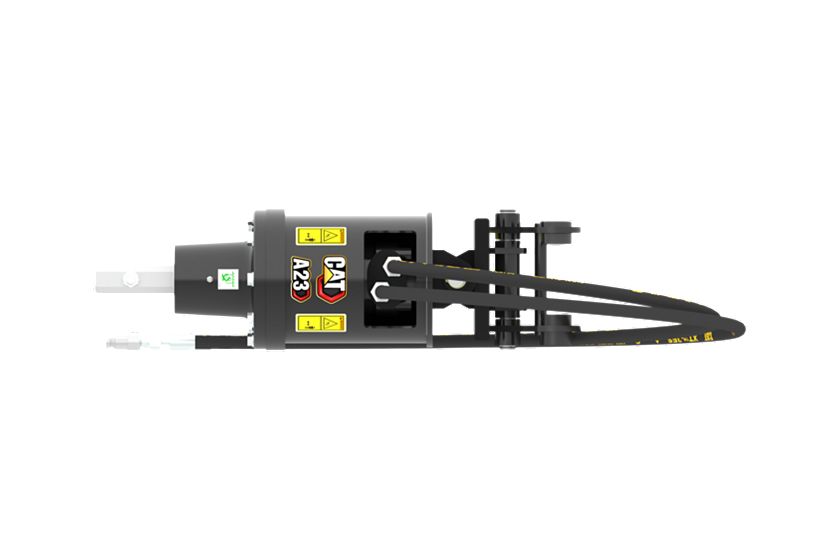

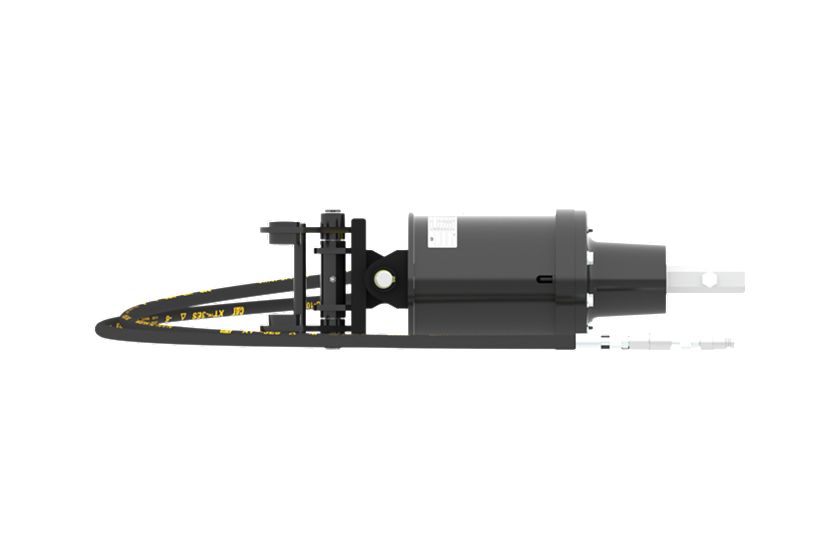

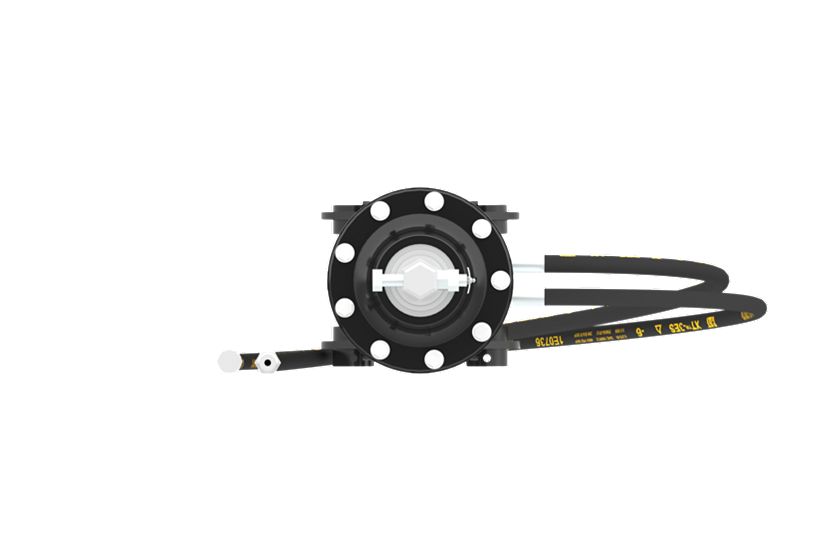

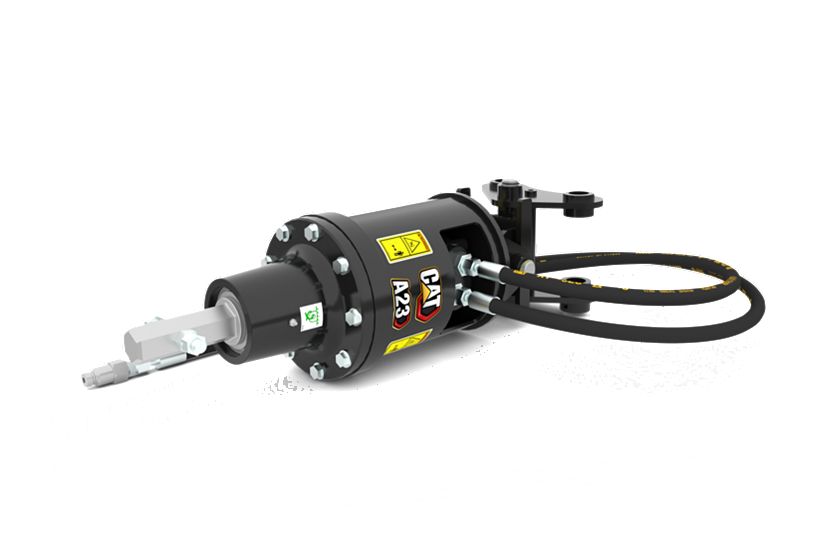

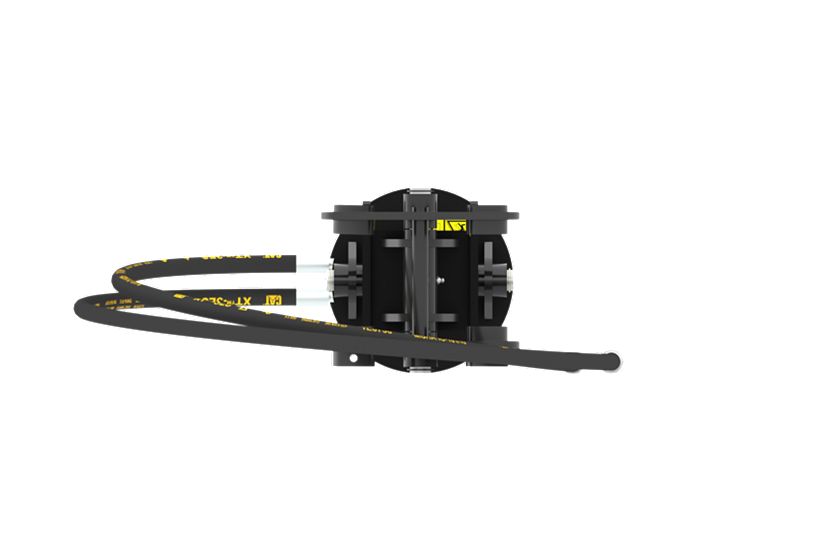

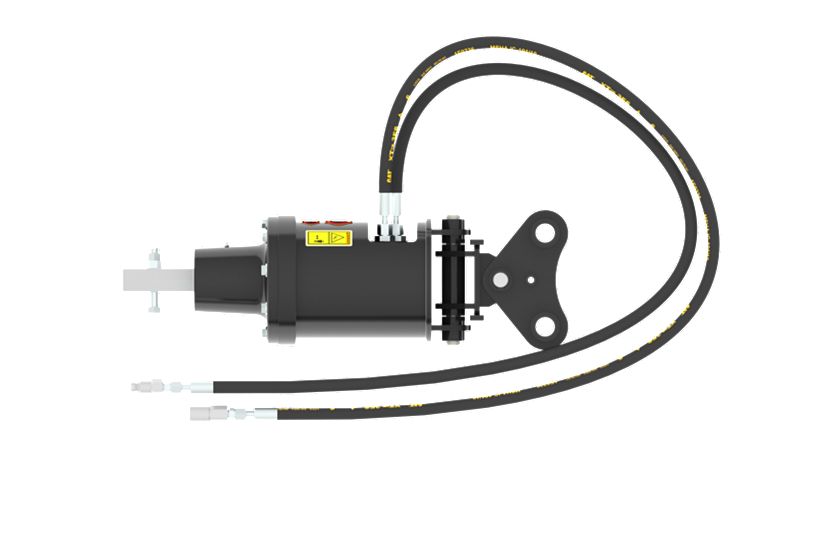

Model shown represents features on all Cat® Augers except where indicated.

Features

Details

Specifications

Spec Value
Drive Shaft Torque at Maximum Pressure 1699.3 lb/ft 2304 N·m
Drive Method Gerotor Motor - Direct Drive Gerotor Motor - Direct Drive
Mounting Bracket Design 3 Ton Mini Excavator Pin On 3 Ton Mini Excavator Pin On
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 42-83 L/min (11-22 gpm) 42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Overall Width – With Bracket 11.8 in 300 mm
Overall Length – With Bracket 11.1 in 282 mm
Overall Height 37.7 in 958 mm
Housing Diameter 11 in 280 mm
Swing Range (fore/aft) 70 degrees 70 degrees
Swing Range (L/R) 76 degrees 76 degrees
Weight 264.6 lb 120 kg
Motor Displacement 39 in³ 629 cm³
Bit Speed at Maximum Flow 127 rpm 127 rpm
Hex Output Shaft Size 2 in 51 mm
