Cat

A68 Auger

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Media

Photos

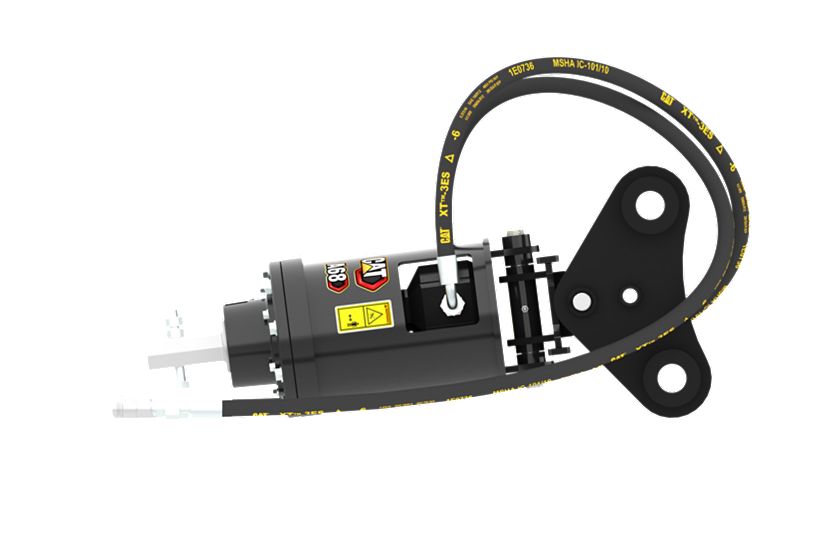

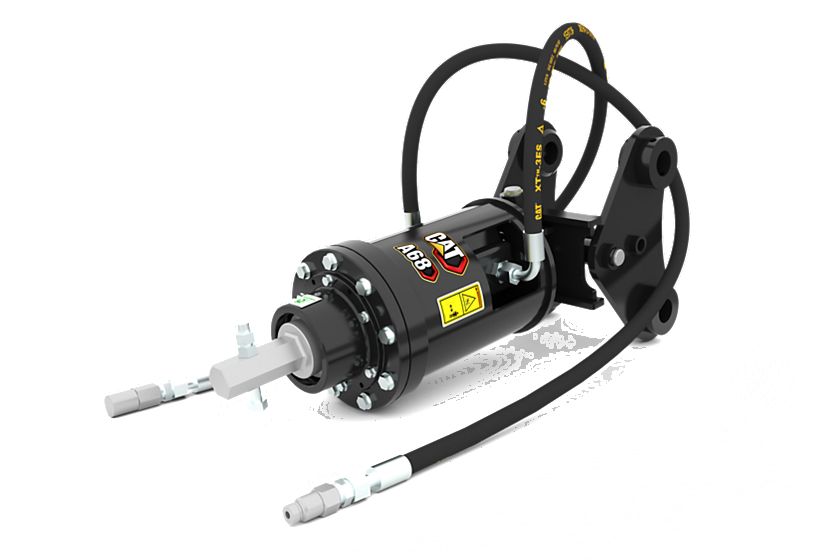

Studio Shot
Studio Shot

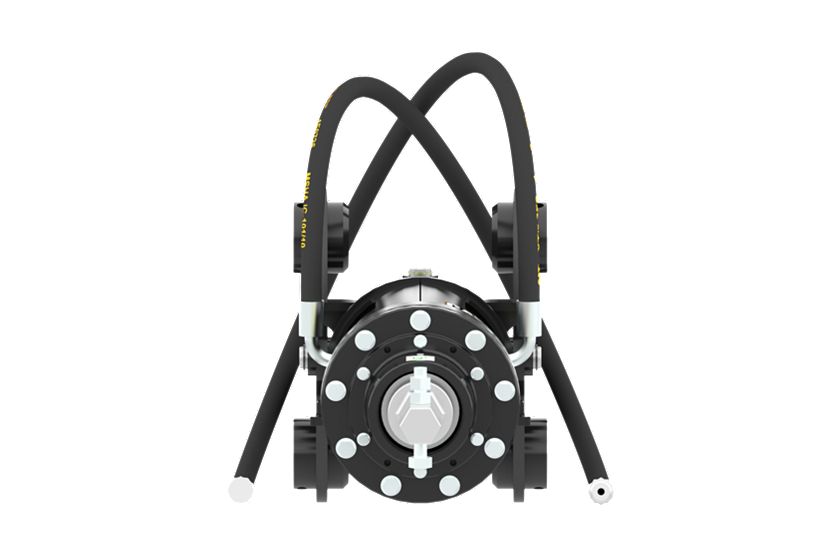

Front View
Front View

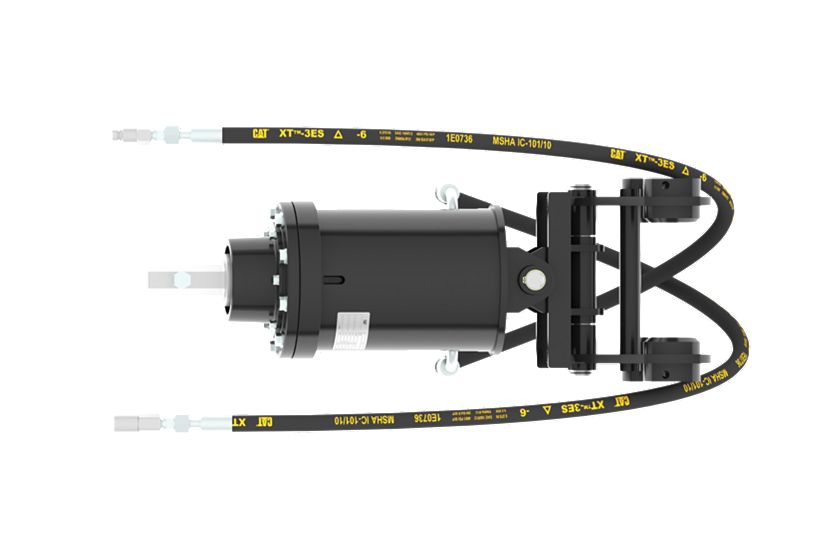

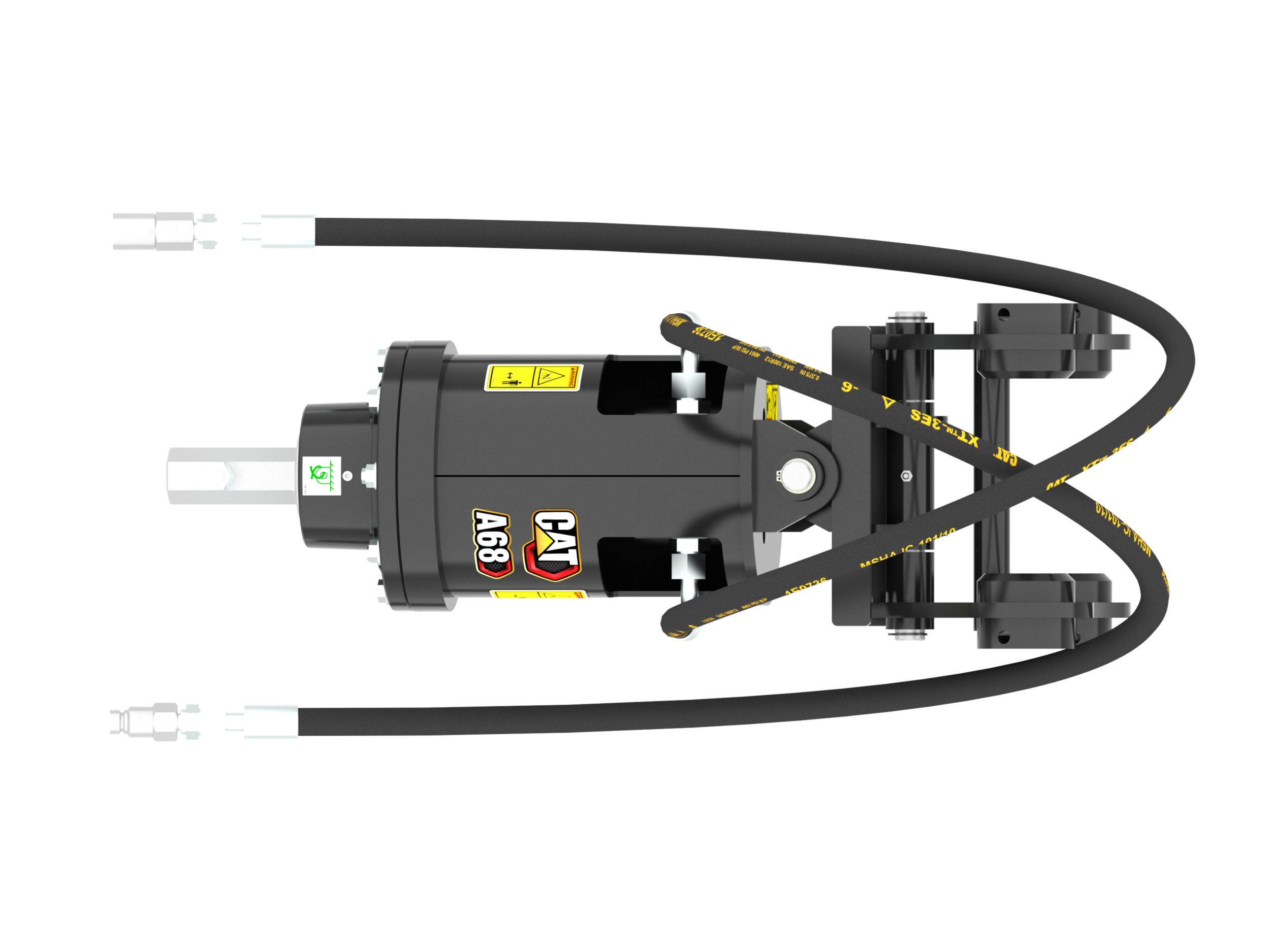

Top View
Top View

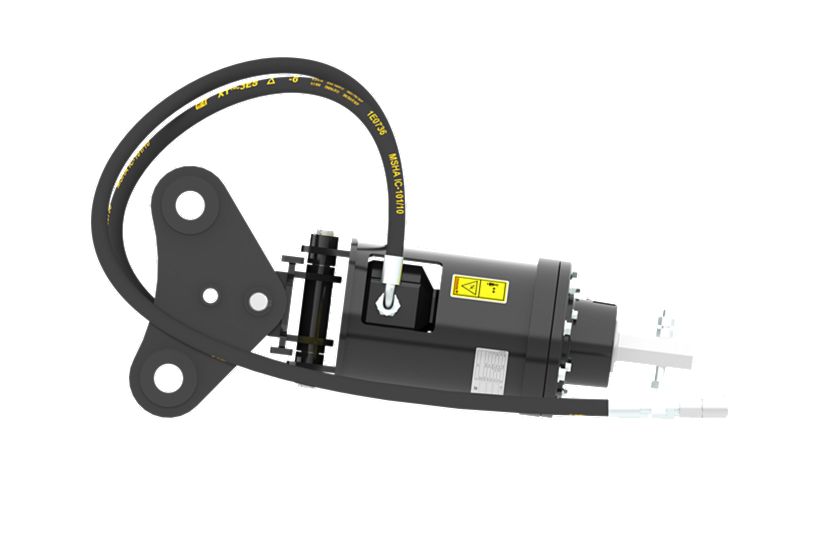

Left View
Left View

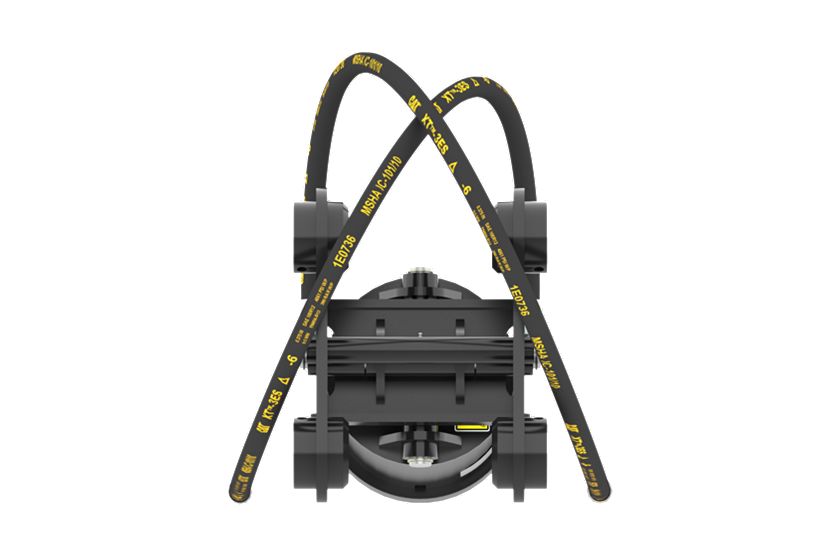

Rear View
Rear View
Bottom View
Bottom View
Right View
Right View

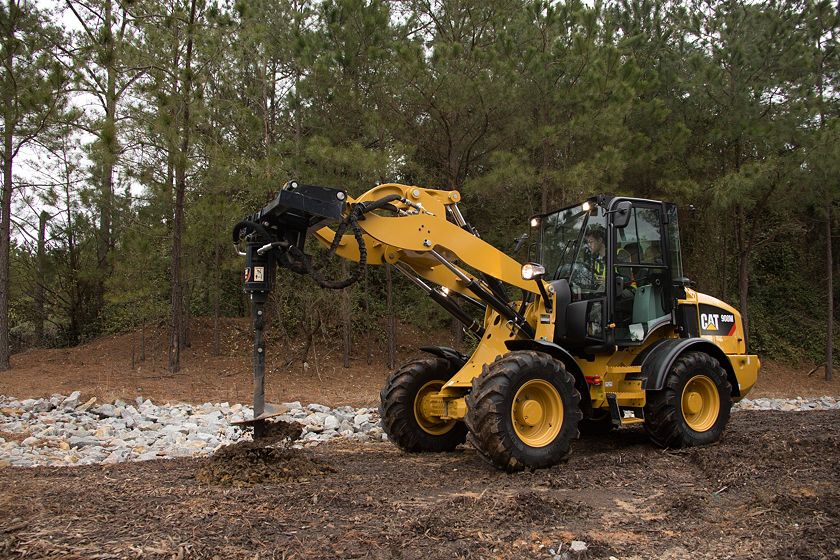

Cat® Auger at Work on a 908M Compact Wheel Loader
Cat® Auger at Work on a 908M Compact Wheel Loader

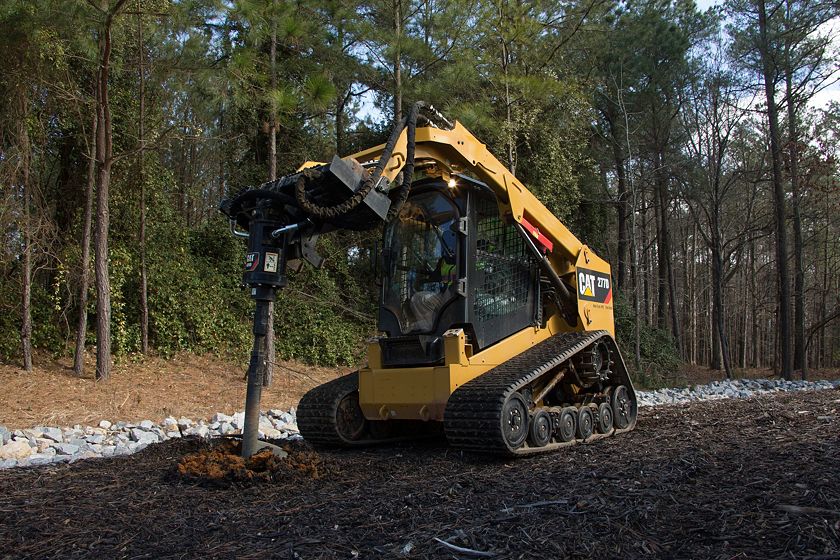

Cat® Auger at Work on a 277D Multi Terrain Loader
Cat® Auger at Work on a 277D Multi Terrain Loader

Videos

Cat® Auger Attachment at Work
Cat® Auger Attachment Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Augers except where indicated.

Documents

Features

Application

Multiple Drive Systems

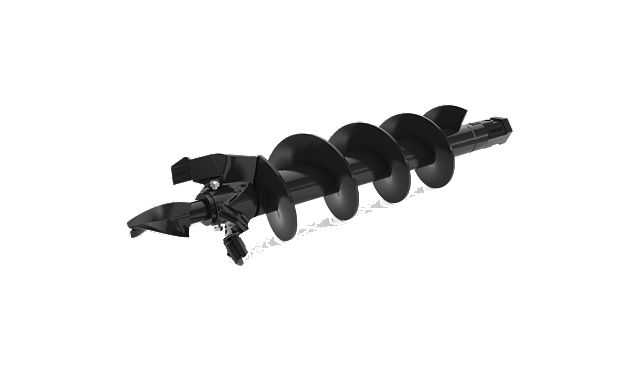

Rugged Bits for Every Application

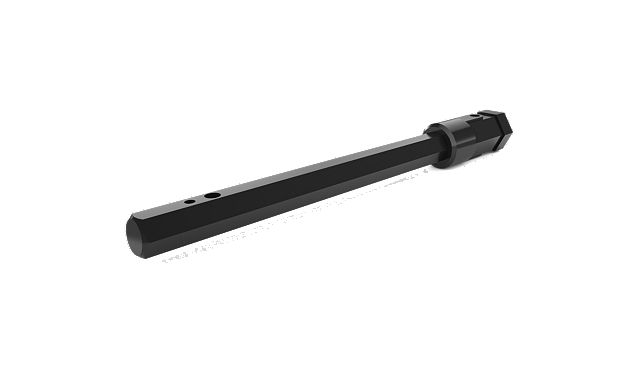

Bit Extensions and Adapters

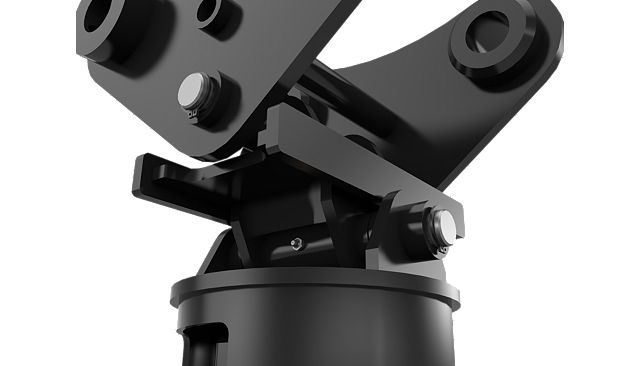

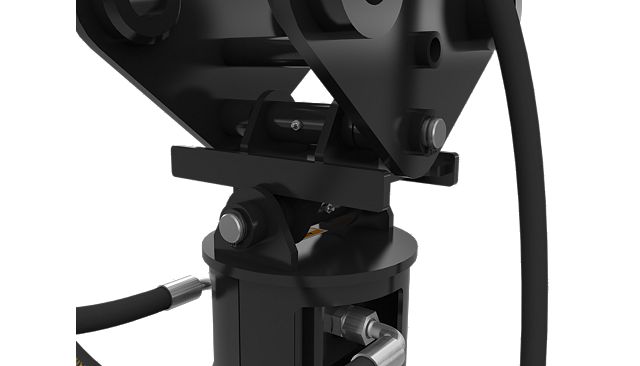

Articulated Joint

Mechanical Swing Stops

Details

Specifications

Spec Value
Drive Shaft Torque at Maximum Pressure 5034.6 lb/ft 6826 N·m
Drive Method Gerotor Motor - Double Planetary Reduction Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design 8 Ton Mini Excavator Pin On 8 Ton Mini Excavator Pin On
Required Hydraulics High Flow XPS High Flow XPS
Optimal Hydraulic Flow 95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure 207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi)
Overall Width – With Bracket 13.9 in 354 mm
Overall Length – With Bracket 17.5 in 445 mm
Overall Height 36.1 in 916 mm
Housing Diameter 11 in 280 mm
Swing Range (fore/aft) 60 degrees 60 degrees
Swing Range (L/R) 76 degrees 76 degrees
Weight 324.1 lb 147 kg
Motor Displacement 2.67 in³ 44 cm³
Bit Speed at Maximum Flow 81 rpm 81 rpm
Hex Output Shaft Size 2 in 51 mm

Optional Equipment

OTHER ATTACHMENTS

  • Rear step, standard
