Cat

0.76 m3 (1.0 yd3) Parallel Lift Pin On General Purpose Bucket With Base Edge

Load, carry, dump and perform general clean-up work.

Media

Photos

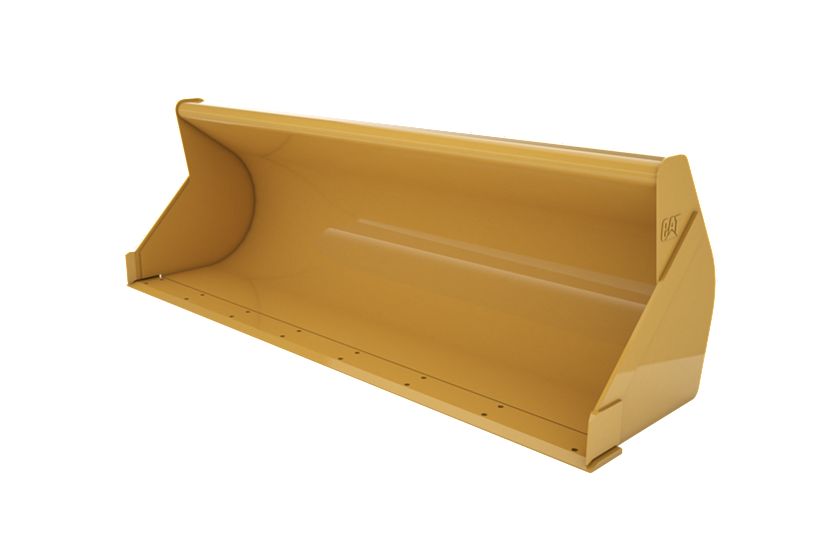

Studio Shot
Studio Shot
Front View
Front View
Top View
Top View
Left View
Left View
Rear View
Rear View
Bottom View
Bottom View
Right View
Right View

Videos

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Features

Application

Bucket Design

Superior Bucket Fill

Ground Engaging Tools

Details

Specifications

Spec Value
Width 89.1 in 2262 mm
Height 29.8 in 758 mm
Weight 776 lb 352 kg
Length 32.1 in 815 mm
Capacity 1 yd³ 0.76 m³
Base Edge Thickness 0.8 in 20 mm
Interface Type Pin On Pin On
