Cat

1.0 m3 (1.3 yd3) Pin On Multi-Purpose Bucket With Bolt-On Cutting Edge

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Media

Photos

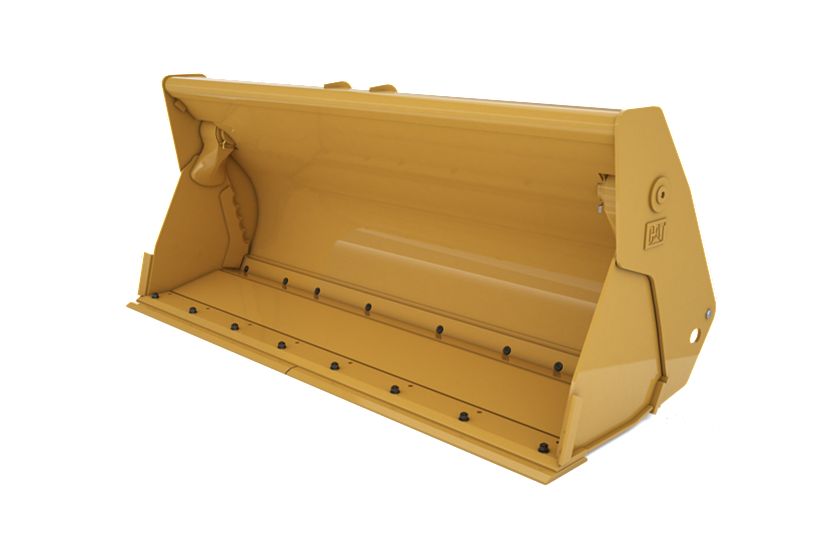

Studio Shot
Studio Shot

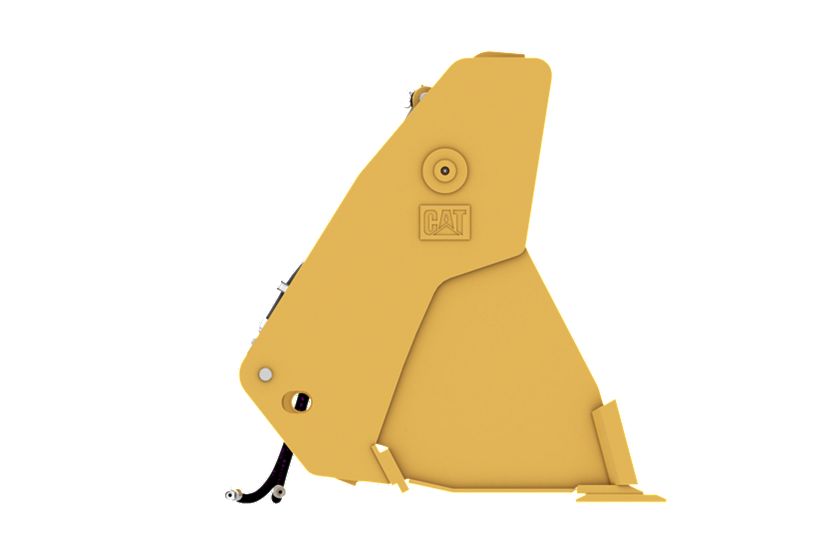

Front View
Front View

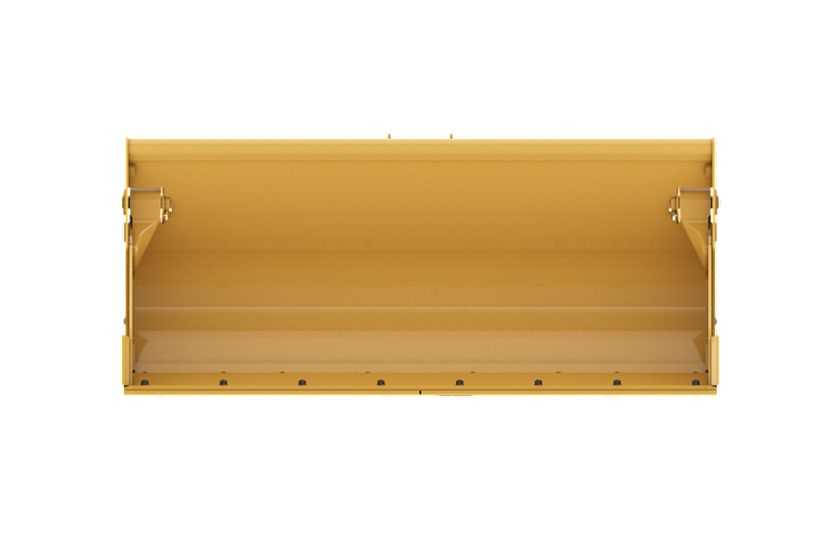

Top View
Top View

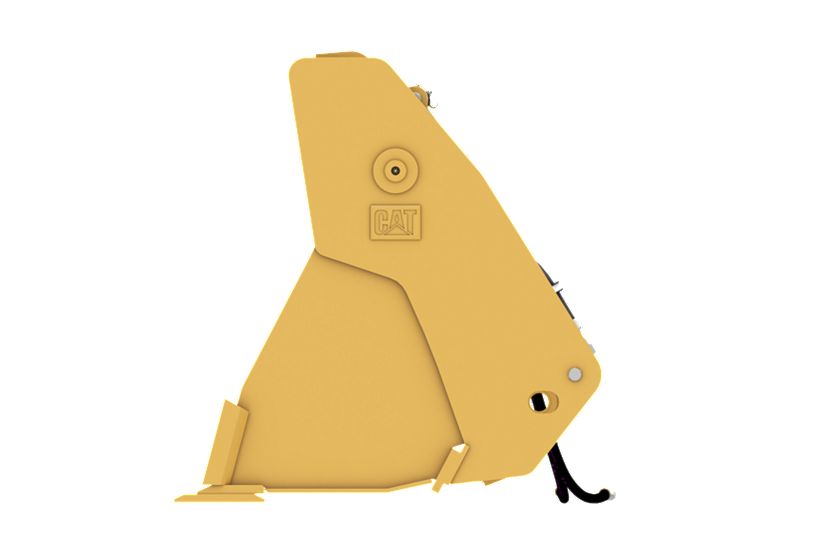

Left View
Left View

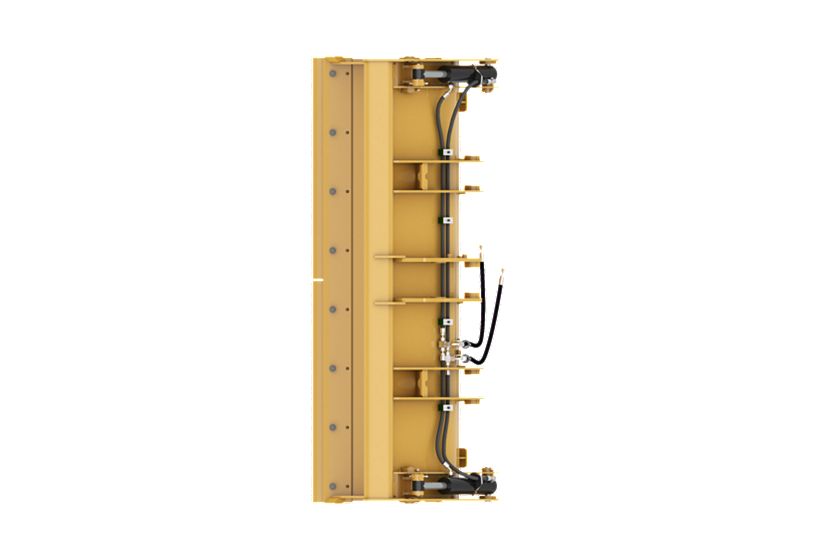

Rear View
Rear View

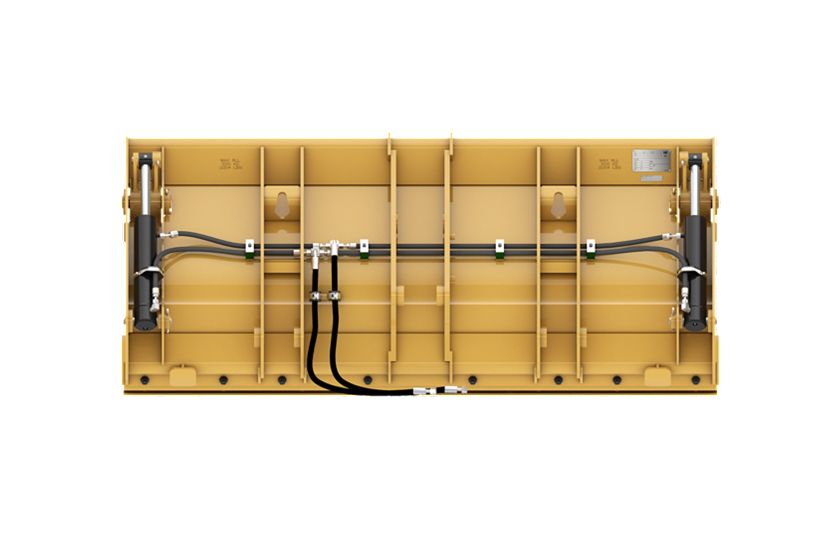

Bottom View
Bottom View

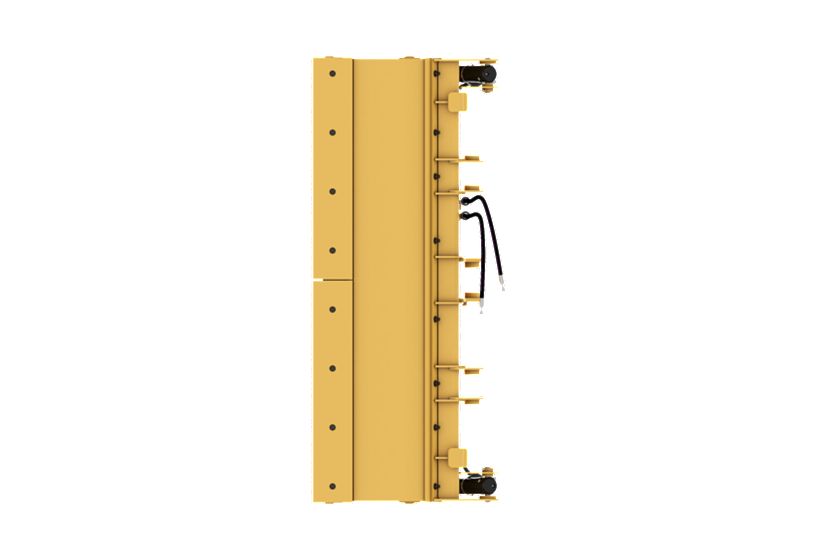

Right View
Right View

Videos

Cat® Multi Purpose Buckets at Work
An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Features

Application

Bucket Design

Ground Engaging Tools

Details

Specifications

Spec Value
Width 89.1 in 2262 mm
Height 39.5 in 1004 mm
Weight 1718.9 lb 779.7 kg
Length 37.5 in 952 mm
Capacity 1.3 yd³ 1 m³
Base Edge Thickness 0.8 in 20 mm
Cutting Edge Thickness 0.7 in 19 mm
Jaw Opening 23.7 in 602 mm
Clam Angle 76 degrees 76 degrees
Interface Type Pin On Pin On
