Cat

1.14 m3 (1.5 yd3) Pin On Multi-Purpose Bucket

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Media

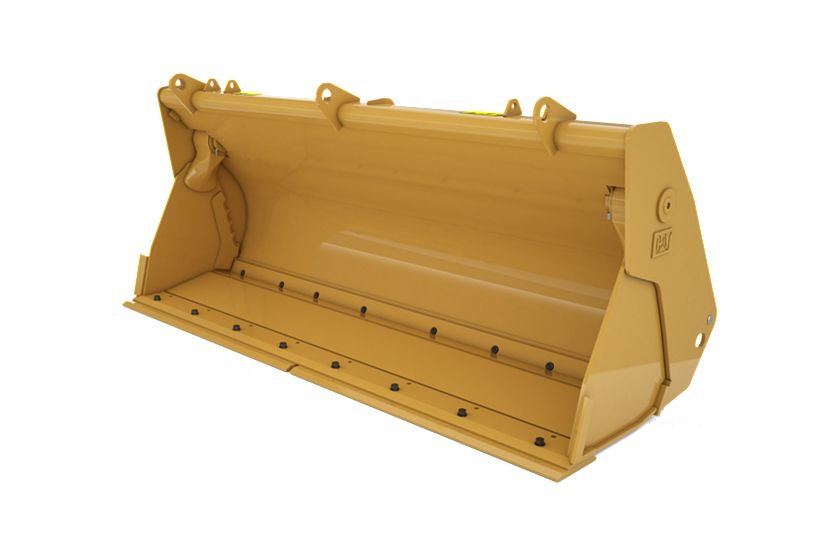

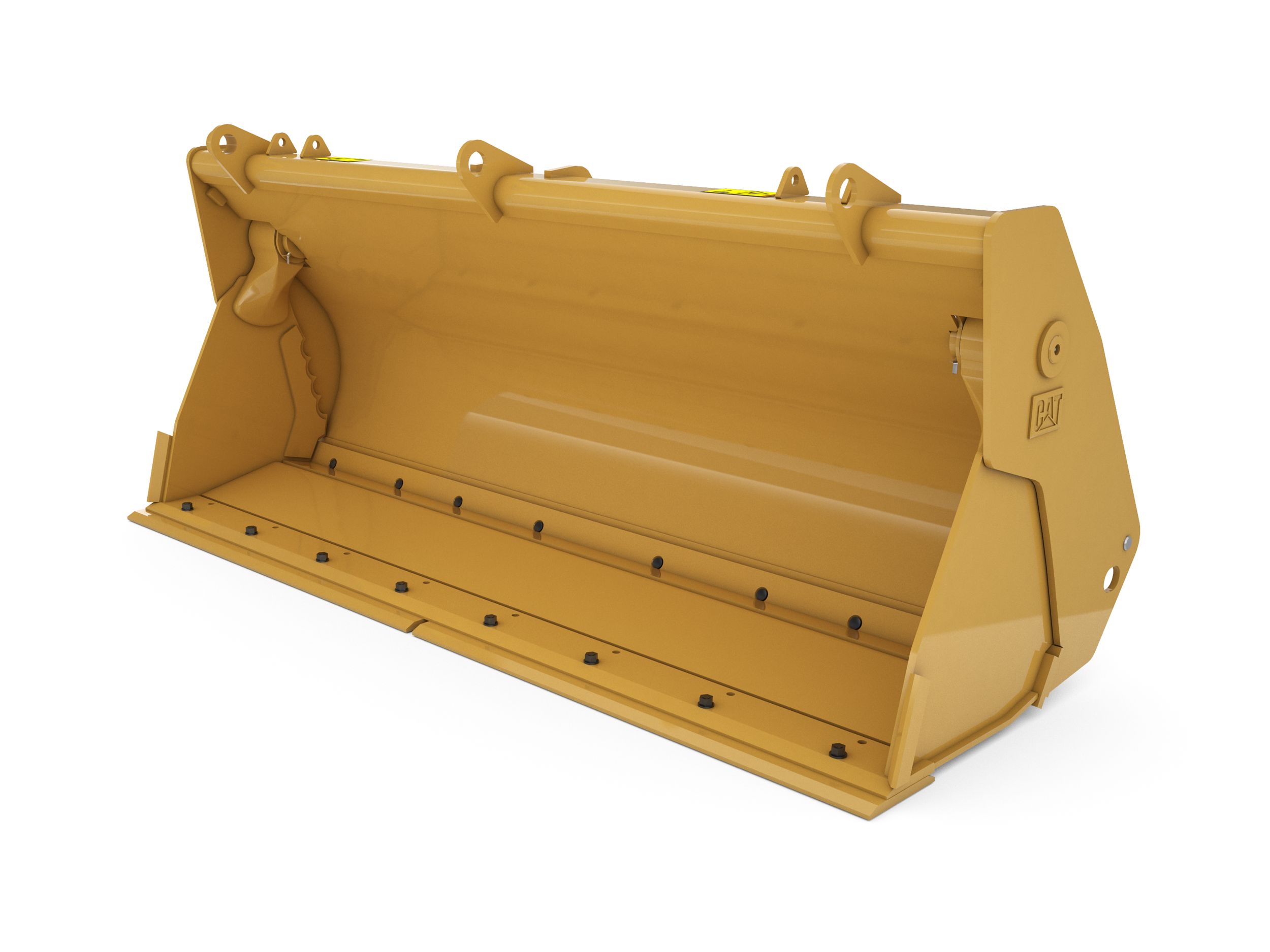

Studio Shot

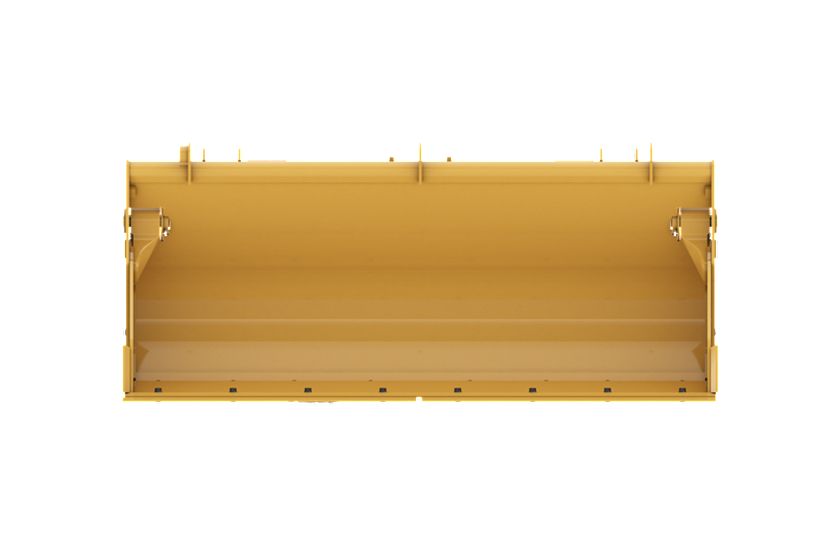

Front View

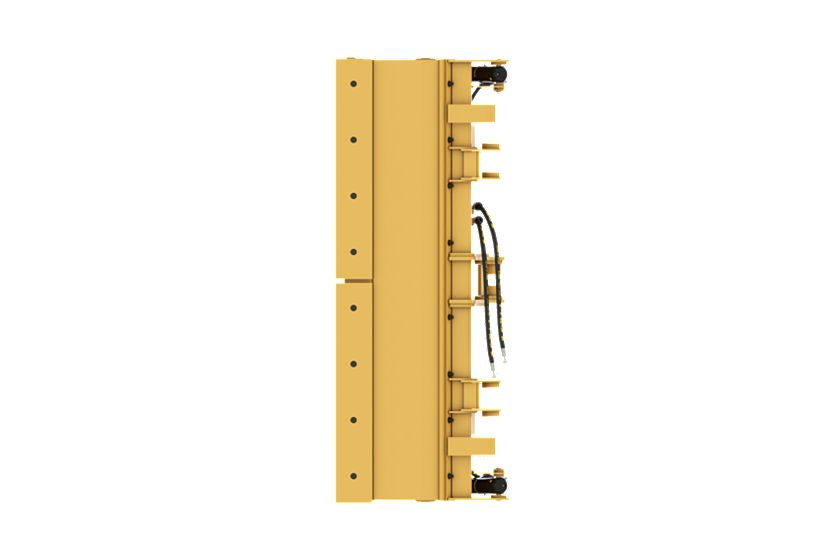

Top View

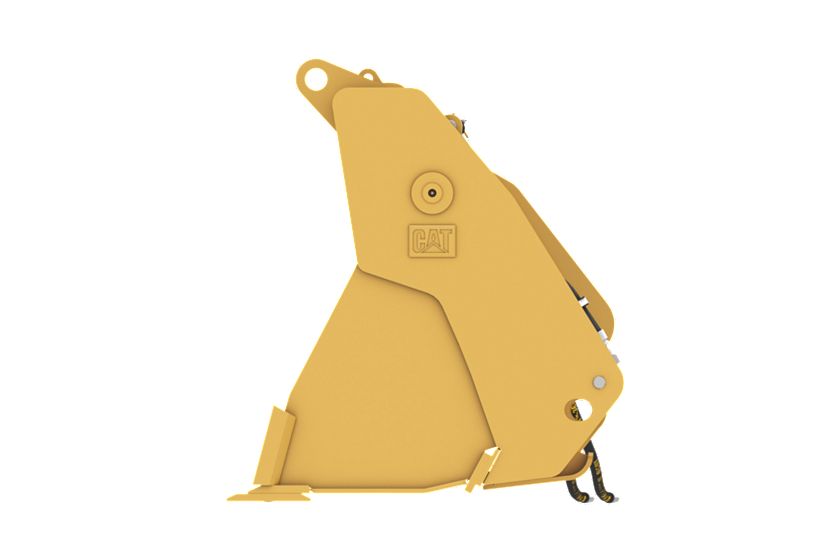

Left View

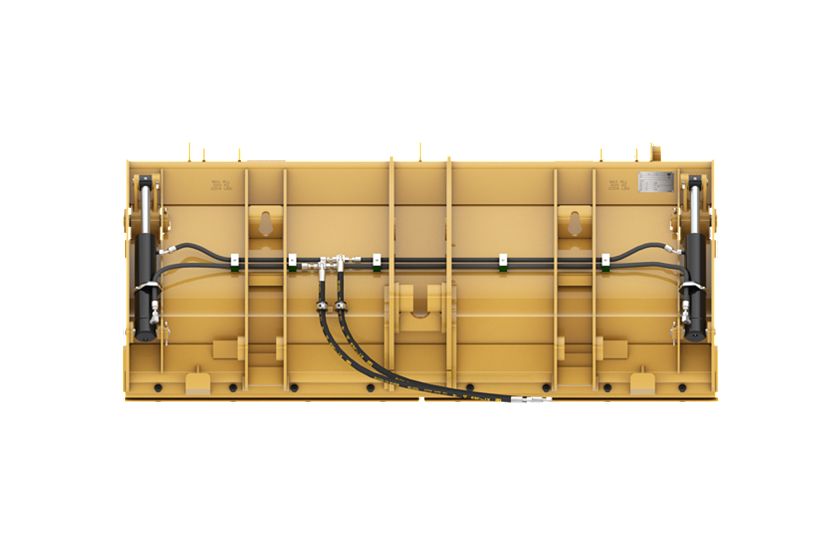

Rear View

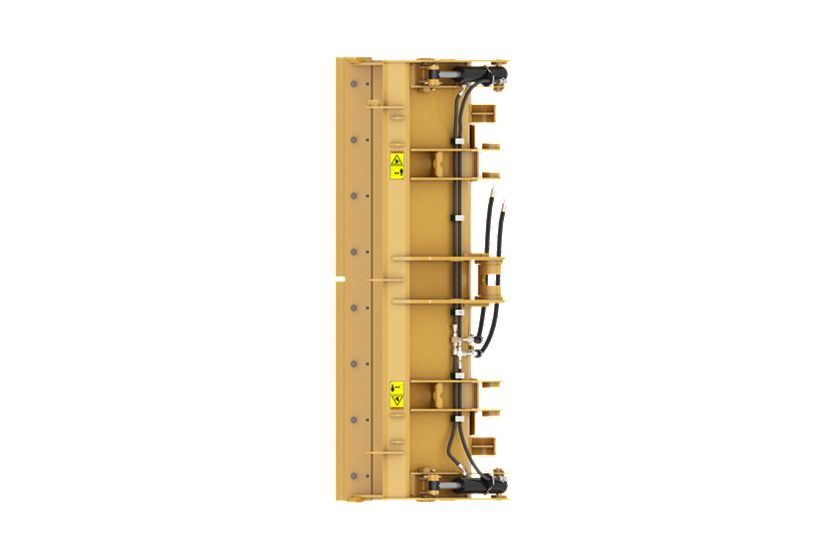

Bottom View

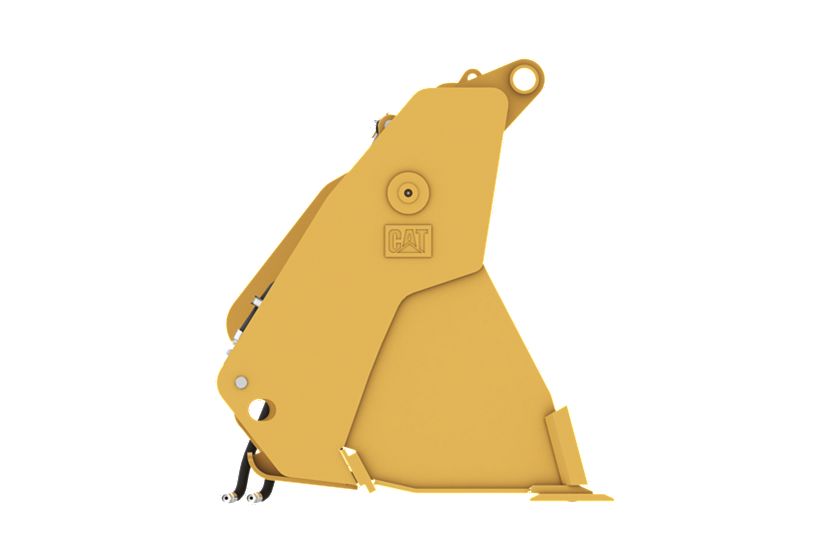

Right View

Cat® Multi Purpose Buckets at Work

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Cat® Backhoes – Front Loader Buckets and Forks Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Name
This field is for validation purposes and should be left unchanged.

Features

Application

Bucket Design

Ground Engaging Tools

Specifications

US Metric

General

Spec	Value
Width	95.5 in 2425 mm
Height	41.7 in 1059 mm
Weight	2104.9 lb 954.79 kg
Length	37.4 in 951 mm
Capacity	1.5 yd³ 1.14 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.7 in 19 mm
Jaw Opening	23.7 in 602 mm
Clam Angle	76 degrees 76 degrees
Interface Type	Pin On Pin On
