Cat

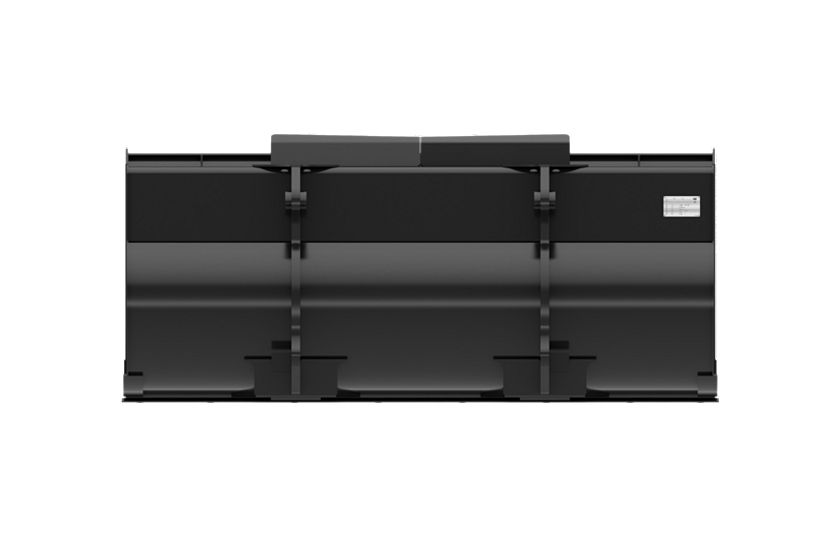

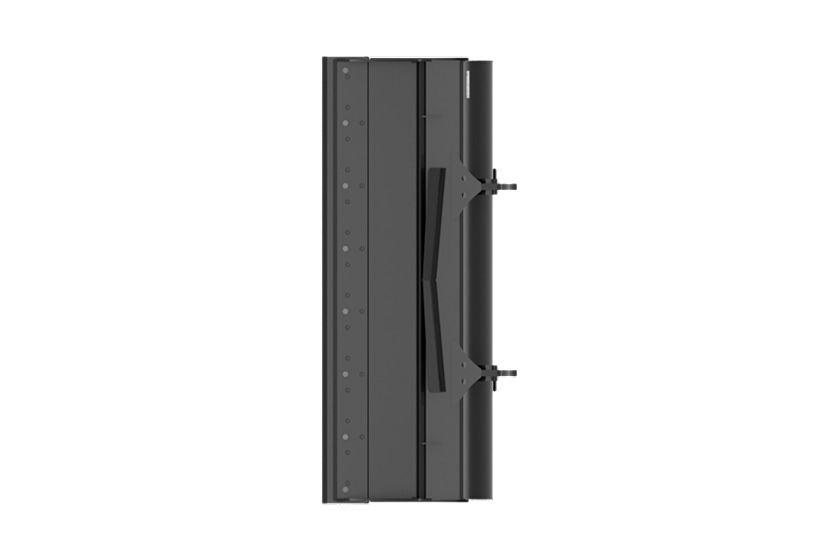

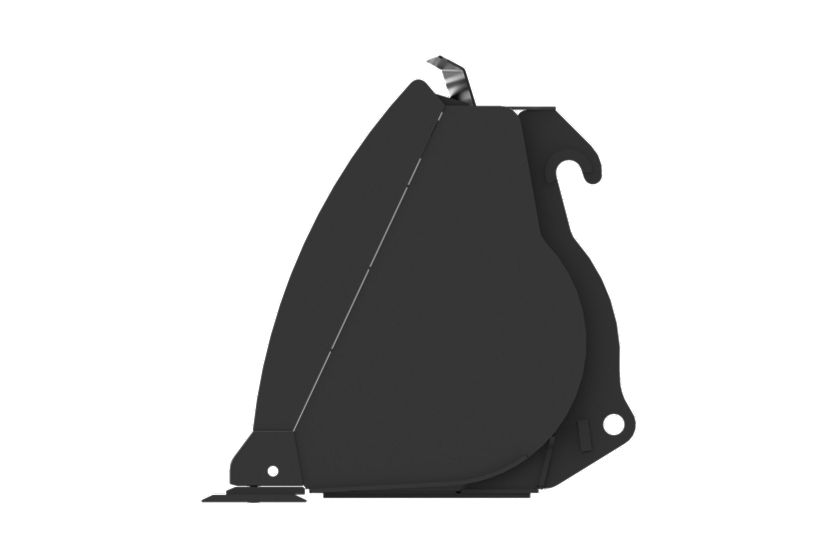

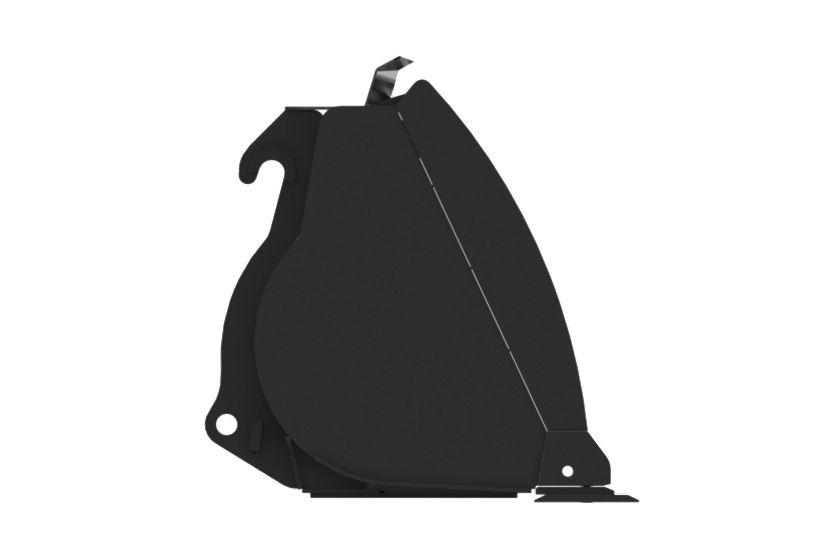

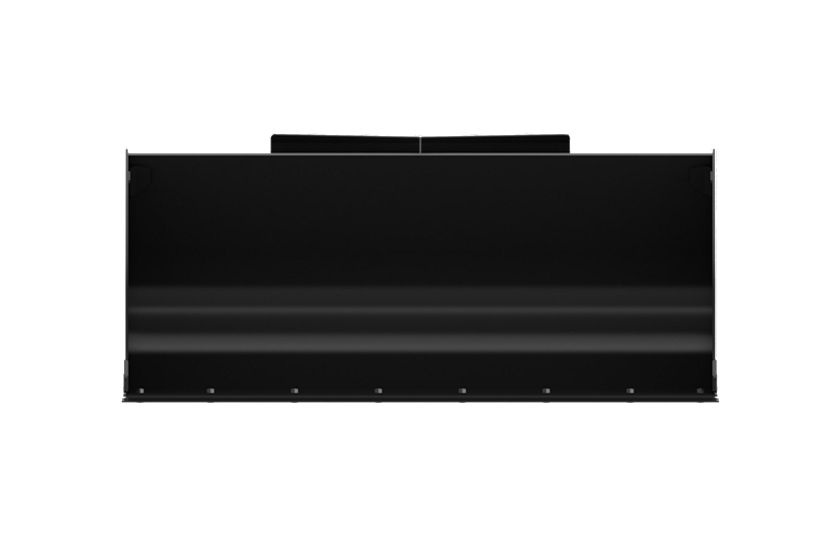

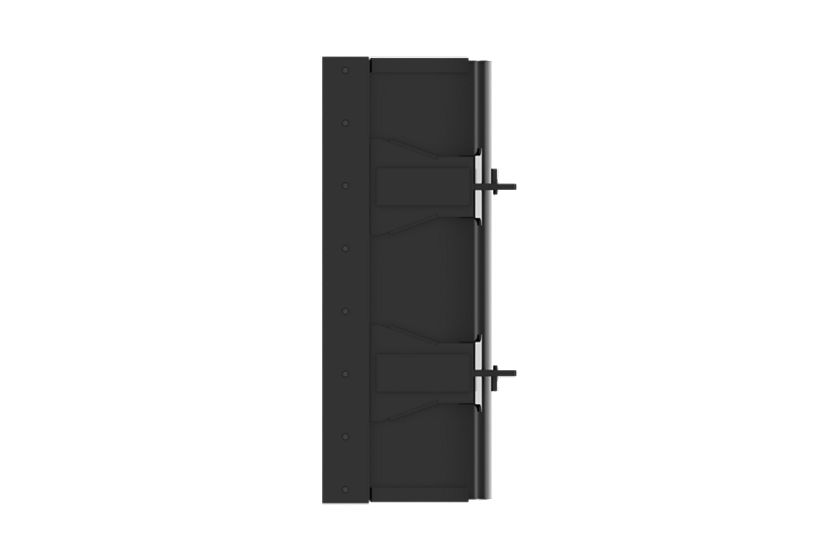

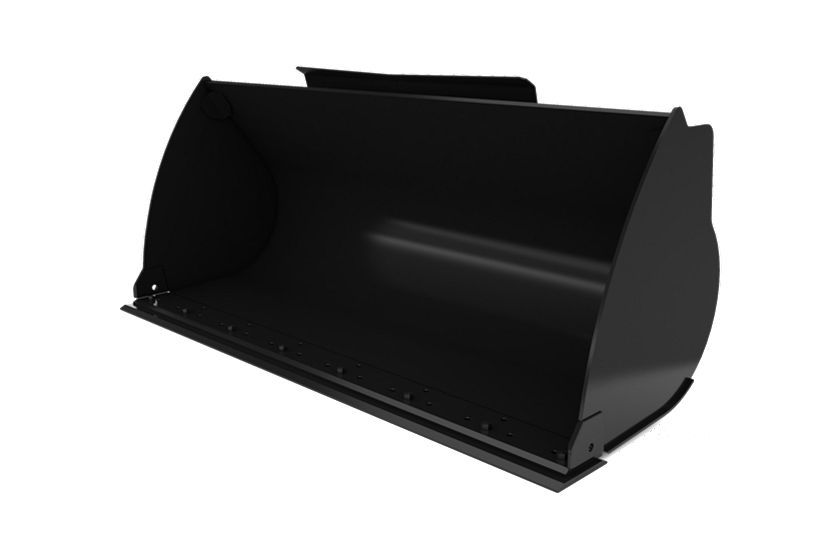

1.5 m3 (2.0 yd3) ISO Coupler General Purpose Bucket – Performance Series With Bolt-On Cutting Edge

Name: 1.5 m3 (2.0 yd3) ISO Coupler General Purpose Bucket – Performance Series With Bolt-On Cutting Edge
Brand: Cat

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Media

An Attachment for Every Job – Cat® Work Tool Attachments

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Email
This field is for validation purposes and should be left unchanged.

Features

Application

Profile Shape

Rounded Sidebars

Strike Plane

Open Throat Design

Specifications

US Metric

General

Spec	Value
Width	94.5 in 2401 mm
Weight	1304.9 lb 591.9 kg
Height	42.5 in 1080 mm
Length	41.3 in 1049 mm
Capacity	2 yd³ 1.5 m³
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.7 in 19 mm
Interface Type	ISO Coupler ISO Coupler
