Cat

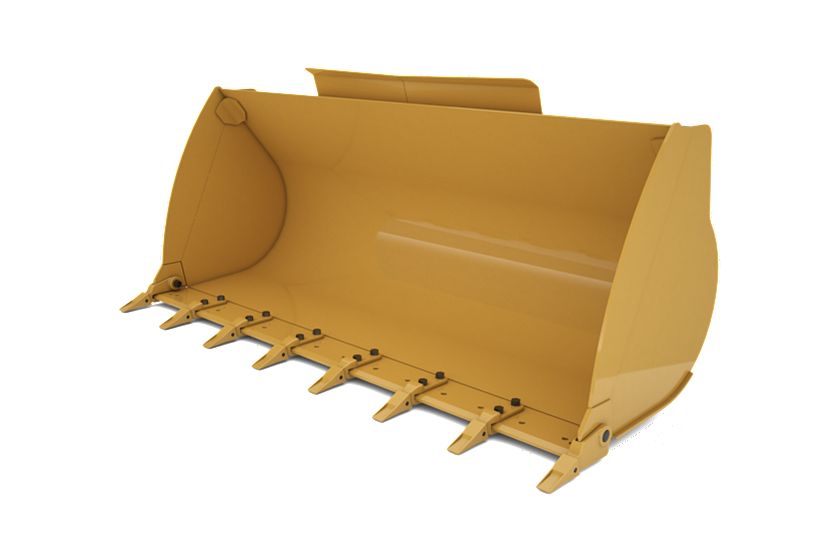

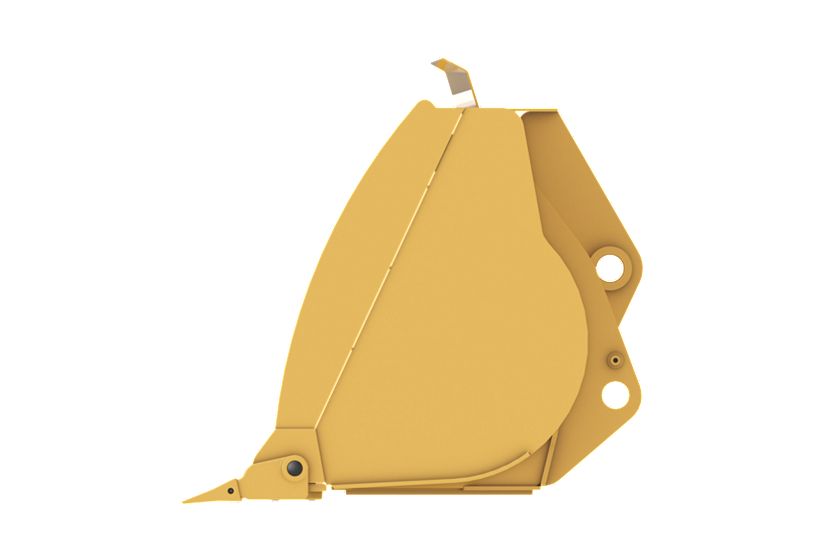

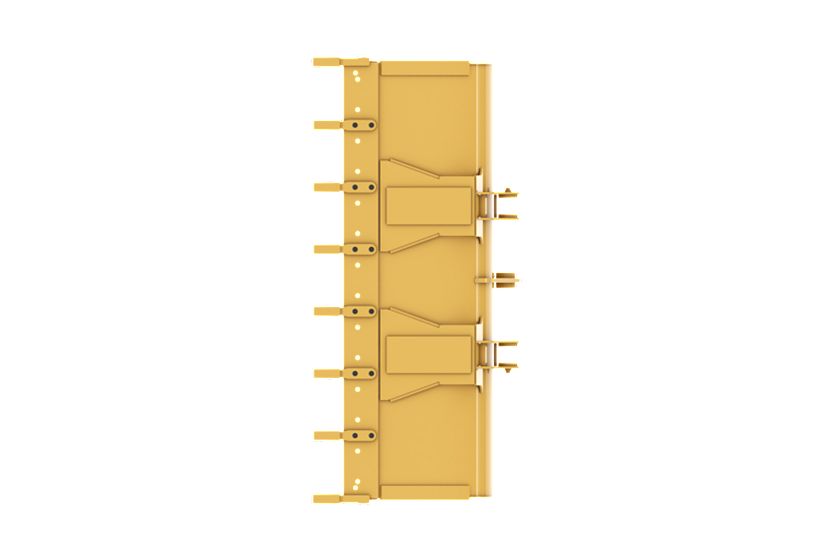

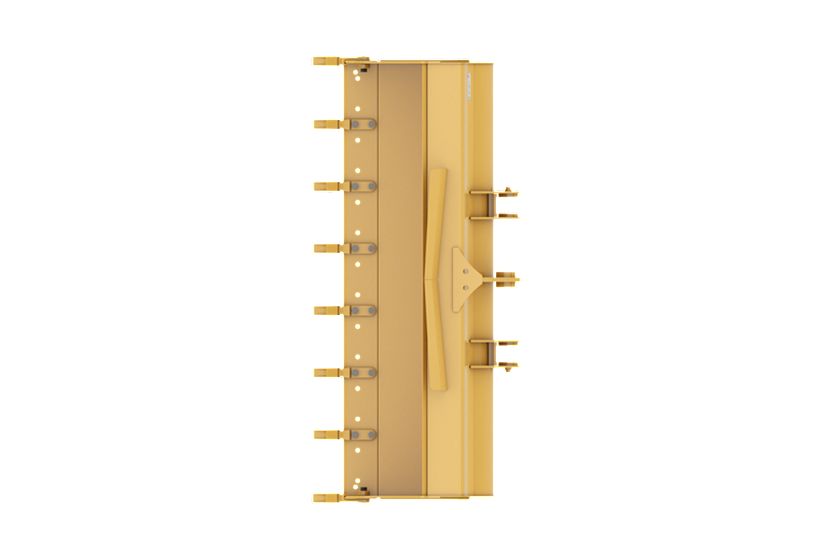

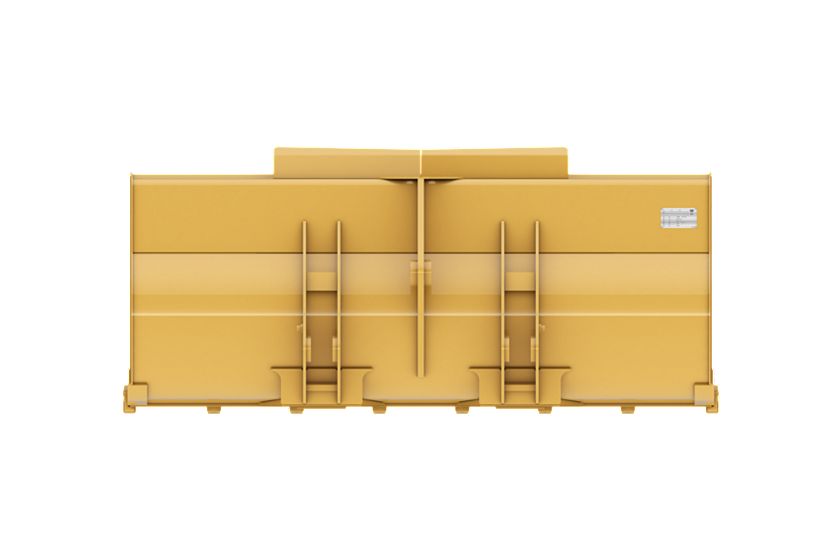

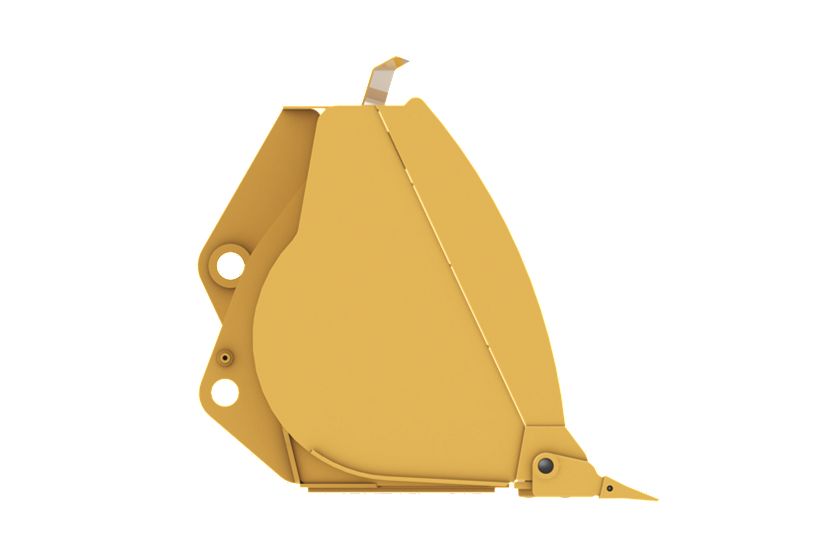

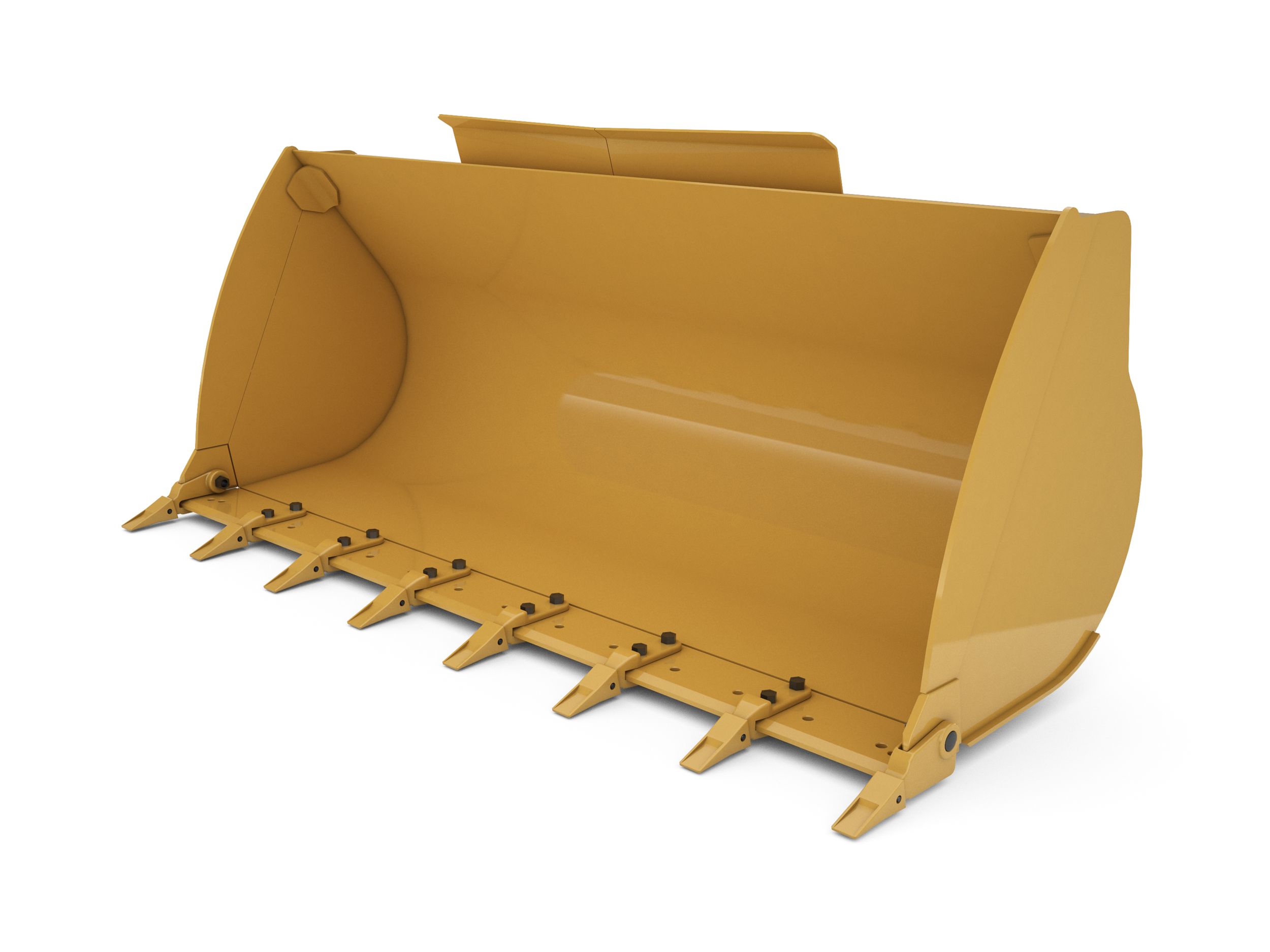

1.3 m3 (1.7 yd3) Pin On General Purpose Bucket – Performance Series With Bolt-On Teeth

Name: 1.3 m3 (1.7 yd3) Pin On General Purpose Bucket – Performance Series With Bolt-On Teeth
Brand: Cat

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Media

An Attachment for Every Job – Cat® Work Tool Attachments

Get more info

Comments
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Application

Profile Shape

Rounded Sidebars

Strike Plane

Open Throat Design

Specifications

US Metric

General

Spec	Value
Width	95.6 in 2429 mm
Weight	1184.1 lb 537.09 kg
Height	43 in 1093 mm
Length	44.5 in 1130 mm
Capacity	1.7 yd³ 1.3 m³
Base Edge Thickness	0.7 in 19 mm
Interface Type	Pin On Pin On
