Cat

0.8 m3 (1.0 yd3) Skid Steer Coupler Multi-Purpose Bucket With Bolt-On Teeth

Clam design enables superior performance in a wide variety of applications.

Media

Photos

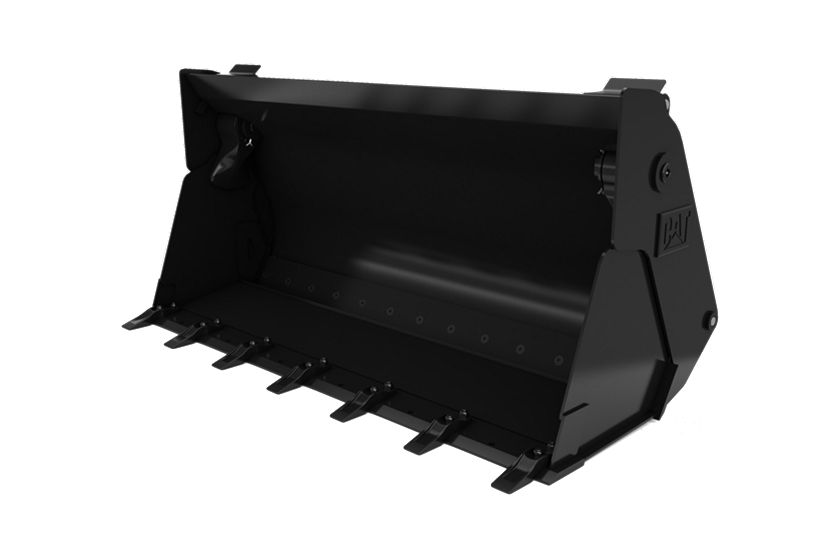

Studio Shot
Studio Shot
Front View
Front View

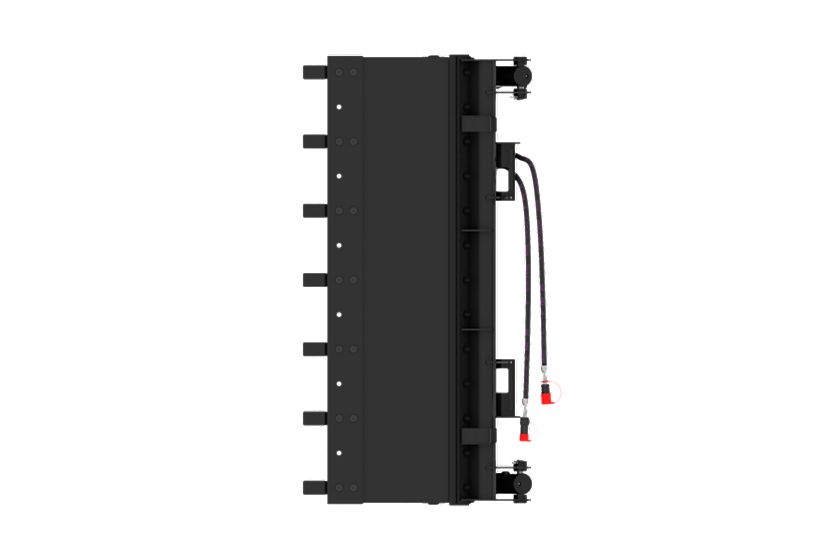

Top View
Top View

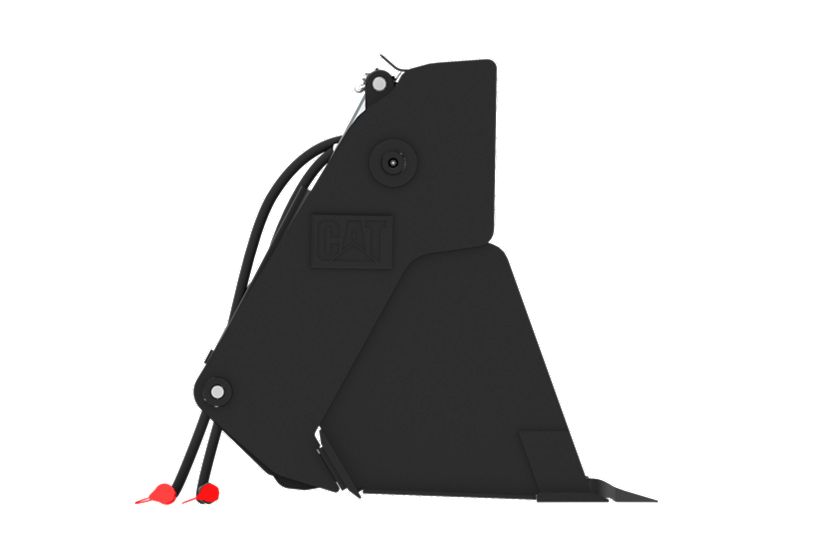

Left View
Left View

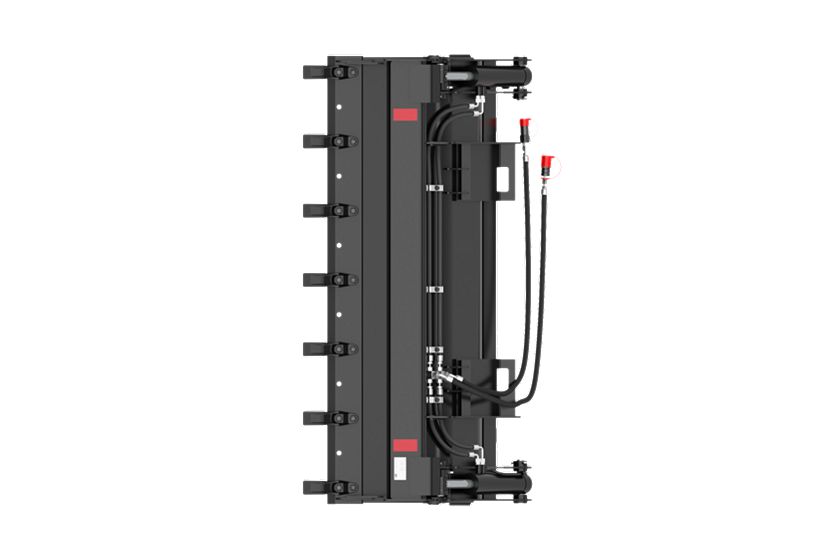

Rear View
Rear View

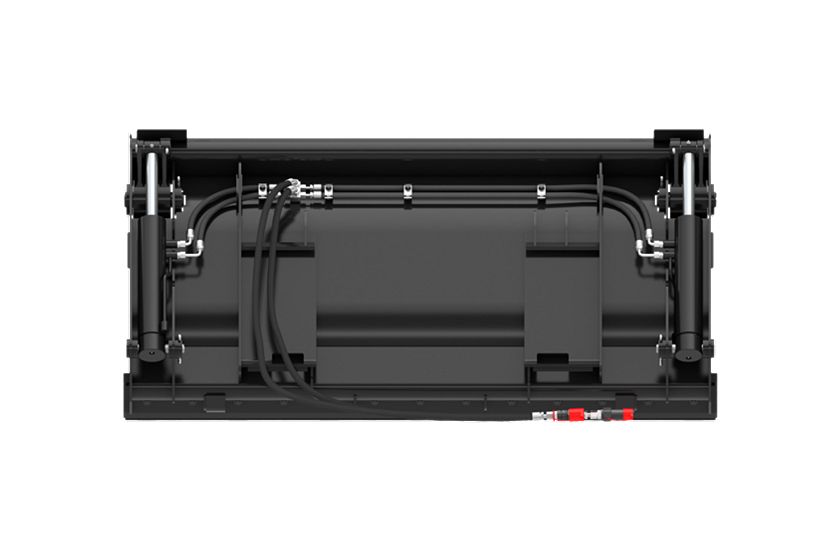

Bottom View
Bottom View

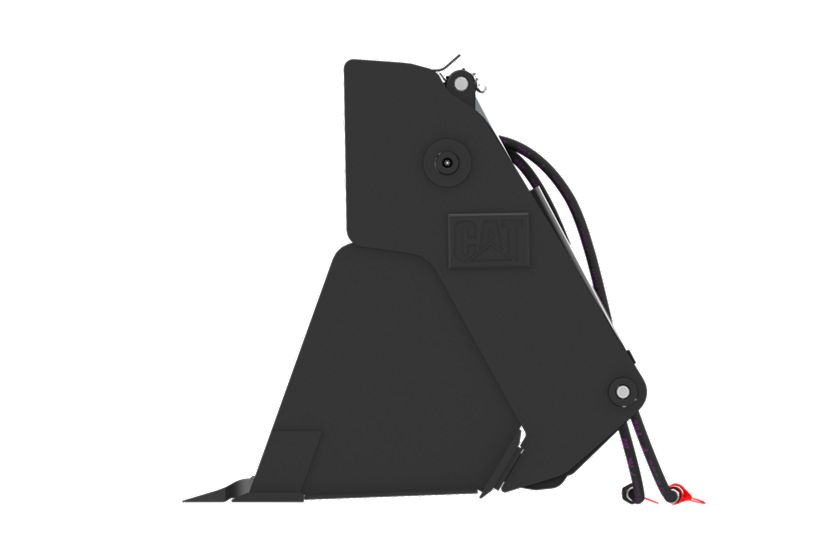

Right View
Right View

Videos

An Attachment for Every Job – Cat® Work Tool Attachments

Features

Application

Added Versatility

Dozing Application

Serrated Clam Edge

Ground Engaging Tool Options

Details

Specifications

Spec Value
Width 74.4 in 1890 mm
Weight 1131 lb 513 kg
Height 36.5 in 927 mm
Length 37.9 in 962 mm
Capacity 1 yd³ 0.8 m³
Jaw Opening 21.7 in 551 mm
Clam Angle 66 degrees 66 degrees
Base Edge Thickness 0.8 in 20 mm
Interface Type Skid Steer Coupler Skid Steer Coupler
