Cat

300 mm (12 in), 40 L (1.4 ft3) Pin On Digging Bucket With Bolt-On Teeth

These buckets are ideal for digging in soft to moderate ground.

Media

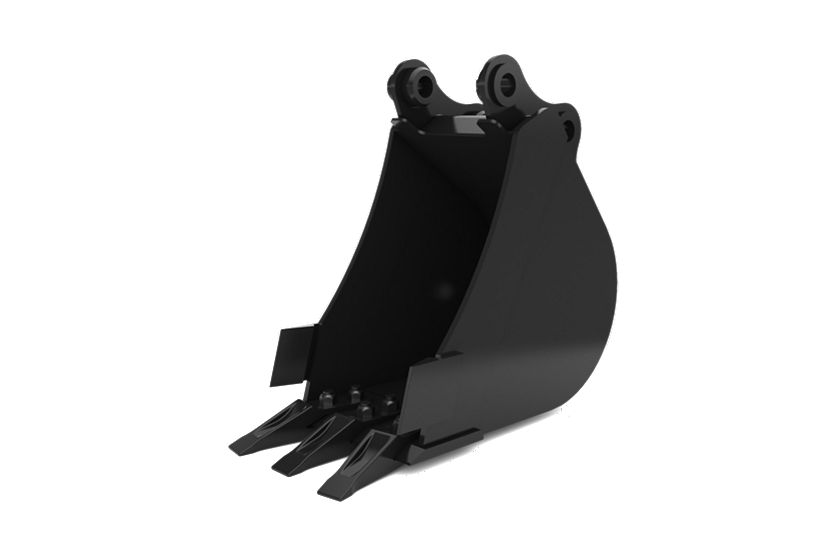

Studio Shot

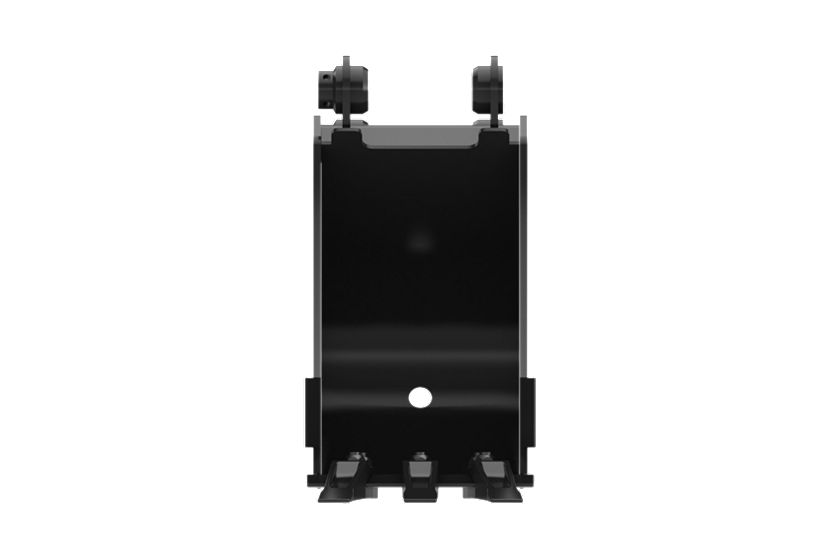

Front View

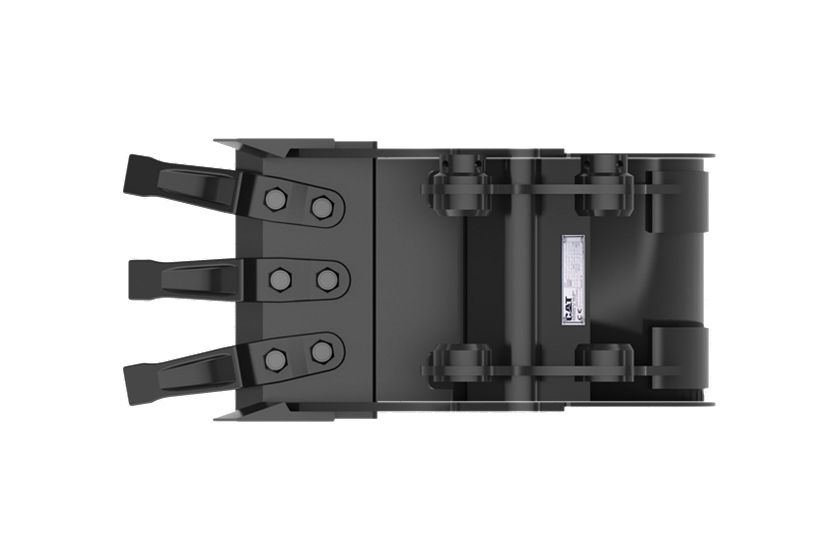

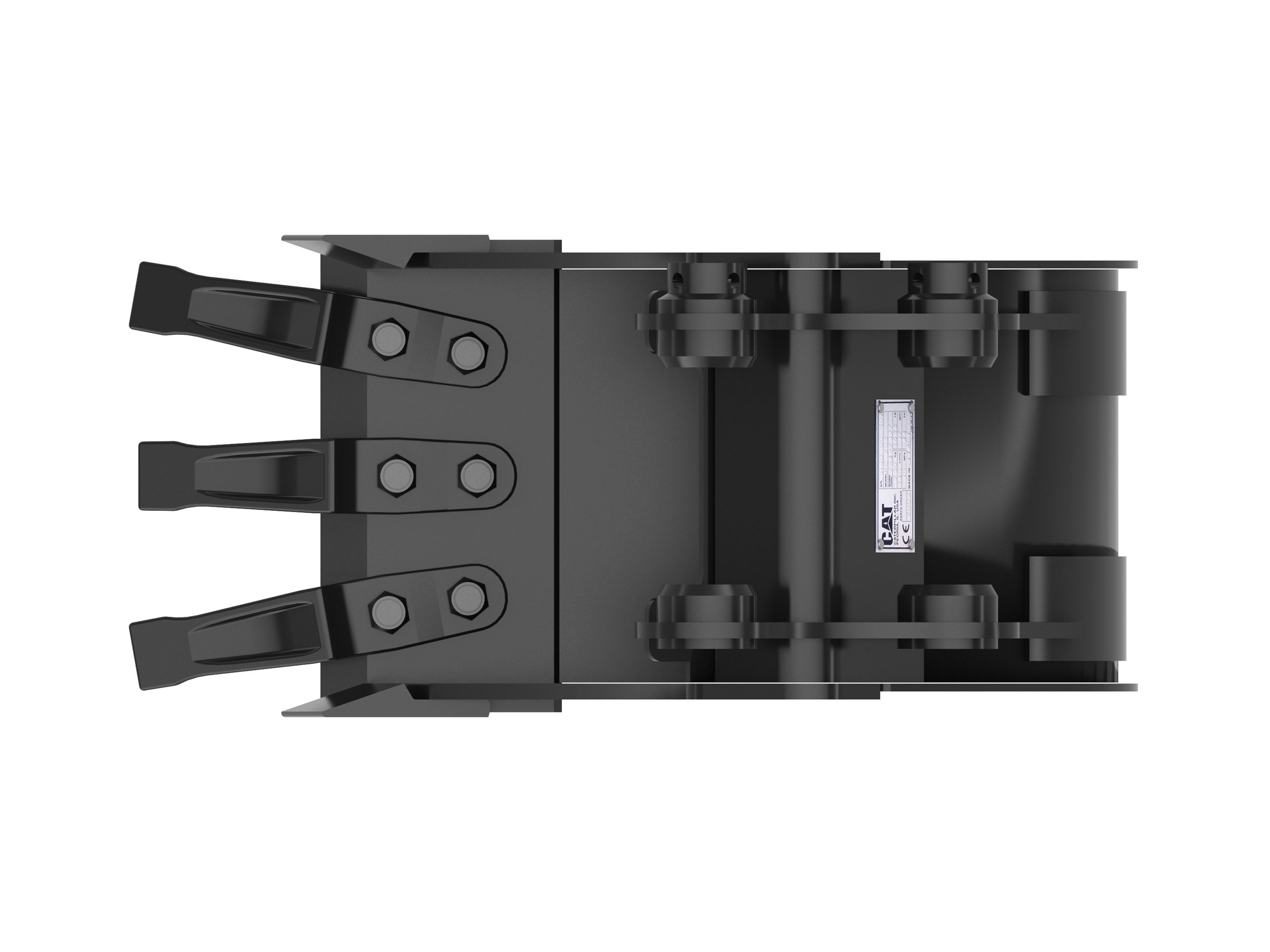

Top View

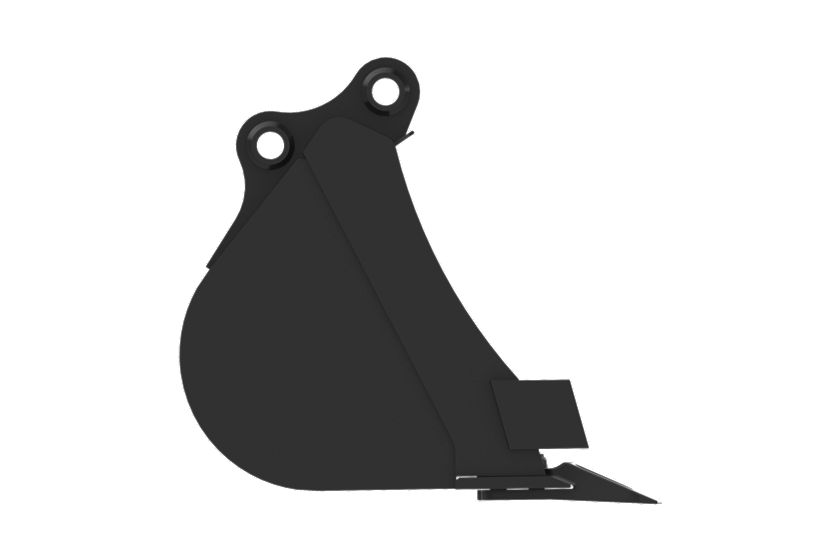

Left View

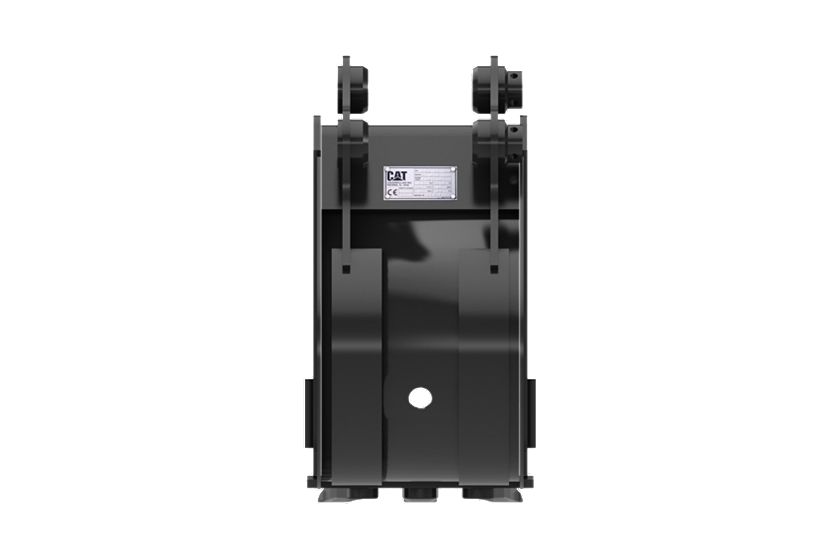

Rear View

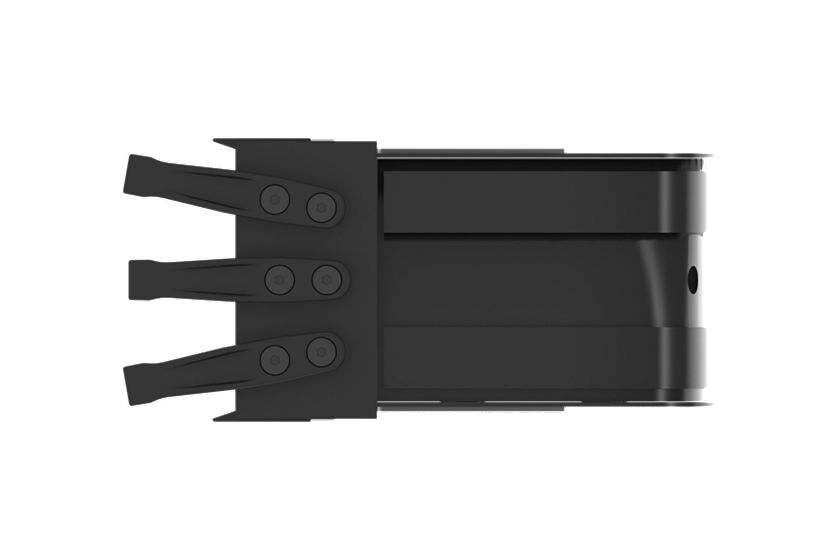

Bottom View

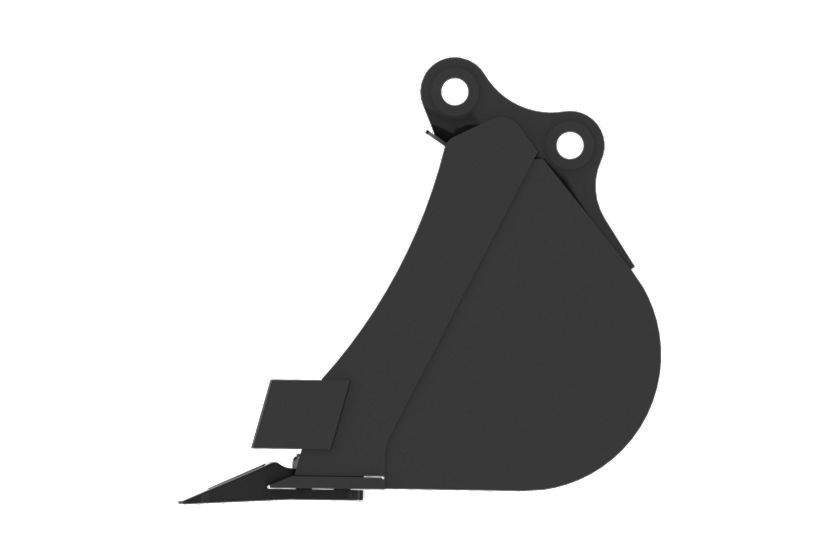

Right View

Cat® Mini Excavator Buckets Overview

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Cat® Buckets for Mini Excavators Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Application

Bucket Design

Superior Bucket Fill

Bucket Shape

Specifications

US Metric

General

Spec	Value
Width	11.8 in 300 mm
Capacity	1.4 ft³ 39.59 l
Weight	111.3 lb 50.5 kg
Base Edge Thickness	0.6 in 16 mm
Tip Radius	25.3 in 643 mm
Interface Type	Pin On Pin On
