HMF110 Flail Mower

Mowers are ideal for efficient cutting and mulching of vegetation and overgrowth.

Media

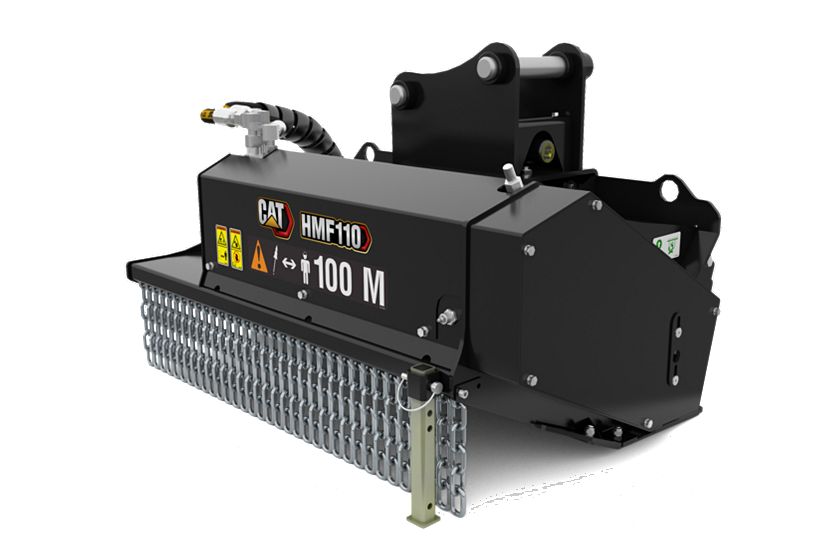

Studio Shot

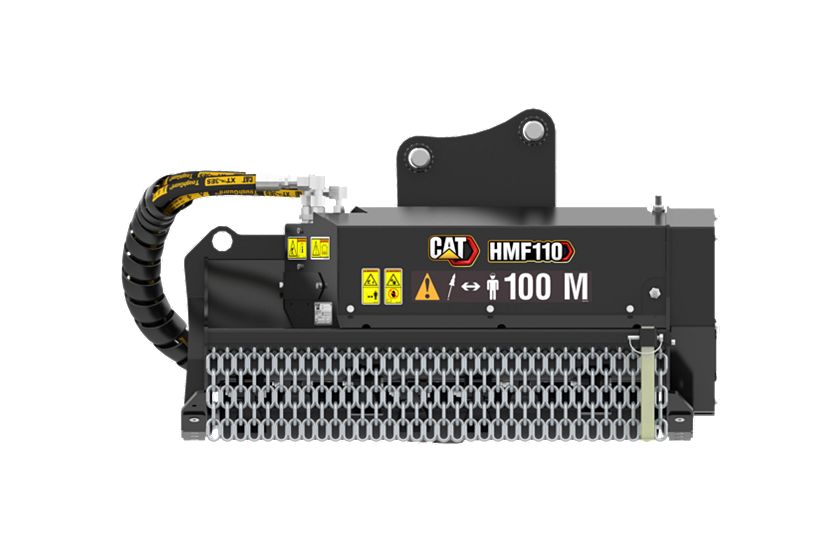

Front View

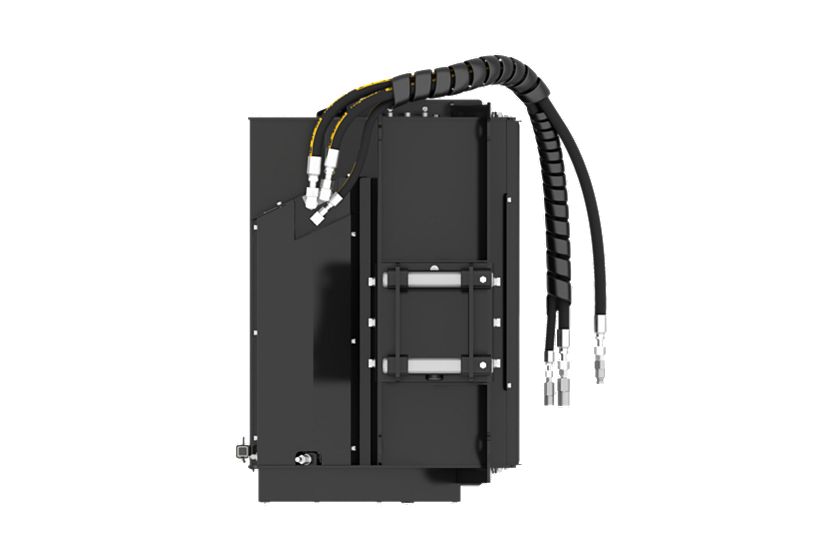

Top View

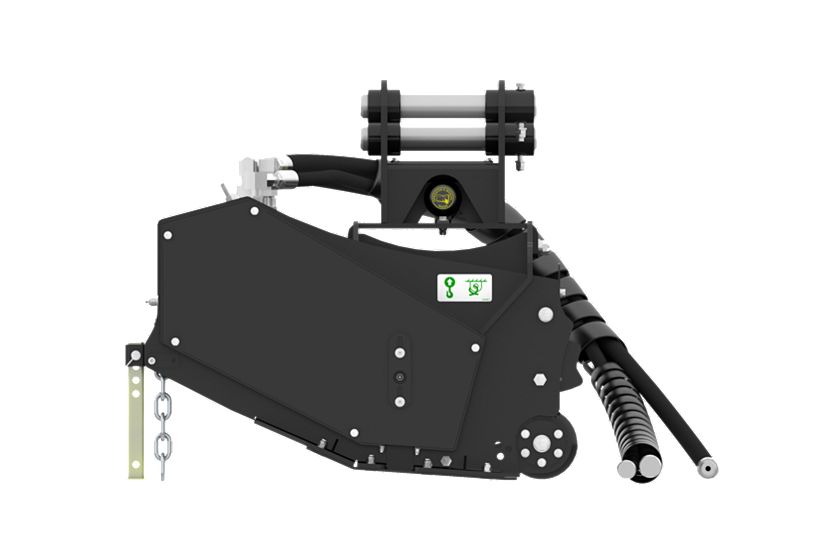

Left View

Rear View

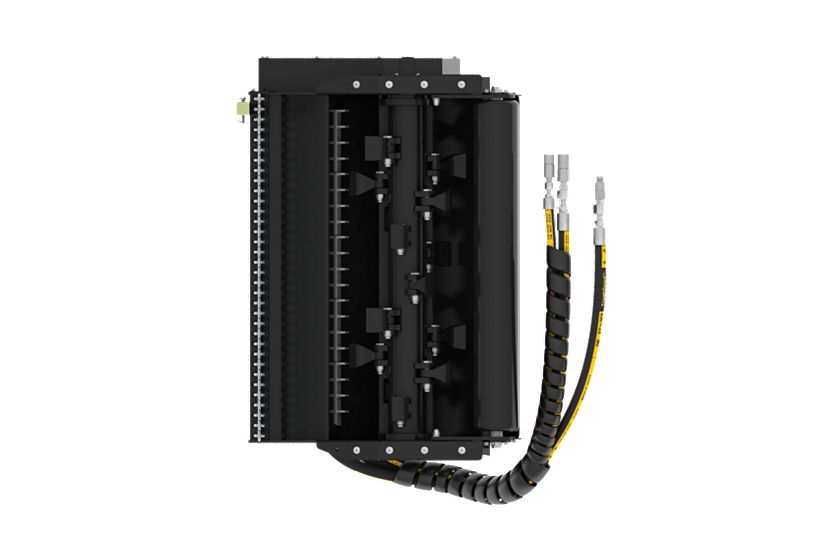

Bottom View

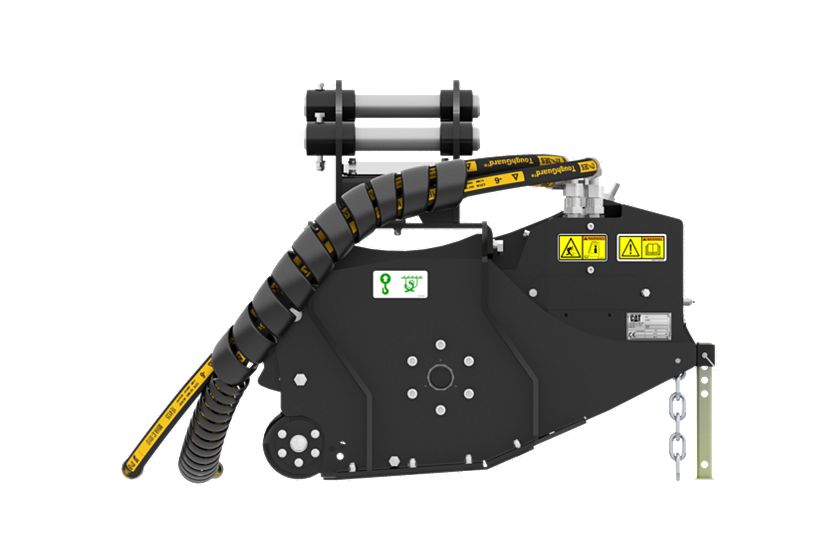

Right View

Cat® HMF210 Flail Mower at Work

Cat® Flail Mower at Work

Cat® Flail Mower Overview

An Attachment for Every Job – Cat® Work Tool Attachments

Exterior

Model shown represents features on all Cat® Flail Mowers except where indicated.

Documents

Cat® Flail Mowers for Mini Excavators Product Brochure

Get more info

LinkedIn
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Application

Piston Motor

Balanced Drum

Cat® XTC Hydraulic Hoses

Integrated Rear Roller

Bolt-On Replaceable Skid Shoes

Integrated Stand

Front Chain Guard

Tool Mounted Operation and Maintenance Manual Holder

Specifications

US Metric

General

Spec	Value
Working Width	39.4 in 1000 mm
Required Hydraulics	Standard Flow Standard Flow
Overall Width	46.6 in 1184 mm
Optimal Hydraulic Flow	50-80 L/min (13-21 gpm) 50-80 L/min (13-21 gpm)
Maximum Cutting Diameter	50-75 mm (2-3 in) 50-75 mm (2-3 in)
Swinging Teeth per Drum	16 16
Length	33.1 in 842 mm
Overall Height	29.2 in 741 mm
Weight	831.1 lb 377 kg
Drive Method	V-Belt Drive V-Belt Drive
Motor	Axial Piston Axial Piston
Optimal Hydraulic Pressure	150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed	2540-2620 RPM 2540-2620 RPM
