Caterpillar

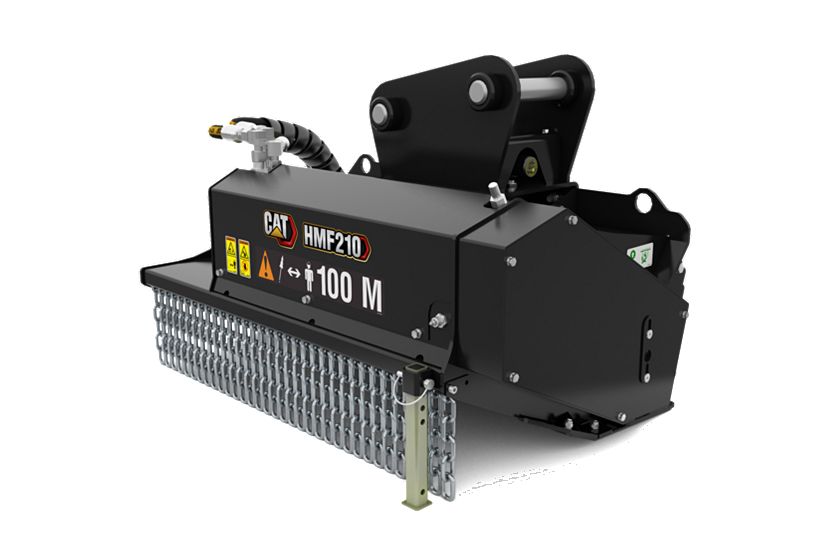

HMF210 Flail Mower

Mowers are ideal for efficient cutting and mulching of vegetation and overgrowth.

Media

Photos

Videos

360° View

Exterior

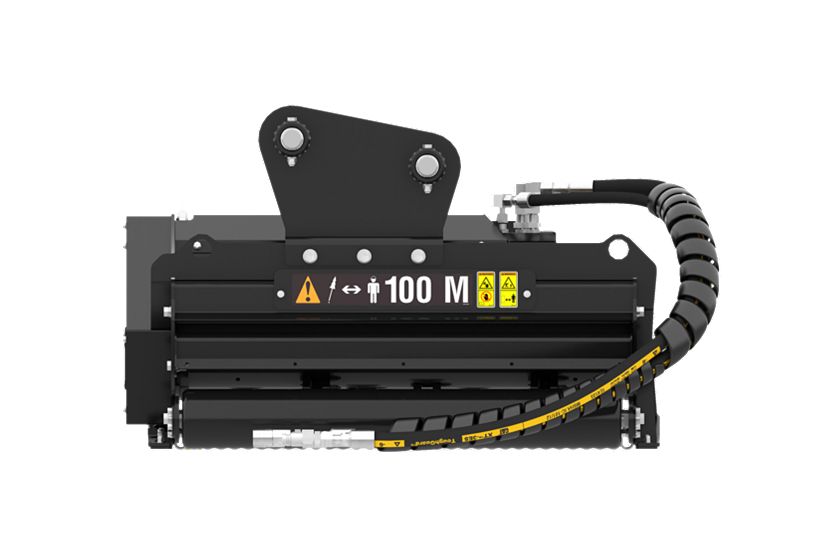

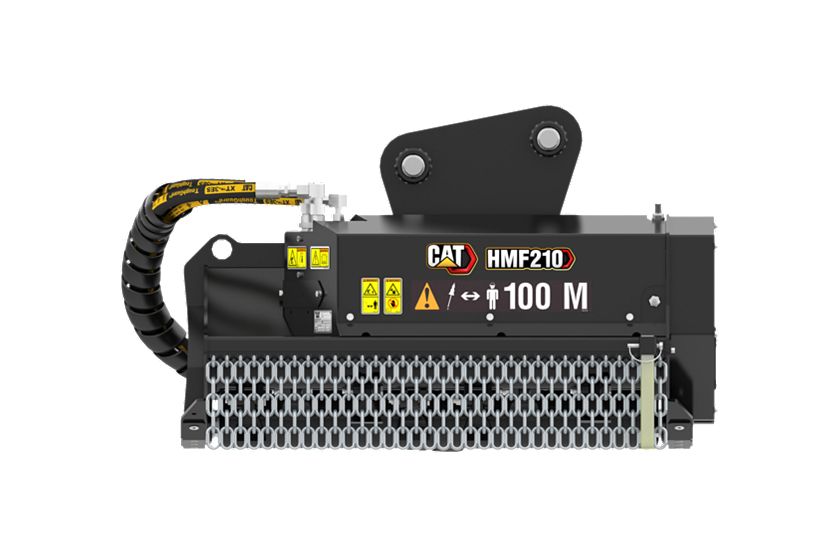

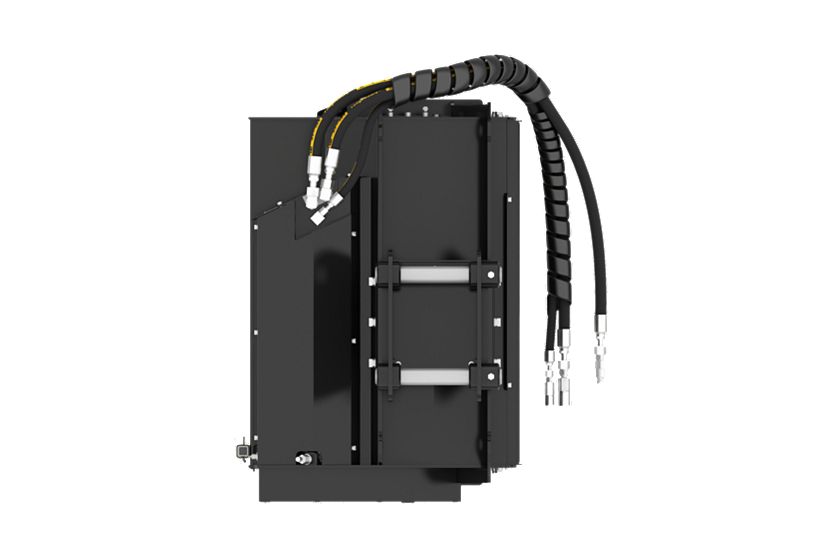

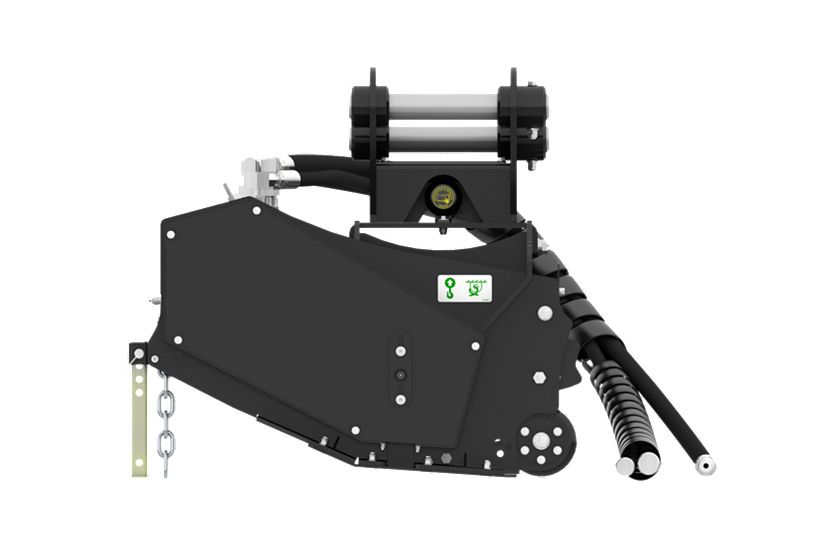

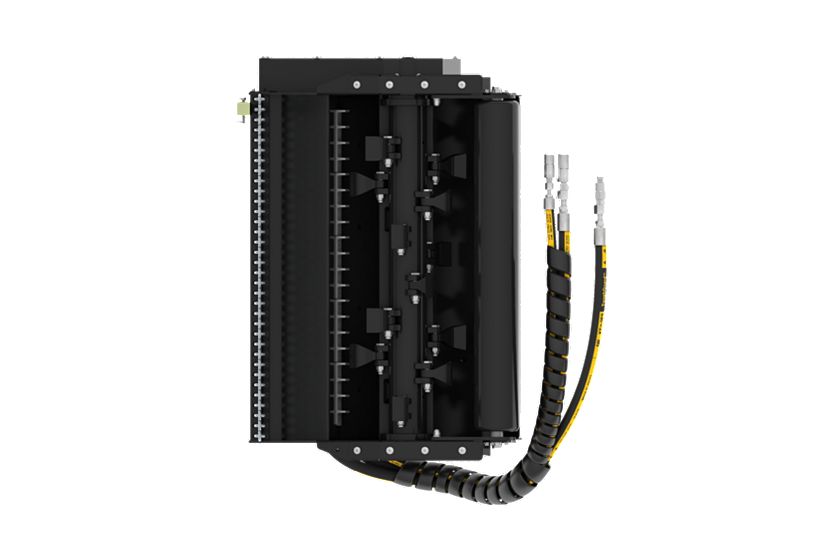

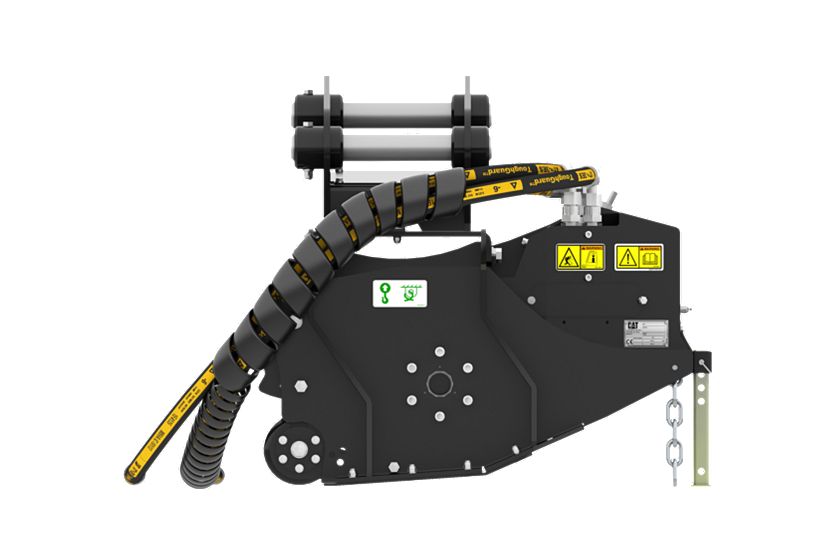

Model shown represents features on all Cat® Flail Mowers except where indicated.

Features

Details

Specifications

Spec Value
Working Width 39.4 in 1000 mm
Required Hydraulics Standard Flow Standard Flow
Overall Width 46.6 in 1184 mm
Optimal Hydraulic Flow 70-130 L/min (18-34 gpm) 70-130 L/min (18-34 gpm)
Maximum Cutting Diameter 50-75 mm (2-3 in) 50-75 mm (2-3 in)
Swinging Teeth per Drum 16 16
Length 33.1 in 842 mm
Overall Height 30.2 in 766 mm
Weight 844.4 lb 383 kg
Drive Method V-Belt Drive V-Belt Drive
Motor Axial Piston Axial Piston
Optimal Hydraulic Pressure 150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed 2560-2630 RPM 2560-2630 RPM
