1524 mm (60 in) Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Media

Photos

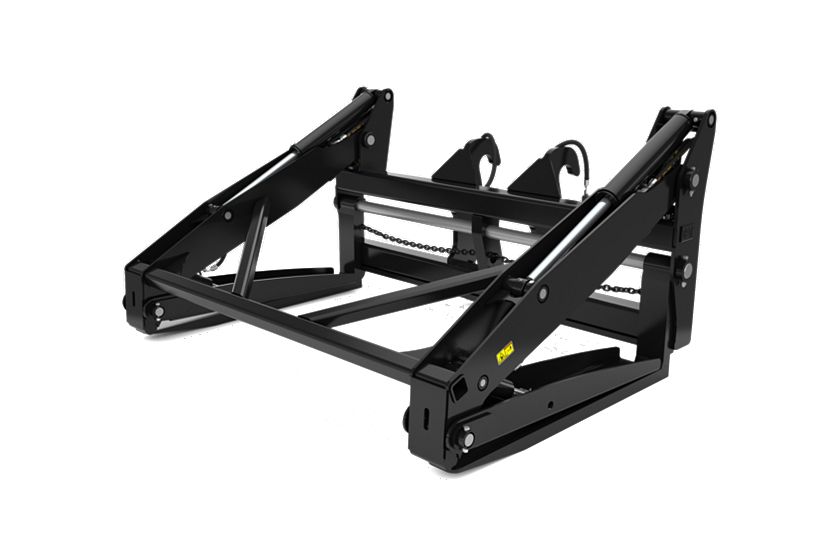

Studio Shot
Studio Shot

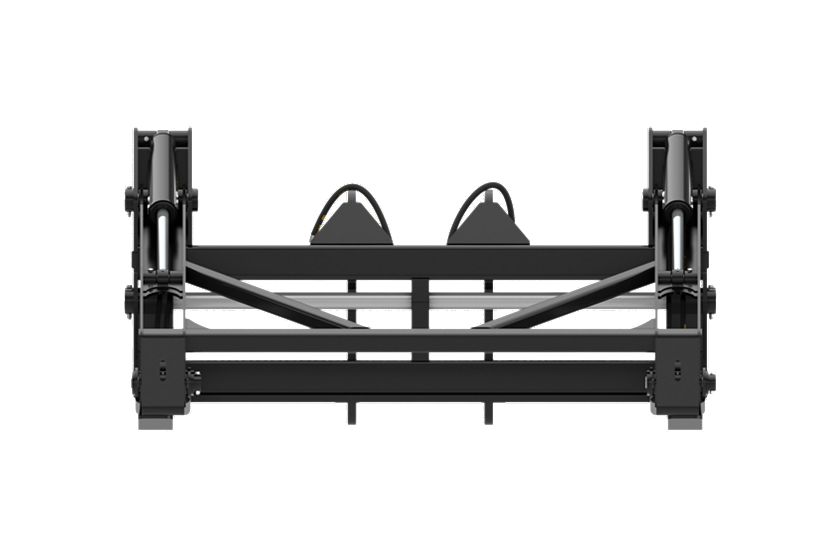

Front View
Front View

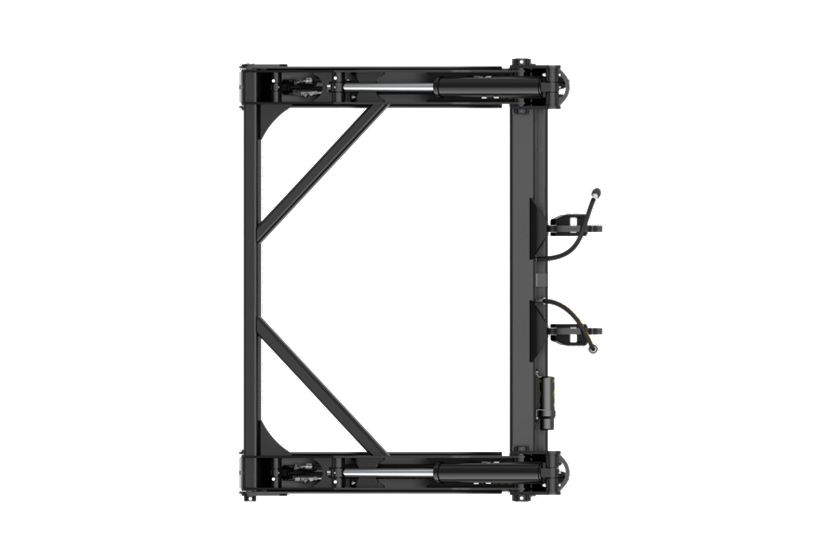

Top View
Top View

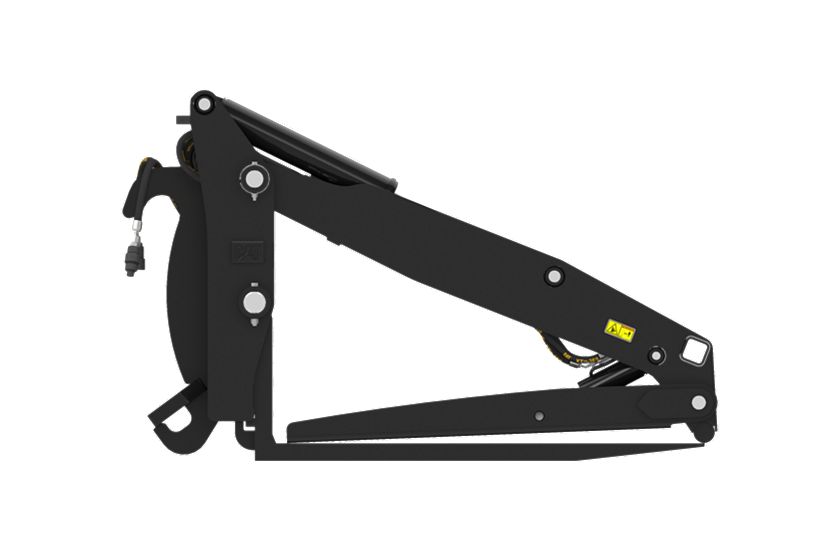

Left View
Left View

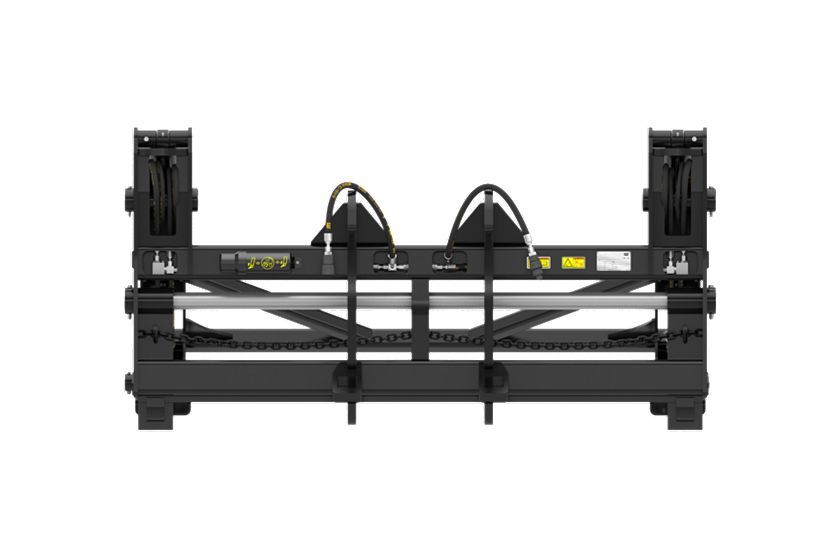

Rear View
Rear View

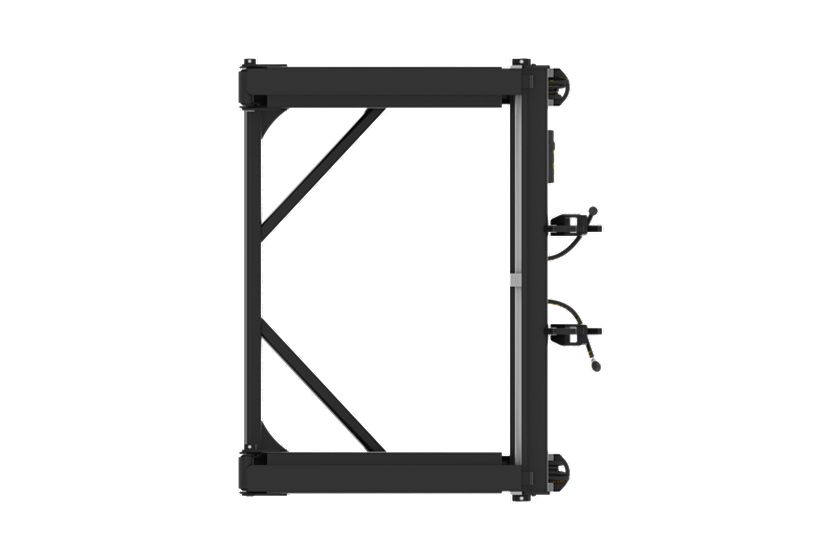

Bottom View
Bottom View

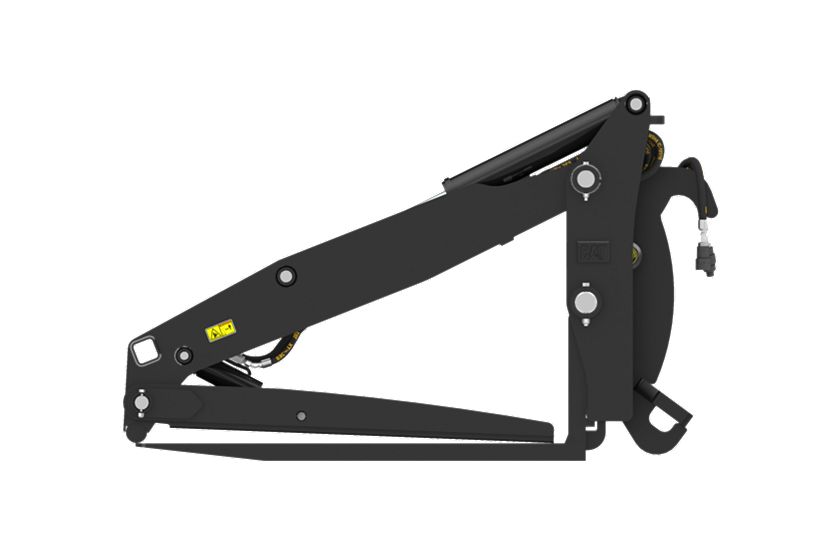

Right View
Right View

Videos

An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Pipe & Pole Forks except where indicated.

Features

Application

Robust and Versatile Structure

Adjustable Tines

Protected Hydraulic Cylinders

Pallets and other Materials

Details

Specifications

Spec Value
Width 100.7 in 2559 mm
Tine Length 60 in 1524 mm
Weight 3505.3 lb 1590 kg
Interface Type Fusion™ Coupler Fusion™ Coupler
Required Hydraulics 3rd Function 3rd Function
Carriage Height – Closed Clamp 52 in 1321 mm
Carriage Height – Open Clamp 112.3 in 2852 mm
Tine Spacing – Maximum Width 96 in 2438 mm
Tine Width 6 in 152 mm
Tine Thickness 2.5 in 64 mm
Load Capacity 5158.8 lb 2340 kg
