Caterpillar

1829 mm (72 in) Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Media

Photos

Videos

360° View

Exterior

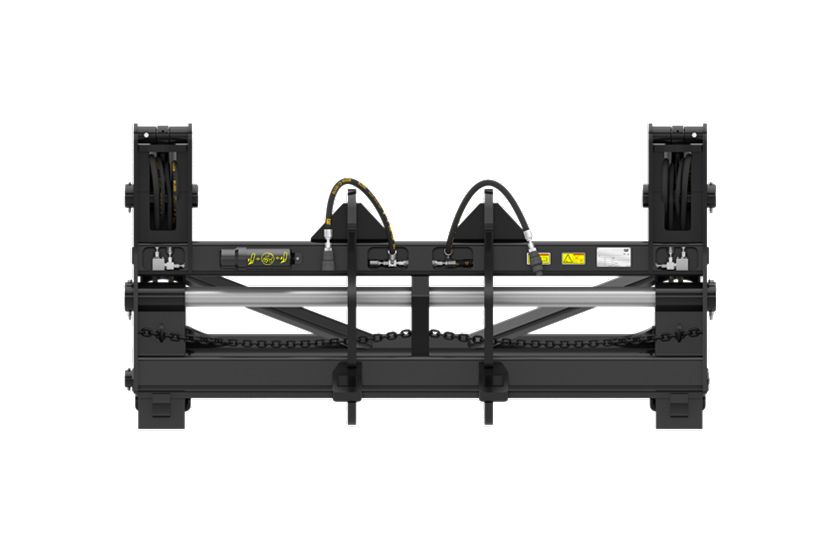

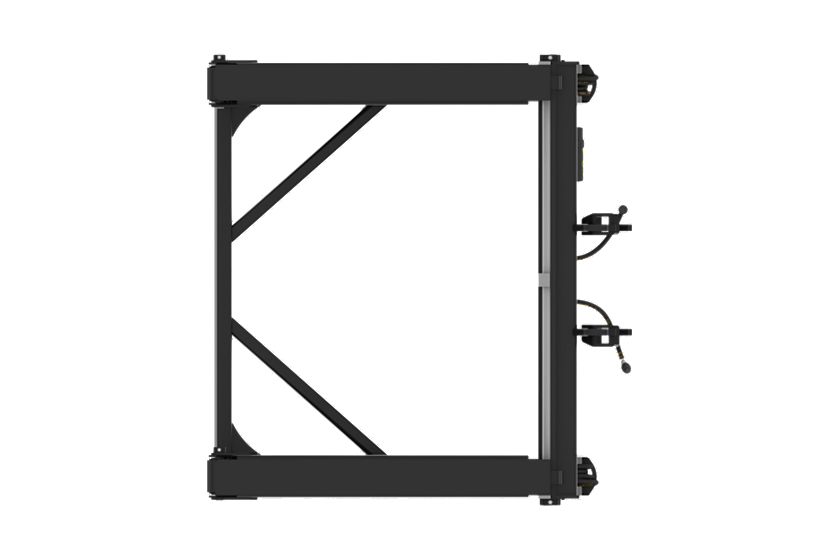

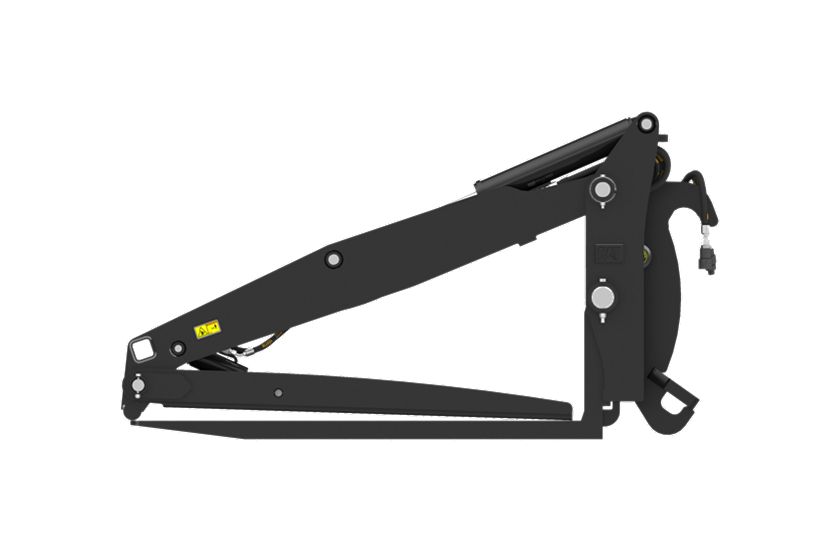

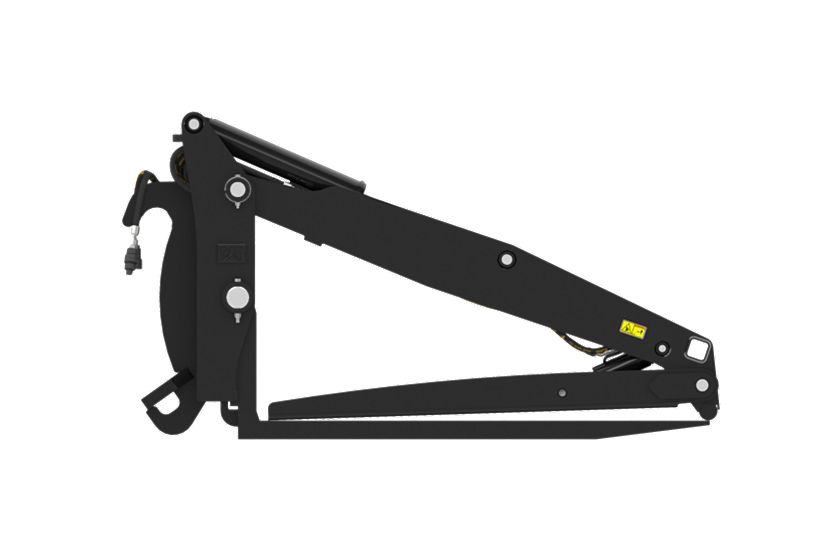

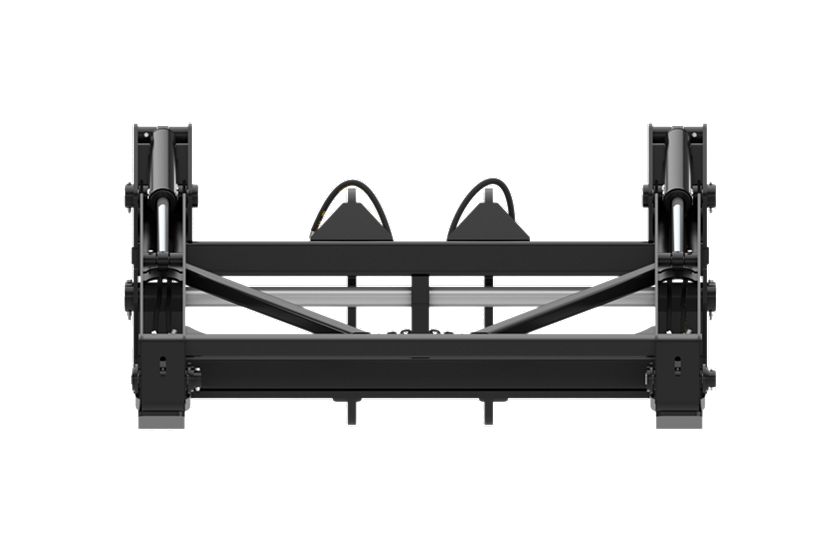

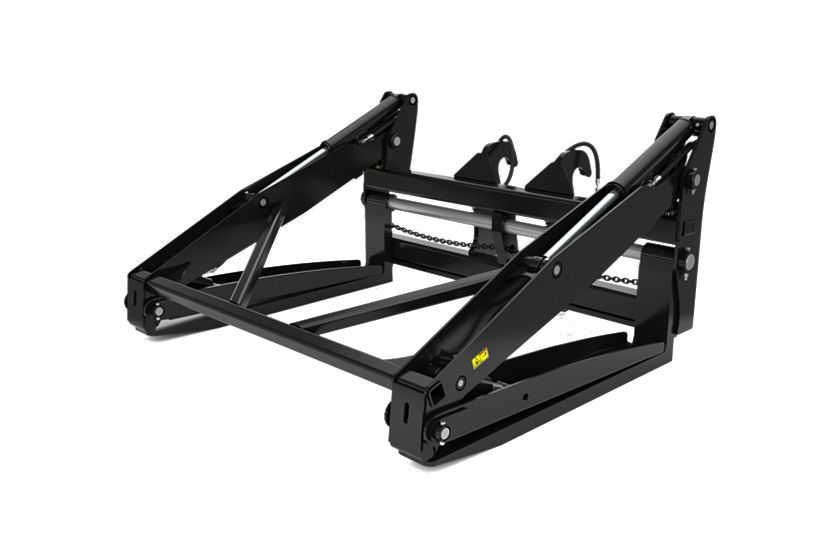

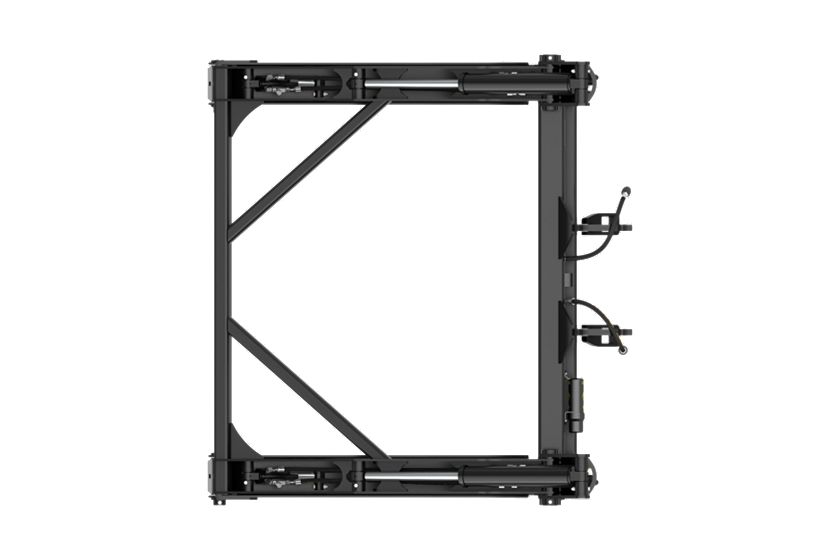

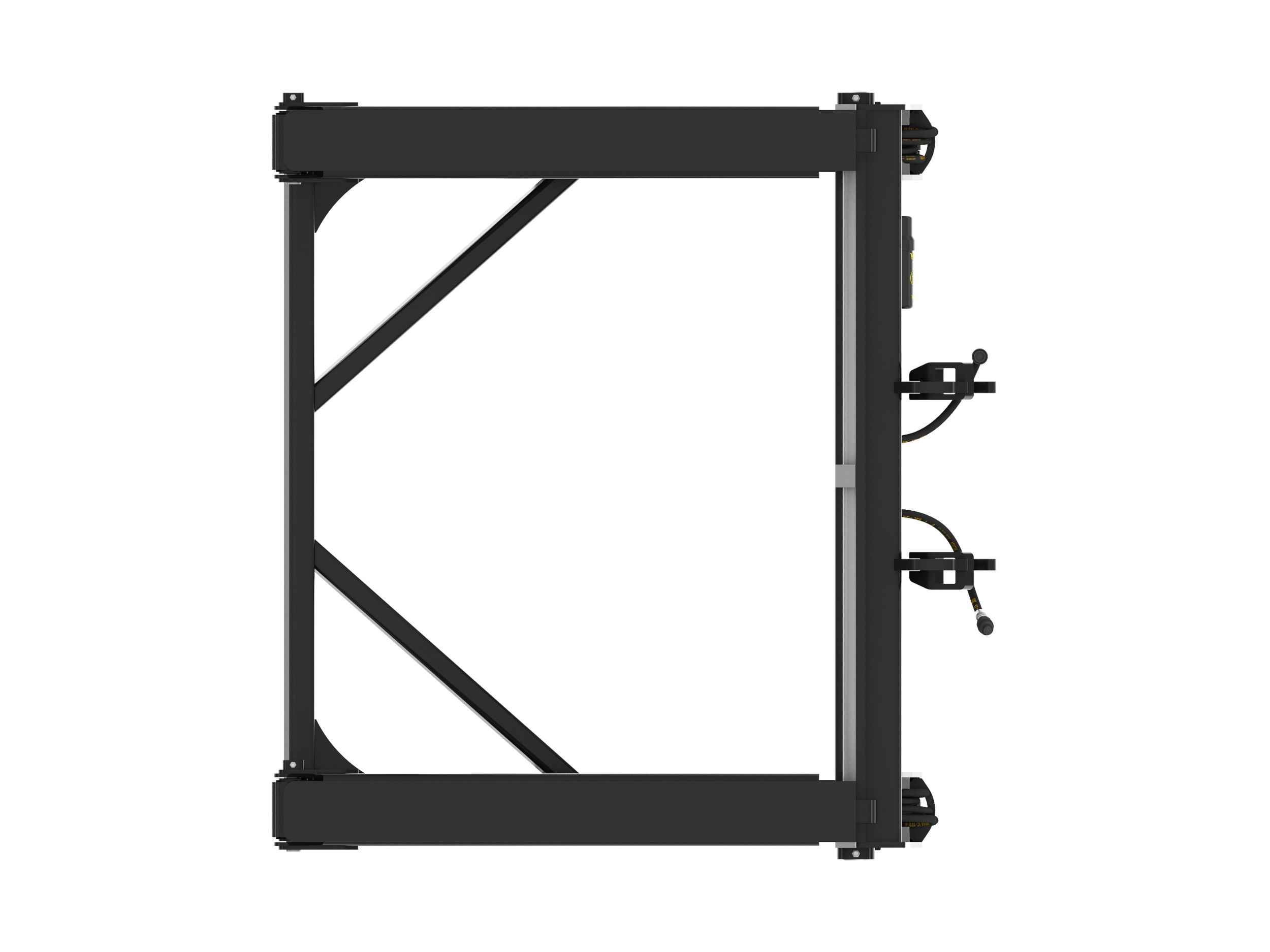

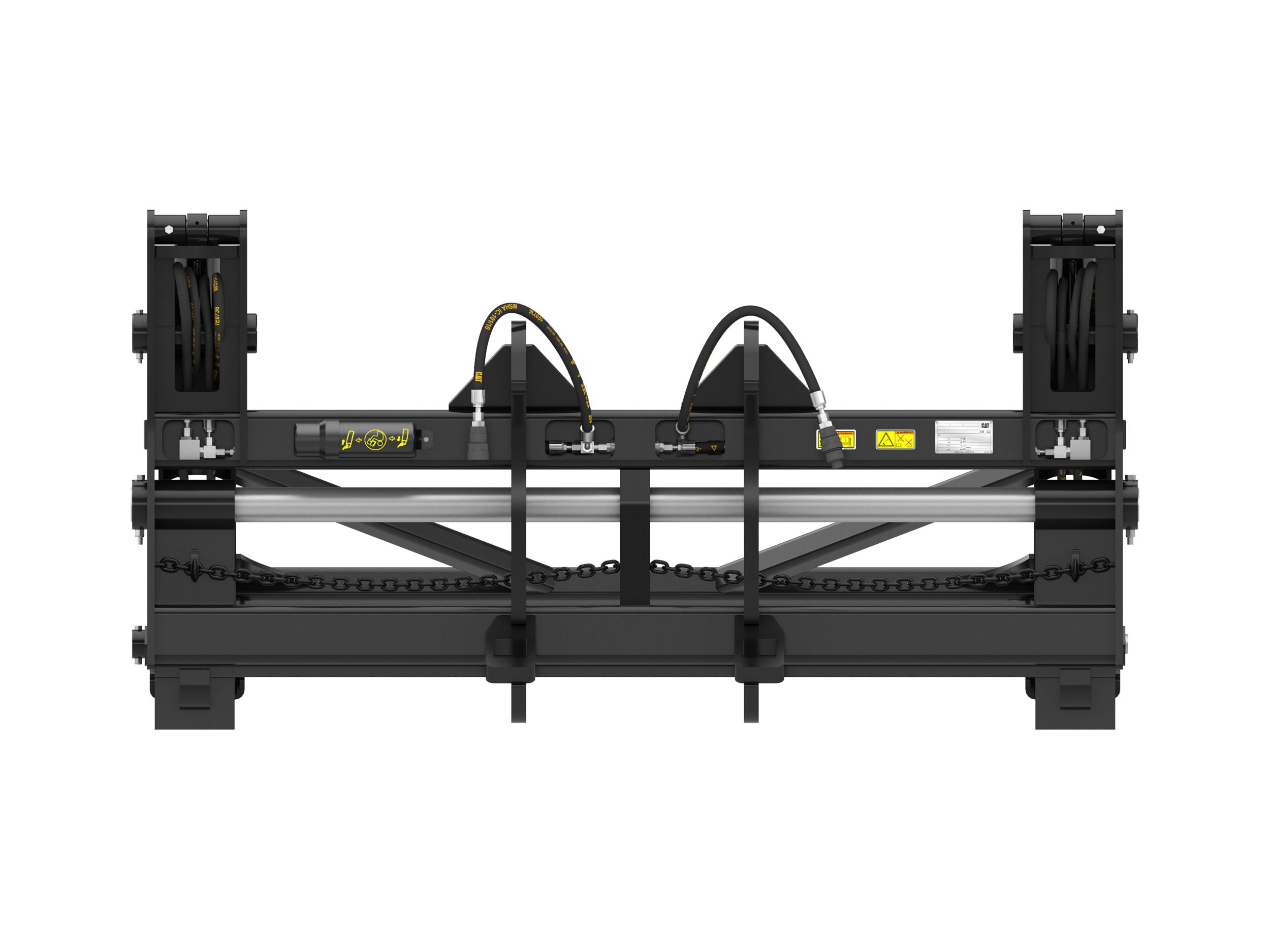

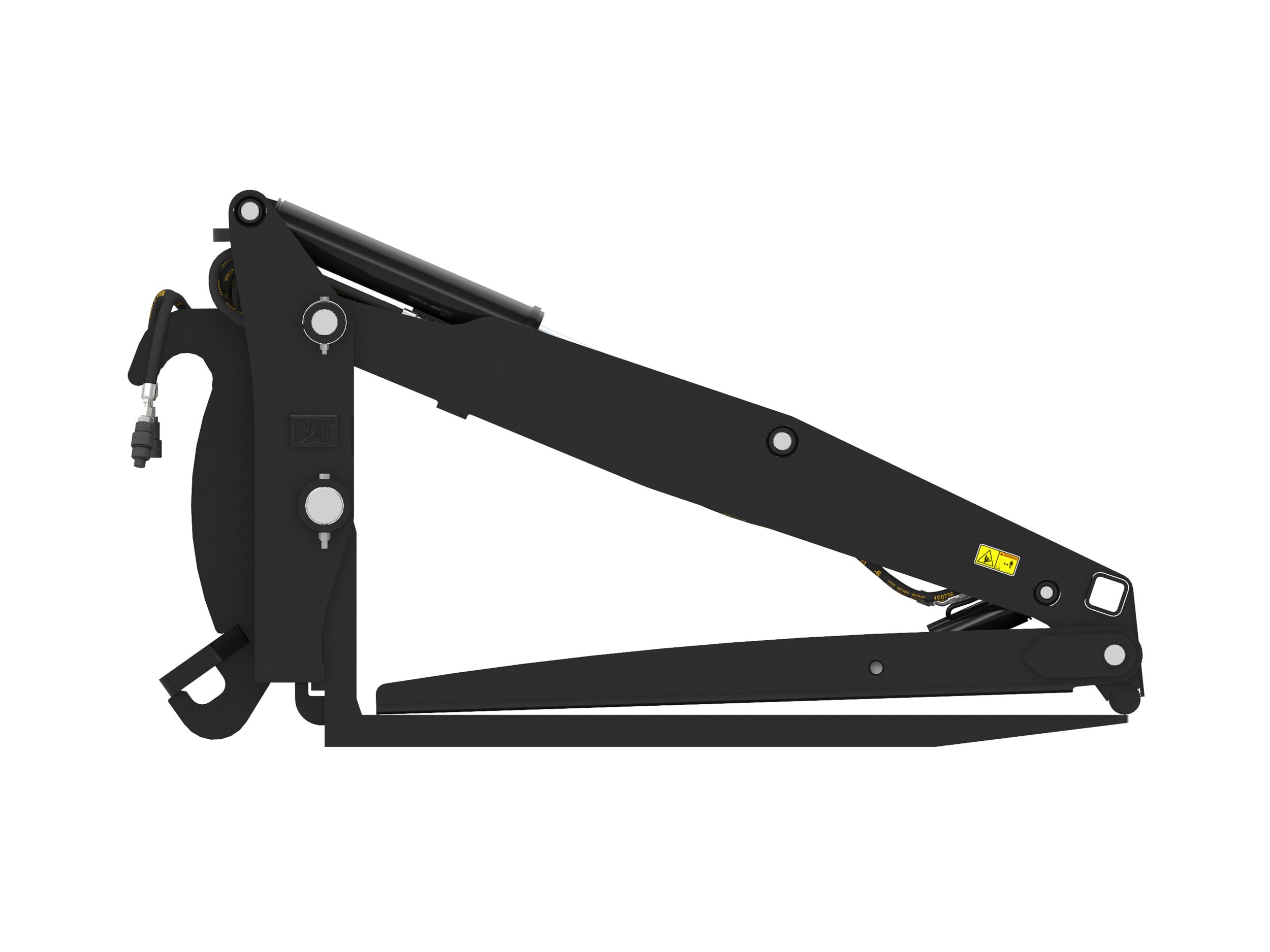

Model shown represents features on all Cat® Pipe & Pole Forks except where indicated.

Features

Details

Specifications

Spec Value
Width 100.7 in 2559 mm
Tine Length 72 in 1829 mm
Weight 4301.2 lb 1951 kg
Interface Type Fusion™ Coupler Fusion™ Coupler
Required Hydraulics 3rd Function 3rd Function
Carriage Height – Closed Clamp 52 in 1321 mm
Carriage Height – Open Clamp 123.7 in 3143 mm
Tine Spacing – Maximum Width 96 in 2438 mm
Tine Width 8 in 203 mm
Tine Thickness 3 in 76 mm
Load Capacity 7400.9 lb 3357 kg
