Caterpillar

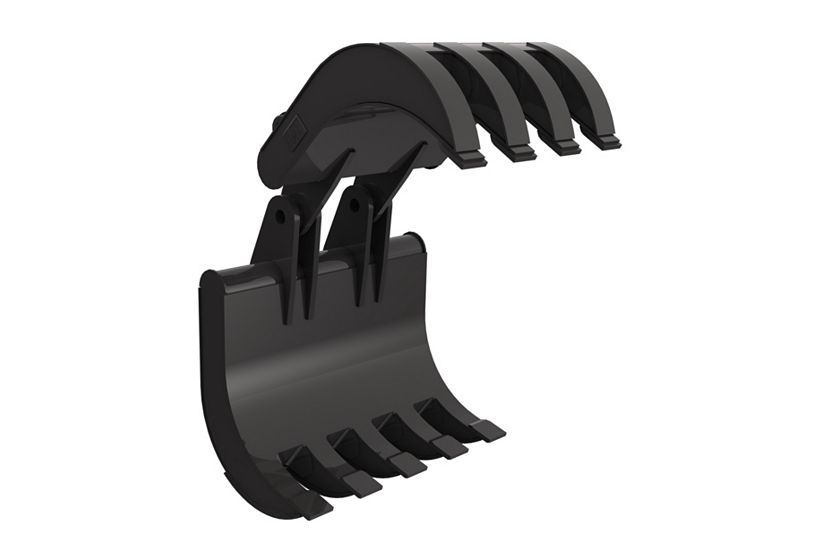

Trash Grapple, 336/345/349
Pin on trash grapple, four tines over five, for 345B hydraulic excavator with F linkage. 7CW.
Media
Photos
Documents
Details
Specifications
General
| Spec | Value |
|---|---|
| Rated Capacity | 6.58 yd³ 5.03 m³ |
| Weight | 6174 lb 2800 kg |
| Upper Jaw Width | 62 in 1581 mm |
| Lower Jaw Width | 80 in 2038 mm |
| Maximum Jaw Opening | 124 in 3161 mm |
| Outside Jaw Dimension – Closed | 13 in 338 mm |
| Outside Jaw Dimension – Open | 130 in 3290 mm |
| Tip Radius | 66 in 1679 mm |
| Jaw Depth | 17 in 430 mm |
| Tip Thickness | 0.98 in 25 mm |
| Wear Plate Thickness | 0.47 in 12 mm |
| Wrapper Thickness | 0.63 in 16 mm |
