Caterpillar

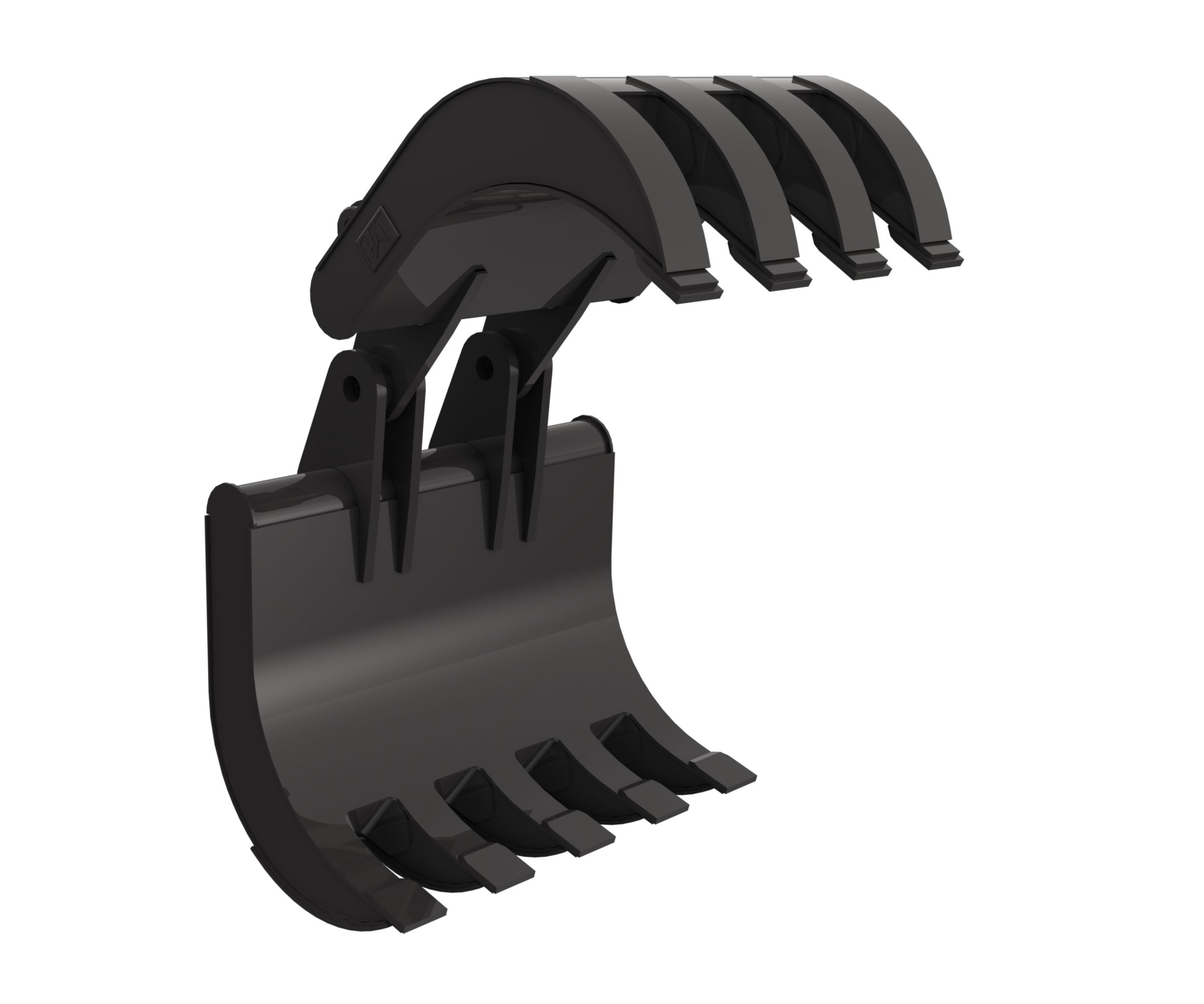

Trash Grapple, 315/316/318 Excavators
Pin on trash grapple, four tines over five, for 315B or 315C hydraulic excavator with 315 linkage. 7CW.
Media
Photos
Documents
Details
Specifications
General
| Spec | Value |
|---|---|
| Rated Capacity | 2.4 yd³ 1.83 m³ |
| Weight | 2000 lb 907 kg |
| Upper Jaw Width | 44 in 1118 mm |
| Lower Jaw Width | 58 in 1480 mm |
| Maximum Jaw Opening | 87 in 2210 mm |
| Outside Jaw Dimension – Closed | 26 in 665 mm |
| Outside Jaw Dimension – Open | 88 in 2244 mm |
| Tip Radius | 46 in 1165 mm |
| Jaw Depth | 10 in 246 mm |
| Tip Thickness | 0.51 in 13 mm |
| Wear Plate Thickness | 0.51 in 13 mm |
| Wrapper Thickness | 0.39 in 10 mm |
