Caterpillar

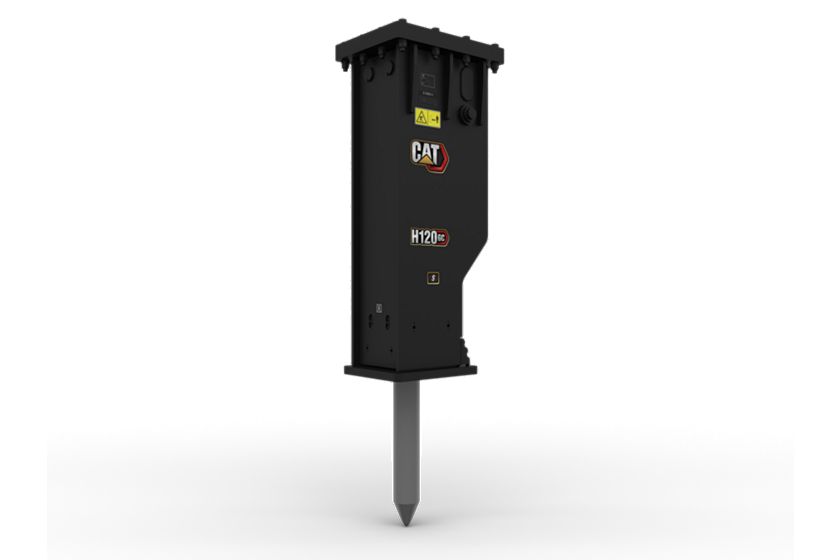

H120 GC S Hammer

Name: H120 GC S Hammer
Brand: Caterpillar

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Media

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Reliable and Durable Design

Easy to Maintain

Easy to Operate

You Are Supported

Specifications

US Metric

General

Spec	Value
Impact Energy Class	2950 ft-lb 4000 J
Blows per Minute	400-800 400-800
Maximum Operating Weight	3927 lb 1785 kg
Minimum Operating Weight	3859 lb 1754 kg
Maximum Carrier Weight	55115 lb 25 t
Minimum Carrier Weight	39683 lb 18 t
Tool Shaft Diameter	5.31 in 135 mm
Maximum Operating Pressure	2610 psi 18000 kPa
Minimum Operating Pressure	2320 psi 16000 kPa
Rated Flow – Maximum	40 gal/min 151 l/min
Rated Flow – Minimum	33 gal/min 125 l/min
