Cat

H160 GC S Hammer

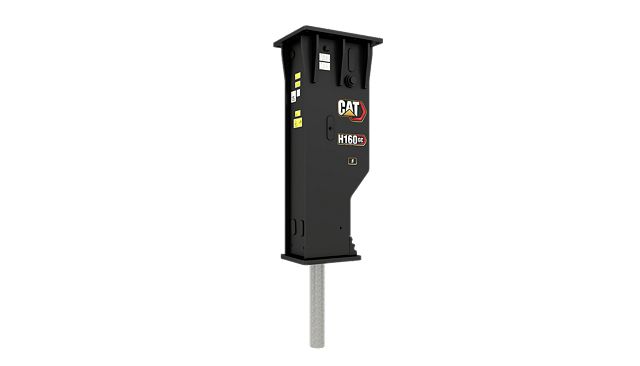

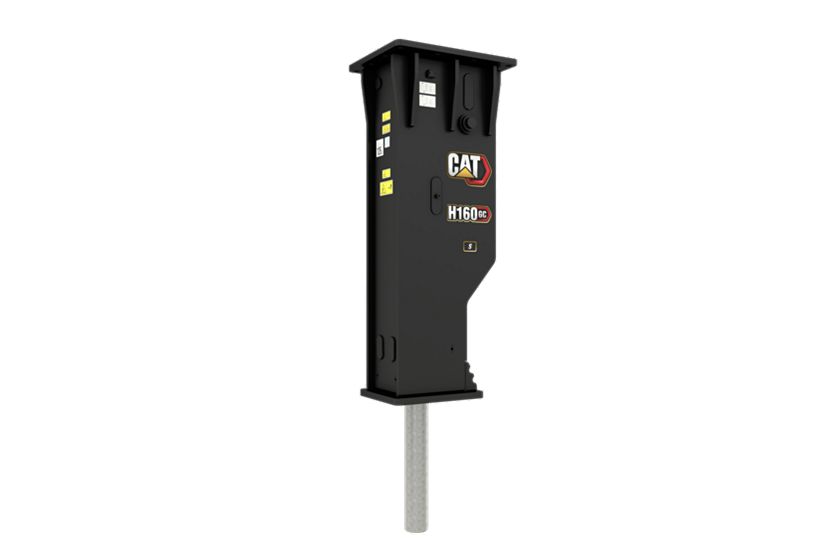

Name: H160 GC S Hammer
Brand: Cat

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Media

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Name
This field is for validation purposes and should be left unchanged.

Features

Reliable and Durable Design

Easy to Maintain

Easy to Operate

You Are Supported

Specifications

US Metric

General

Spec	Value
Impact Energy Class	7500 ft-lb 10170 J
Blows per Minute	200-450 200-450
Maximum Operating Weight	5471.4 lb 2487 kg
Minimum Operating Weight	6810 lb 3090 kg
Maximum Carrier Weight	99200 lb 45 t
Minimum Carrier Weight	72700 lb 33 t
Tool Shaft Diameter	4.64 in 118 mm
Maximum Operating Pressure	2610 psi 18000 kPa
Minimum Operating Pressure	2320 psi 15985 kPa
Rated Flow – Maximum	68 gal/min 260 l/min
Rated Flow – Minimum	50 gal/min 190 l/min
