Caterpillar

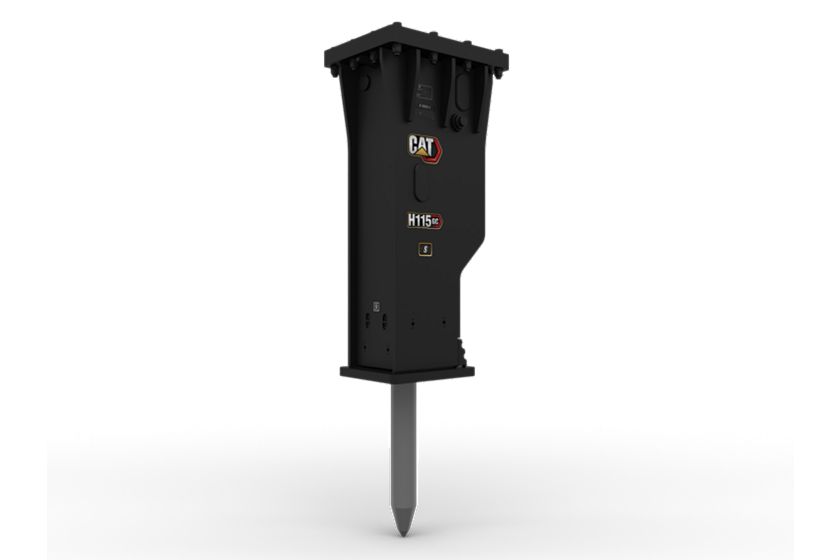

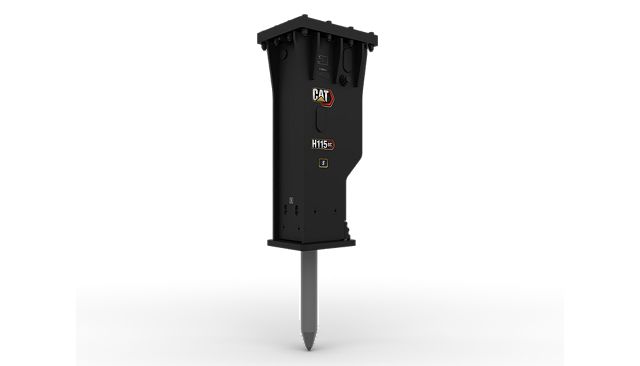

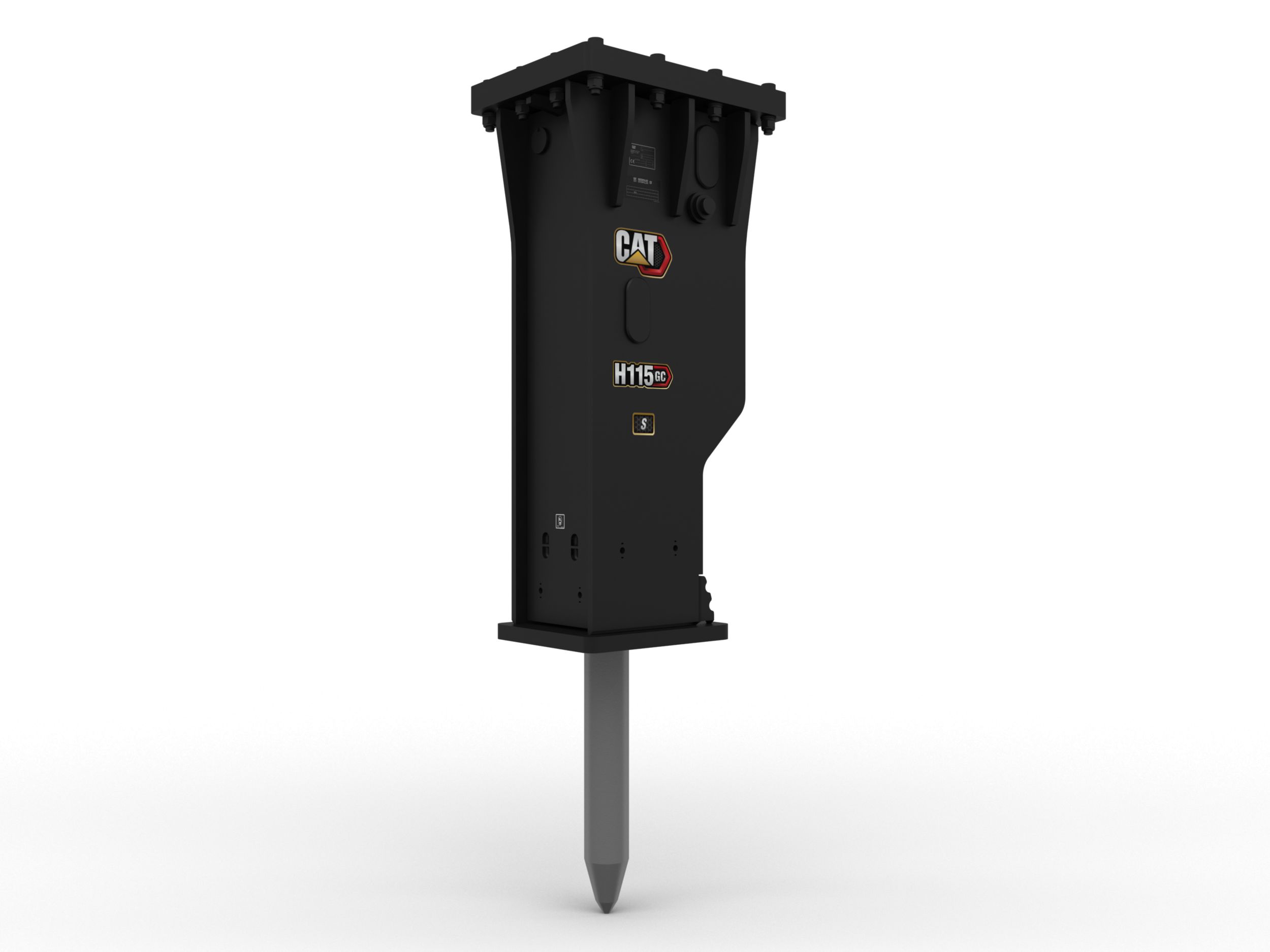

H115 GC S Hammer

Name: H115 GC S Hammer
Brand: Caterpillar

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Media

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Reliable and Durable Design

Easy to Maintain

Easy to Operate

You Are Supported

Specifications

US Metric

General

Spec	Value
Impact Energy Class	2212 ft-lb 3000 J
Blows per Minute	450-800 450-800
Maximum Operating Weight	2928.2 lb 1331 kg
Minimum Operating Weight	2875 lb 1307 kg
Maximum Carrier Weight	39683 lb 18 t
Minimum Carrier Weight	28660 lb 13 t
Tool Shaft Diameter	4.72 in 120 mm
Maximum Operating Pressure	2465 psi 17000 kPa
Minimum Operating Pressure	2175 psi 15000 kPa
Rated Flow – Maximum	32 gal/min 120 l/min
Rated Flow – Minimum	24 gal/min 90 l/min
