Caterpillar

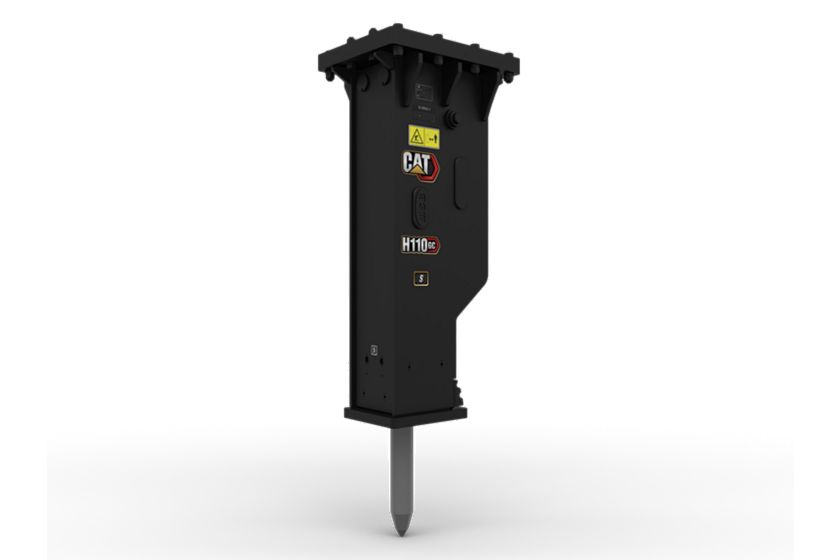

H110 GC S Hammer

Name: H110 GC S Hammer
Brand: Caterpillar

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Media

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Reliable and Durable Design

Easy to Maintain

Easy to Operate

You Are Supported

Specifications

US Metric

General

Spec	Value
Impact Energy Class	1475 ft·lbf 2000 J
Blows per Minute	450-650 450-650
Minimum Operating Weight	2721 lb 1237 kg
Maximum Operating Weight	2776 lb 1262 kg
Minimum Rated Flow	21 gal/min 80 l/min
Maximum Rated Flow	26 gal/min 100 l/min
Minimum Operating Pressure	2030 psi 14000 kPa
Maximum Operating Pressure	2320 psi 16000 kPa
Tool Shaft Diameter	2.83 in 72 mm
Minimum Carrier Weight	24251 lb 11 t
Maximum Carrier Weight	35724 lb 16 t
