Cat

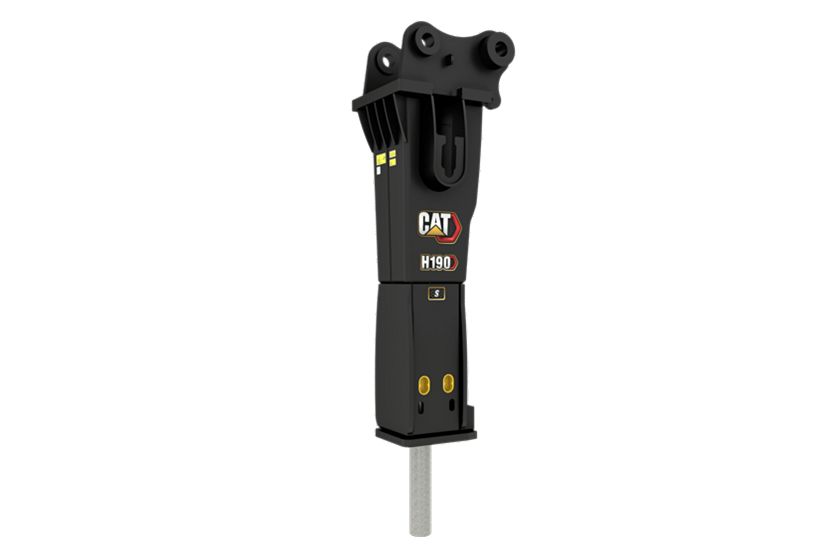

H190 S Hydraulic Hammer

The H190 S hammer is a valuable asset in quarries and bridge demolition, as well as the largest-scale demolition projects.

Media

H190 S

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Increase Production

Lower Maintance Costs

Focus on Your Business, Not Your Hammer

Easy to Operate

Spend Less Time on Maintenance

Next Level Technology

Auto-Lube is Standard

Beyond Your Purchase

Specifications

US Metric

General

Spec	Value
Impact Energy Class	13000 ft·lbf 17727 J
Blows per Minute	370 -530 370 -530
Minimum Operating Pressure	2175 psi 15000 kPa
Maximum Operating Pressure	2320 psi 16000 kPa
Minimum Carrier Weight	94798 lb 43000 kg
Maximum Carrier Weight	176368 lb 80000 kg
Minimum Rated Flow	74 gal/min 280 l/min
Maximum Rated Flow	101 gal/min 380 l/min
Tool Shaft Diameter	7.5 in 190 mm
Minimum Operating Weight	11440 lb 5200 kg
Maximum Operating Weight	12430 lb 5650 kg
