Caterpillar

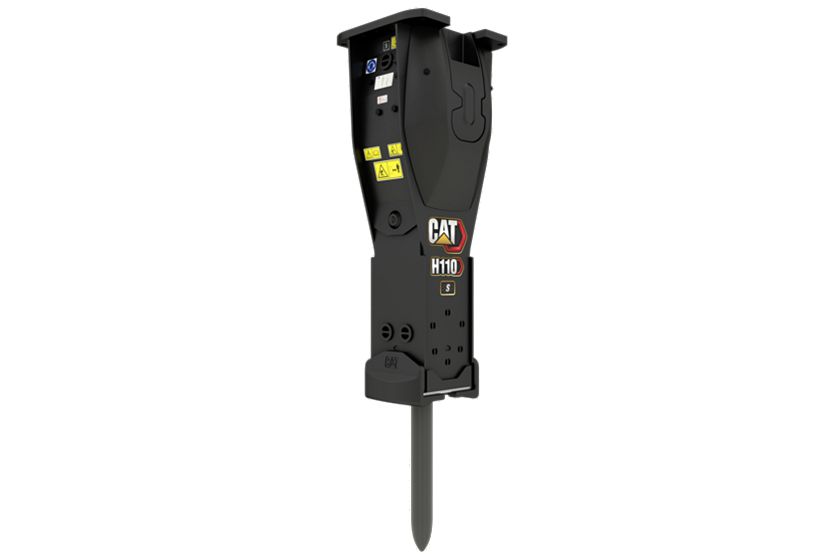

H110 S Hydraulic Hammer
Paired with your Cat excavator, the H110 S hammer is the ideal choice for quarries and demolition jobs, or in general construction where a breaker is needed for ground excavation.
Media
Photos
Videos
Details
Specifications
General
Spec | Value |
---|---|
Impact Energy Class | 2000 ft·lbf 2712 J |
Blows per Minute | 450-1000 450-1000 |
Minimum Operating Weight | 2095 lb 950 kg |
Maximum Operating Weight | 2381 lb 1080 kg |
Minimum Rated Flow | 16 gal/min 60 l/min |
Maximum Rated Flow | 32 gal/min 120 l/min |
Minimum Operating Pressure | 2176 psi 15000 kPa |
Maximum Operating Pressure | 2321 psi 16000 kPa |
Tool Shaft Diameter | 3.92 in 99.5 mm |
Minimum Carrier Weight | 24300 lb 11 t |
Maximum Carrier Weight | 39700 lb 18 t |
