Caterpillar

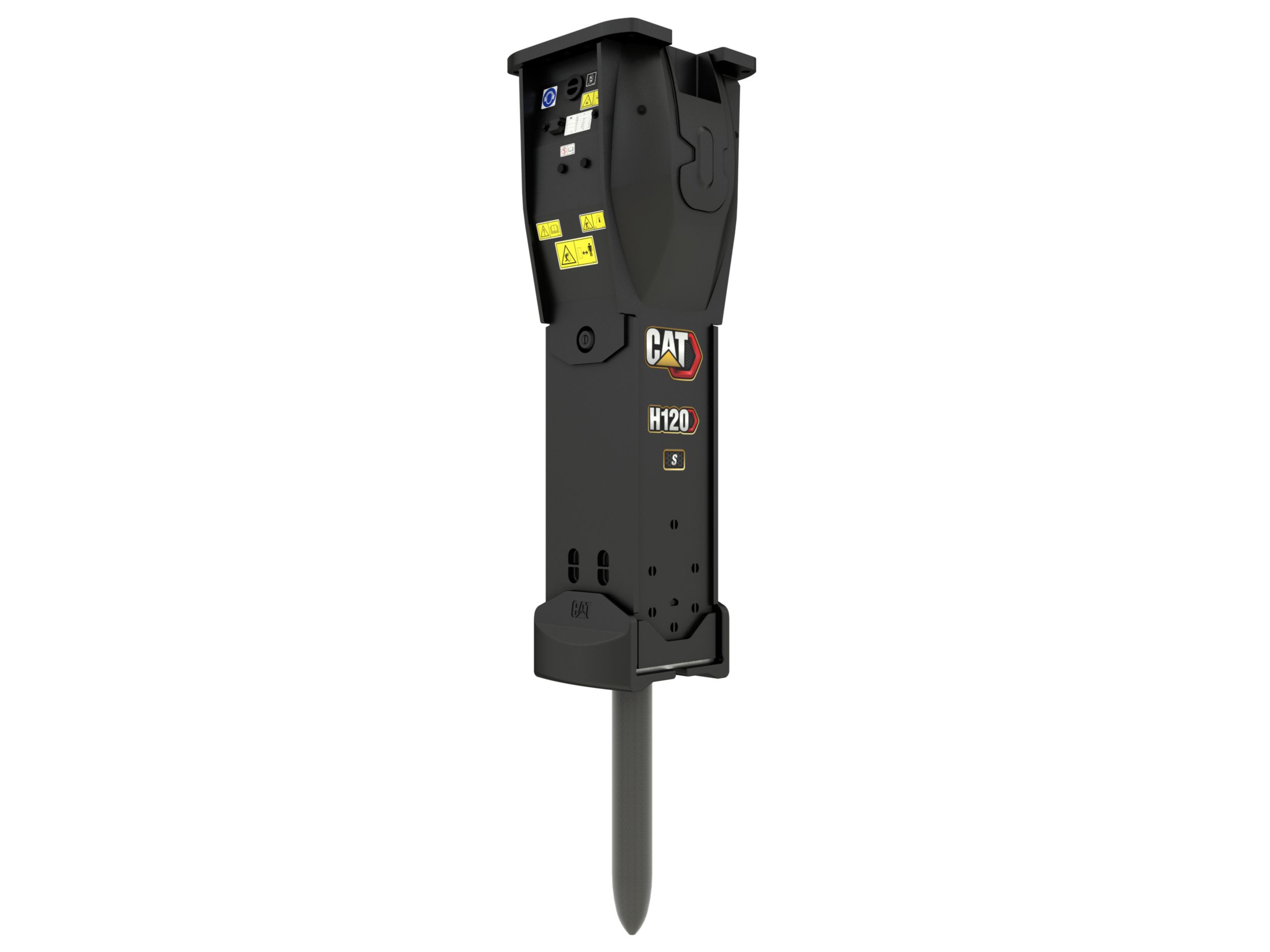

H120 S Hydraulic Hammer

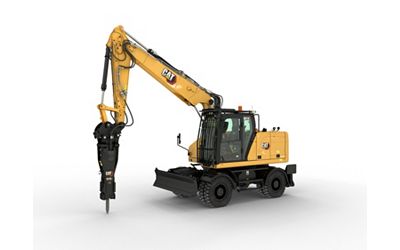

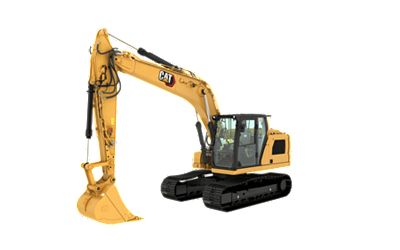

Paired with your Cat excavator, the H120 S hammer is the ideal choice for quarries and demolition jobs, or in general construction where a breaker is needed for ground excavation.
Media
Photos
Videos
Details
Specifications
General
Spec | Value |
---|---|
Impact Energy Class | 3500 ft·lbf 4745 J |
Blows per Minute | 350-620 350-620 |
Maximum Operating Weight | 4101 lb 1860 kg |
Minimum Operating Weight | 3263 lb 1480 kg |
Minimum Carrier Weight | 35300 lb 16012 kg |
Maximum Carrier Weight | 59500 lb 26989 kg |
Tool Shaft Diameter | 4.7 in 119.5 mm |
Maximum Operating Pressure | 2176 psi 15000 kPa |
Minimum Operating Pressure | 2031 psi 14000 kPa |
Maximum Rated Flow | 45 gal/min 170 l/min |
Minimum Rated Flow | 26 gal/min 100 l/min |
