Cat

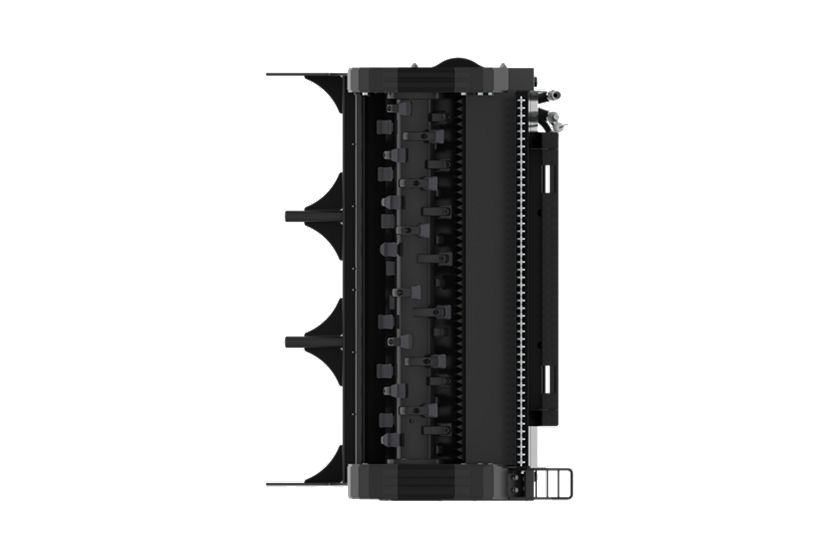

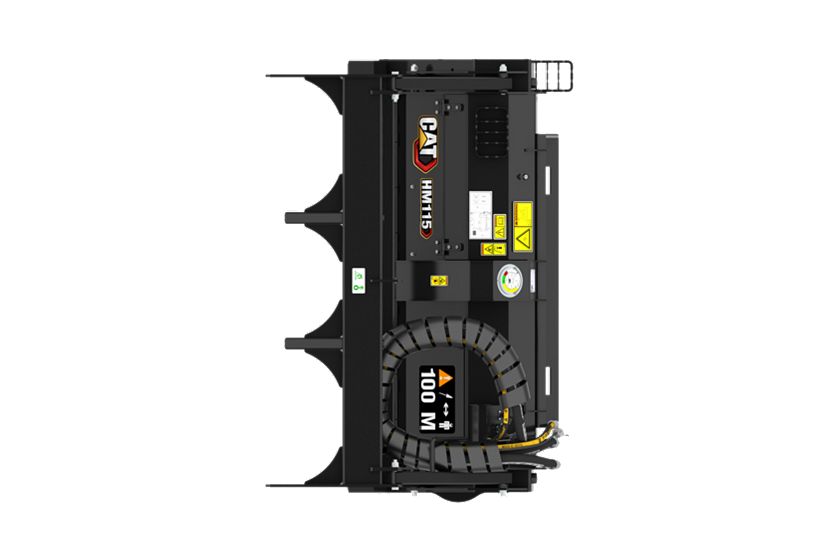

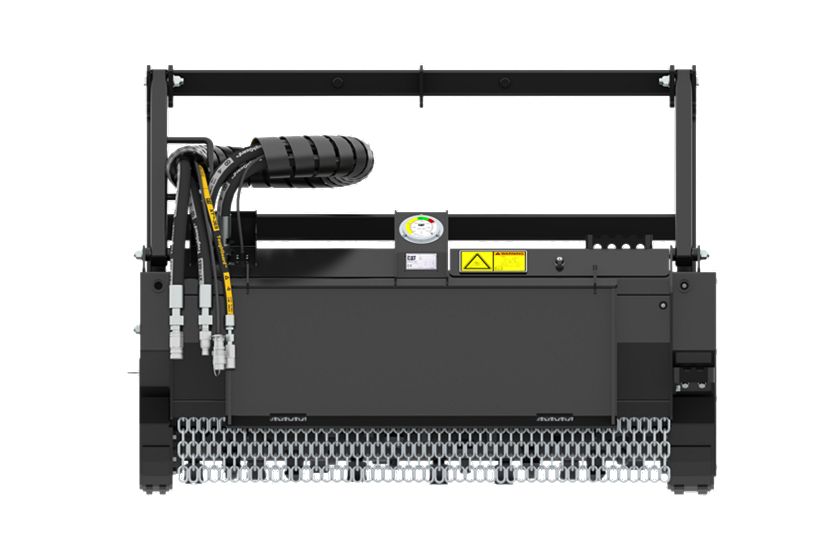

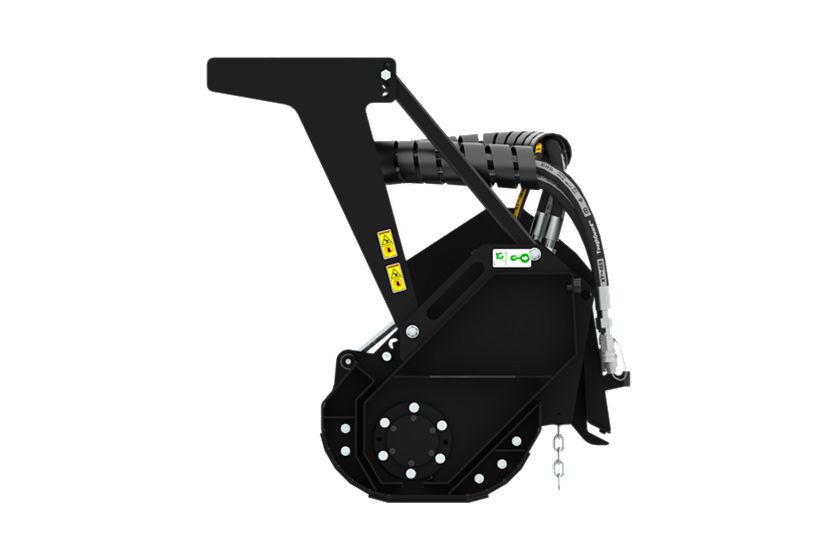

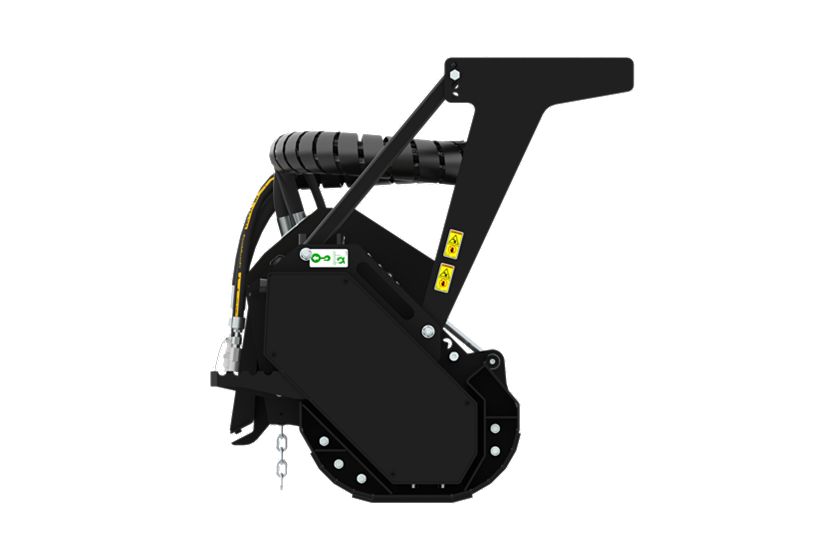

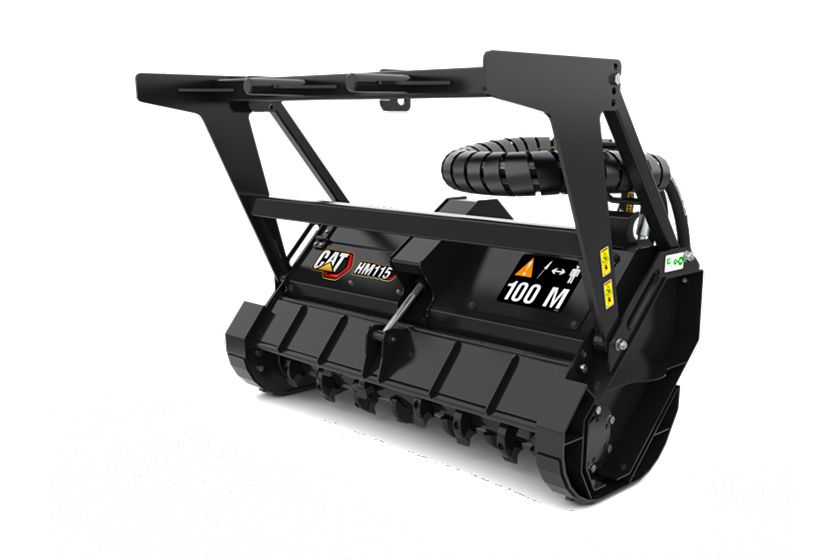

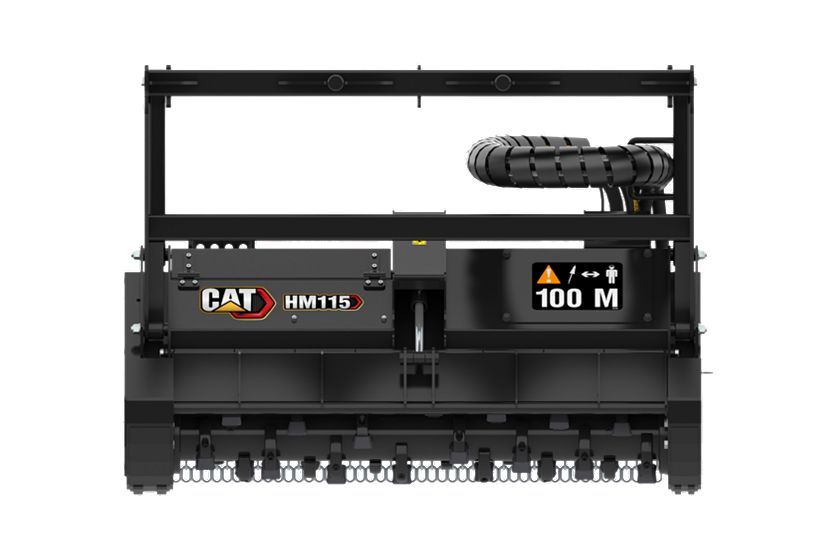

HM115 Standard Flow Mulcher

Name: HM115 Standard Flow Mulcher
Brand: Cat

High-performance cutting and mulching of vegetation and overgrowth.

Media

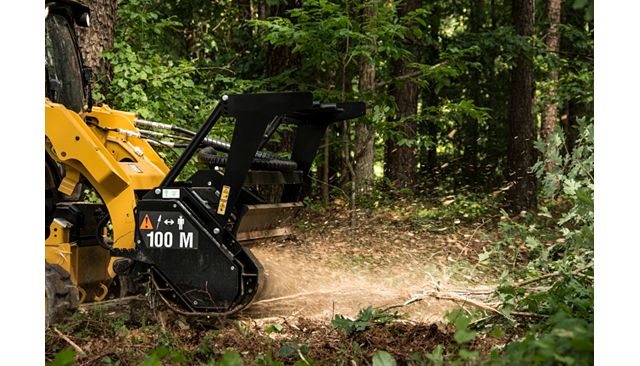

Cat® C Series Mulcher at Work

Cat® C Series Mulcher Overview

Cat® C Series Standard Flow Mulcher Maintenance Tips

Cat® C Series Standard Flow Mulcher Operating Tips

Cat® 299D2 XHP Compact Track Loader with Mulcher Customer Story (Northamptonshire, UK)

Cat® Mulcher Features and Benefits

Cat® Mulcher for Skid Steer Loaders and Compact Track Loaders | Overview

Model shown represents features on all Cat® Mulchers except where indicated.

Application

High Performance Mulching

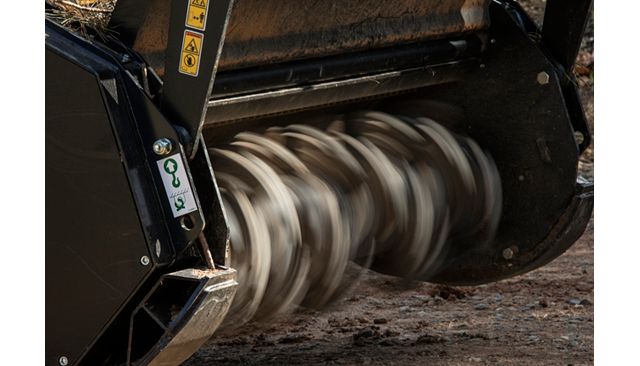

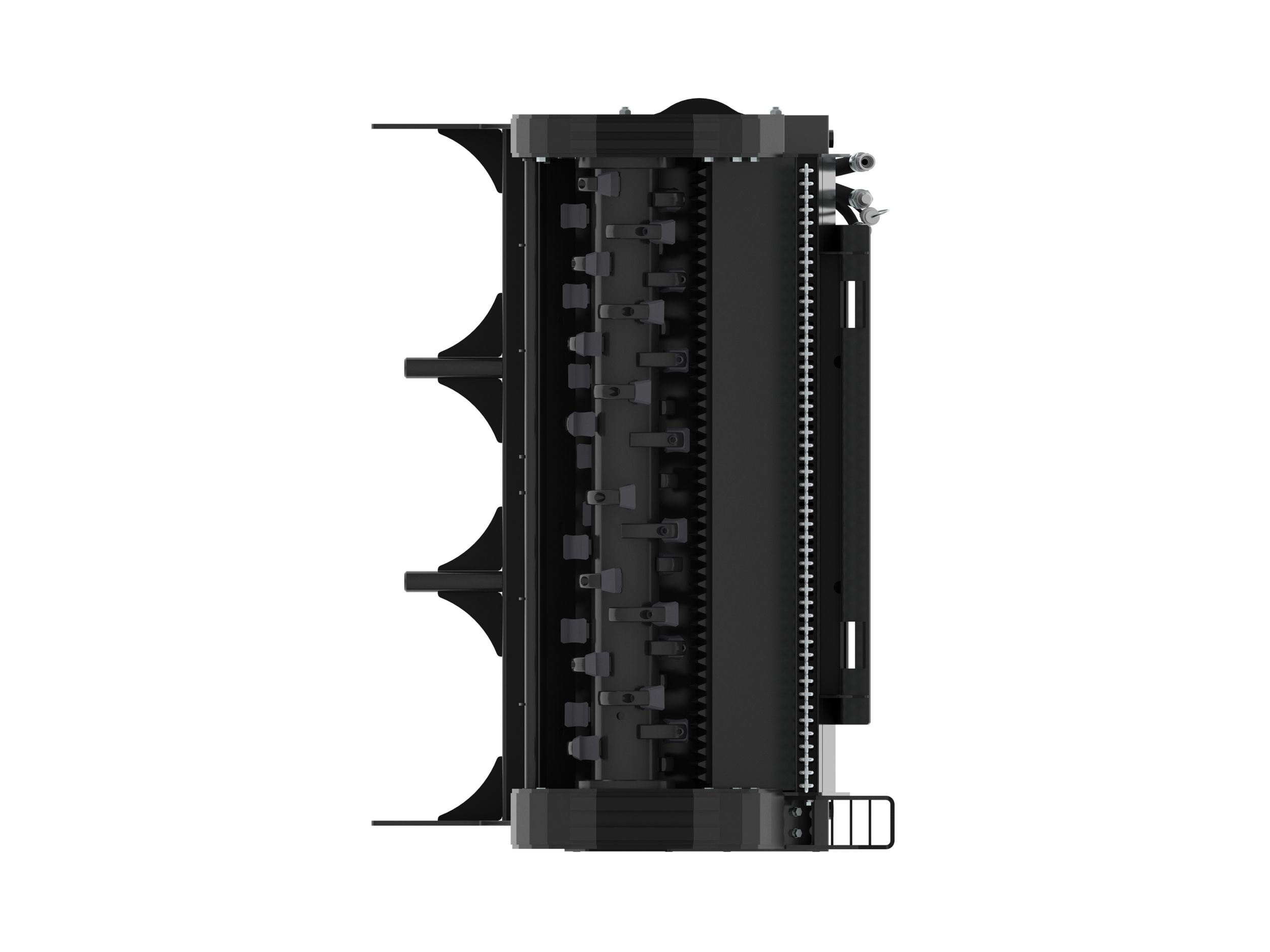

Rugged Mulching Head

Dual Speed Hydraulic Motor

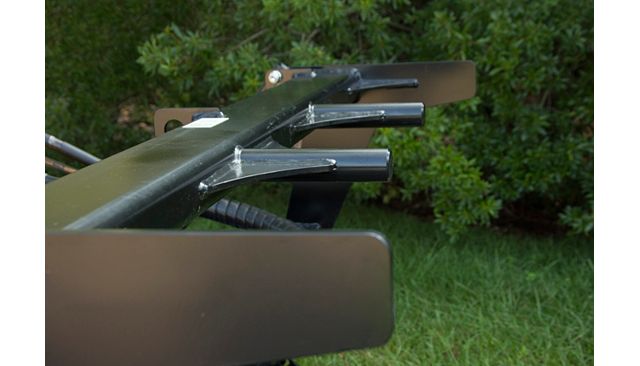

Adjustable Push Frame

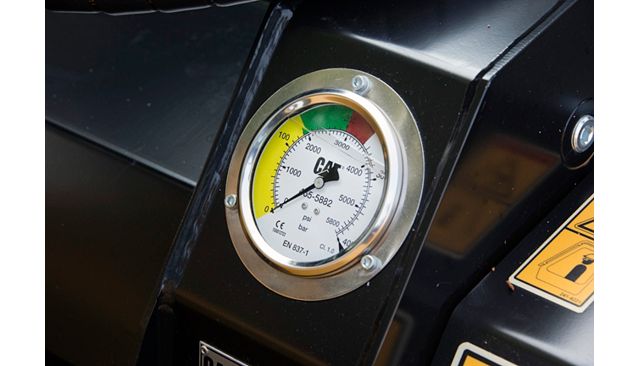

Color-Coded Pressure Gauge

Hydraulically Operated Front Hood

Rear Chain Guard Protection

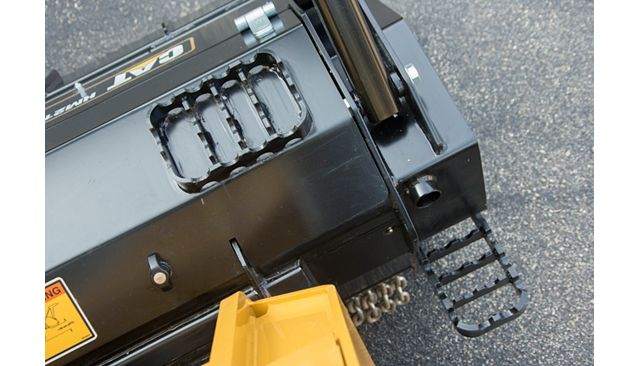

Serrated Steps

Lockable Service Panel

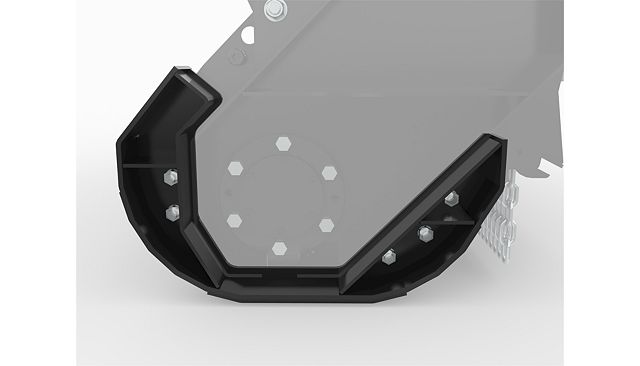

Replaceable Skid Shoes

Tool Mounted Operation and Maintenance Manual (OMM) Holder

US Metric

Spec	Value
Overall Width	69.2 in 1758 mm
Working Width	58.3 in 1480 mm
Length	48 in 1219 mm
Overall Height	50.4 in 1281 mm
Weight	1803.4 lb 818 kg
Drive Method	V-Belt V-Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	76-87 L/min (20-23 gpm) 76-87 L/min (20-23 gpm)
Optimal Hydraulic Pressure	200-230 bar (2900-3336 psi) 200-230 bar (2900-3336 psi)
Drum Speed	2570-2940 RPM 2570-2940 RPM
Fixed Teeth per Drum	36 36
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	2.8 in 70 mm
