Cat

HM316 High Flow XPS Hydraulics Mulcher

Name: HM316 High Flow XPS Hydraulics Mulcher
Brand: Cat

High-performance cutting and mulching of vegetation and overgrowth.

Media

Cat® C Series Mulcher at Work

Cat® C Series Mulcher Overview

Cat® C Series High Flow Mulcher Maintenance Tips

Cat® C Series High Flow Mulcher Operating Tips

Cat® 299D2 XHP Compact Track Loader with Mulcher Customer Story (Northamptonshire, UK)

Cat® Mulcher Features and Benefits

An Attachment for Every Job – Cat® Work Tool Attachments

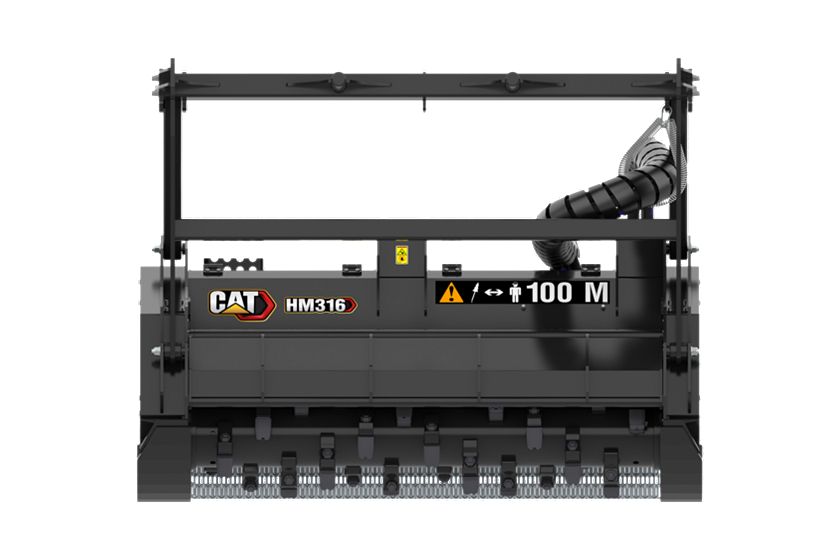

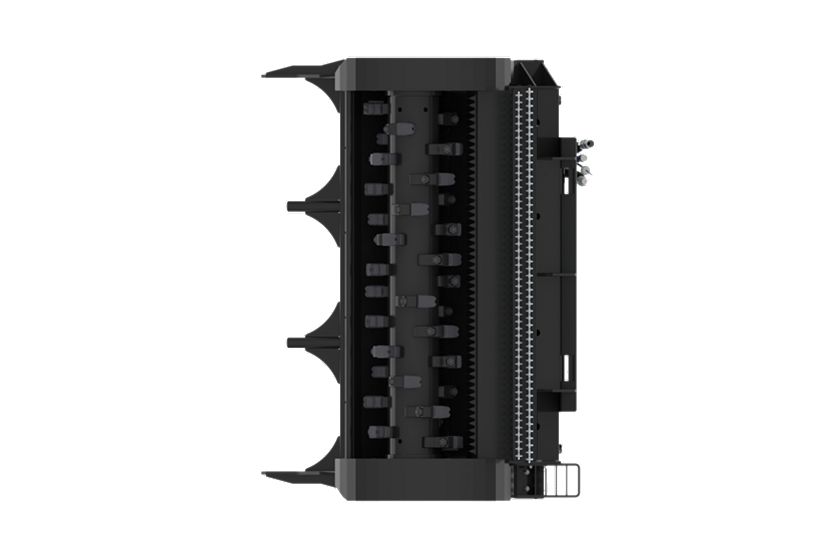

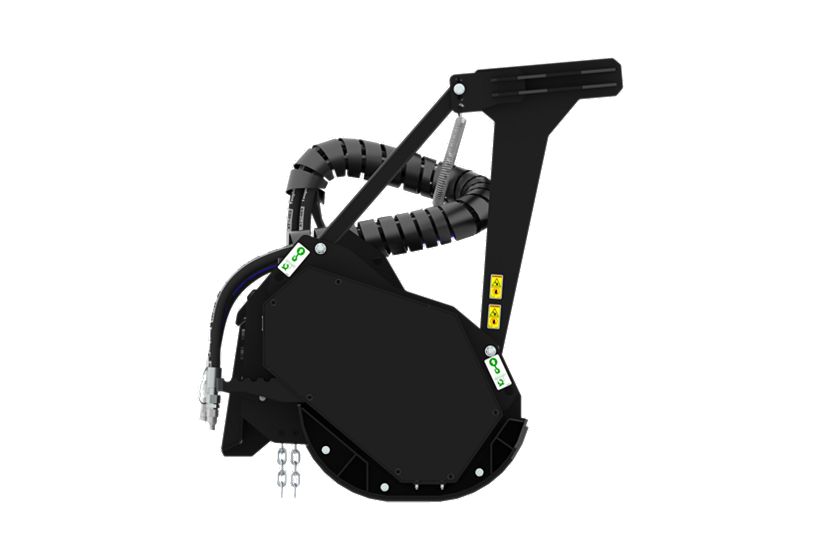

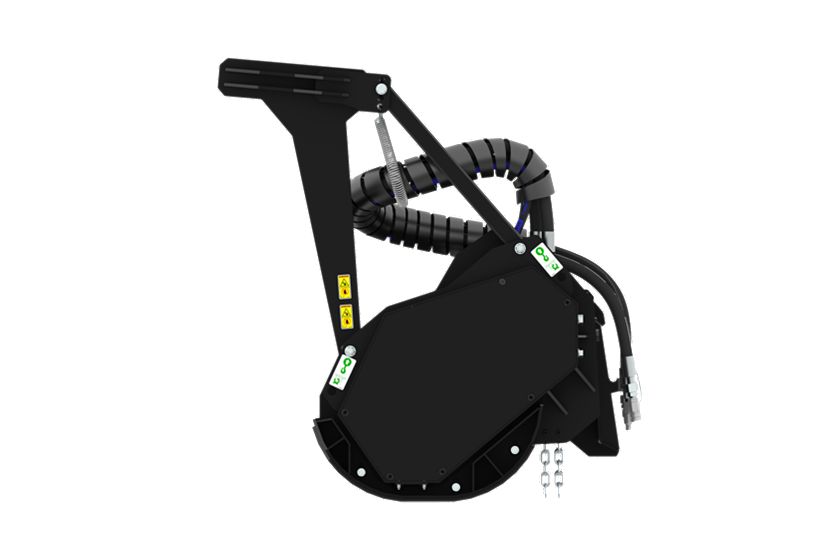

360° view. Double click on the image to zoom in on any area of the product.

Application

High Performance Mulching

Rugged Mulching Head

Dual Speed Hydraulic Motor

Adjustable Push Frame

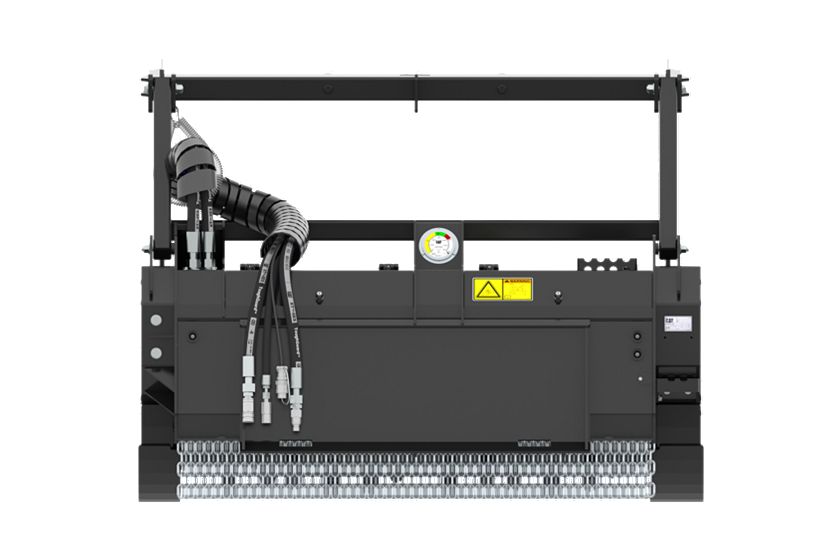

Color-Coded Pressure Gauge

Hydraulically Operated Front Hood

Rear Chain Guard Protection

Serrated Steps

Lockable Service Panel

Adjustable and Replaceable Skid Shoes

Tool Mounted Operation and Maintenance Manual (OMM) Holder

US Metric

Spec	Value
Overall Width	74.1 in 1882 mm
Working Width	62.3 in 1582 mm
Length	53.3 in 1355 mm
Overall Height	58.3 in 1481 mm
Weight	2958.6 lb 1342 kg
Drive Method	Polychain Belt Polychain Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	120-125 L/min (31-33 gpm) 120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure	200-280 bar (2900-4061 psi) 200-280 bar (2900-4061 psi)
Drum Speed	2100-2400 RPM 2100-2400 RPM
Fixed Teeth per Drum	34 34
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	4.1 in 105 mm
