Cat

HM418 High Flow XHP Hydraulics Mulcher

Name: HM418 High Flow XHP Hydraulics Mulcher
Brand: Cat

High-performance cutting and mulching of vegetation and overgrowth.

Media

Cat® C Series Mulcher at Work

Cat® C Series Mulcher Overview

Cat® C Series High Flow Mulcher Maintenance Tips

Cat® C Series High Flow Mulcher Operating Tips

Cat® 299D2 XHP Compact Track Loader with Mulcher Customer Story (Northamptonshire, UK)

Cat® Mulcher Features and Benefits

Cat® Mulcher for Skid Steer Loaders and Compact Track Loaders | Overview

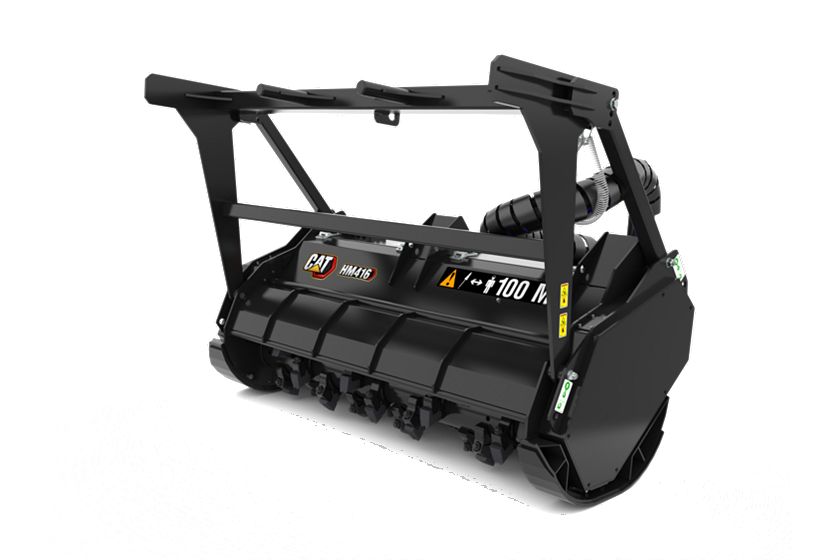

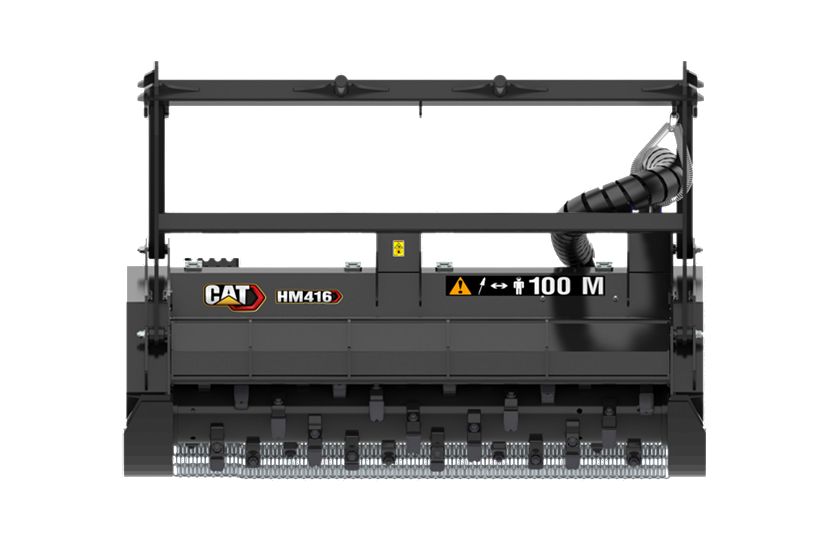

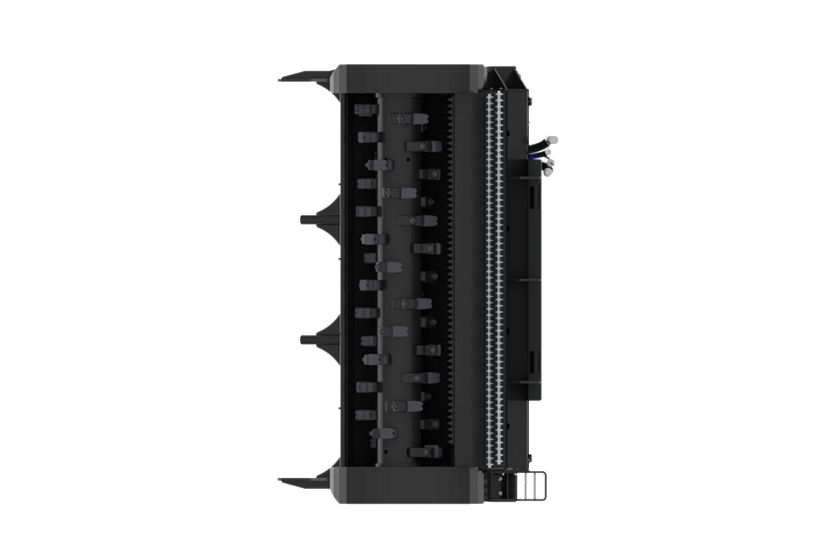

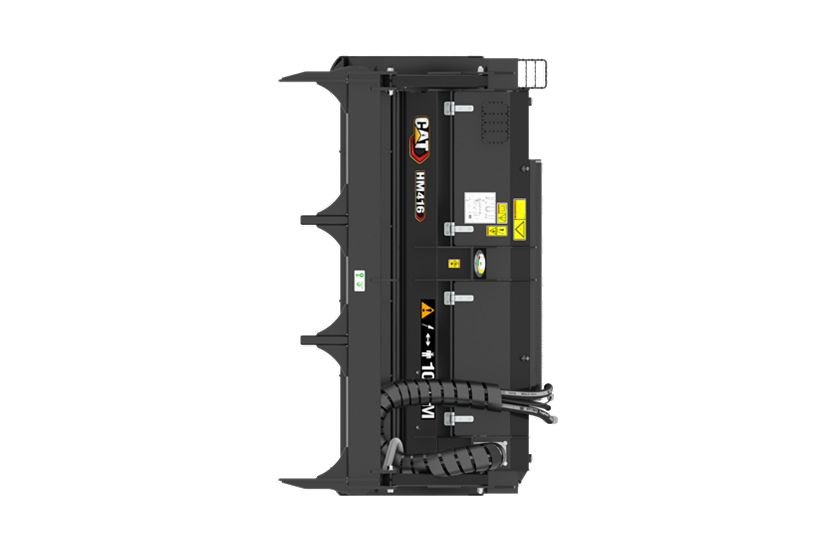

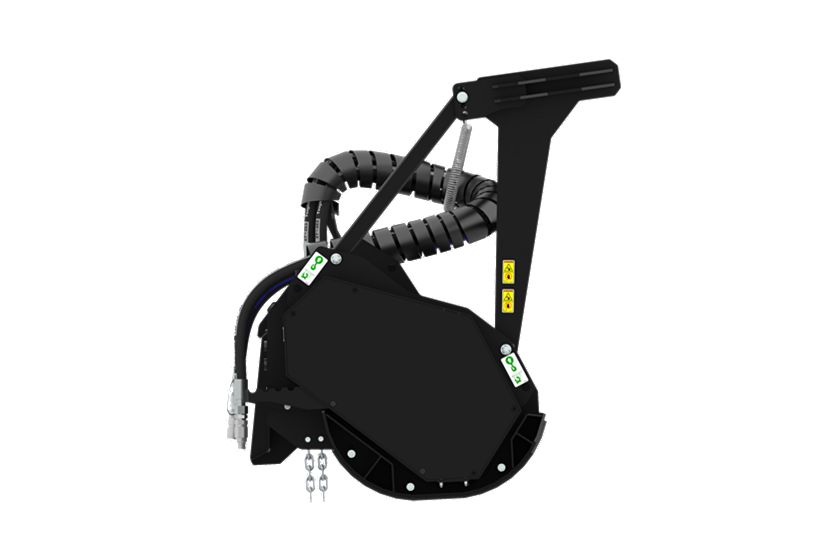

Model shown represents features on all Cat® Mulchers except where indicated.

Application

High Performance Mulching

Rugged Mulching Head

Dual Speed Hydraulic Motor

Adjustable Push Frame

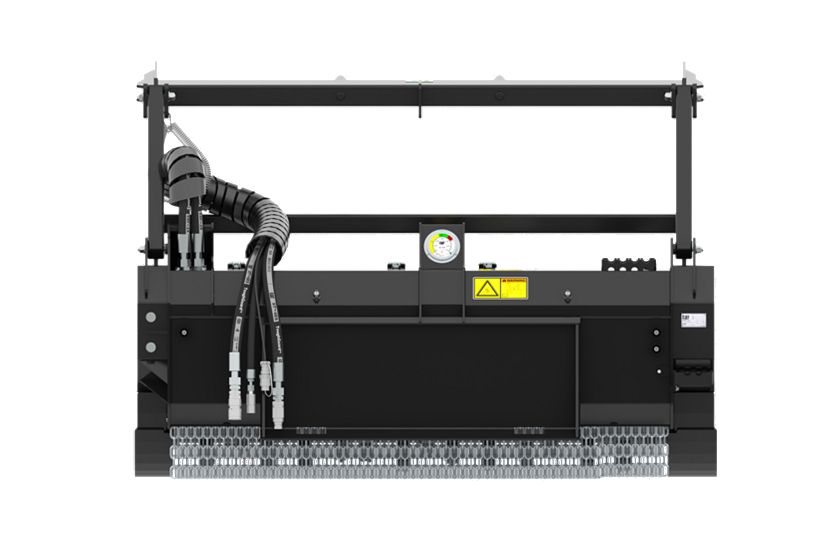

Color-Coded Pressure Gauge

Hydraulically Operated Front Hood

Rear Chain Guard Protection

Serrated Steps

Lockable Service Panel

Adjustable and Replaceable Skid Shoes

Tool Mounted Operation and Maintenance Manual (OMM) Holder

US Metric

Spec	Value
Overall Width	83.5 in 2122 mm
Working Width	67.2 in 1707 mm
Length	53.3 in 1355 mm
Overall Height	58.3 in 1481 mm
Weight	3196.7 lb 1450 kg
Drive Method	Polychain Belt Polychain Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	XHP / XE XHP / XE
Optimal Hydraulic Flow	150-155 L/min (40-41 gpm) 150-155 L/min (40-41 gpm)
Optimal Hydraulic Pressure	200-278 bar (2900-4061 psi) 200-278 bar (2900-4061 psi)
Drum Speed	2140-2210 RPM 2140-2210 RPM
Fixed Teeth per Drum	38 38
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	4.1 in 105 mm
