Cat

HM210 Mulcher

High-performance cutting and mulching of vegetation and overgrowth.

Media

Photos

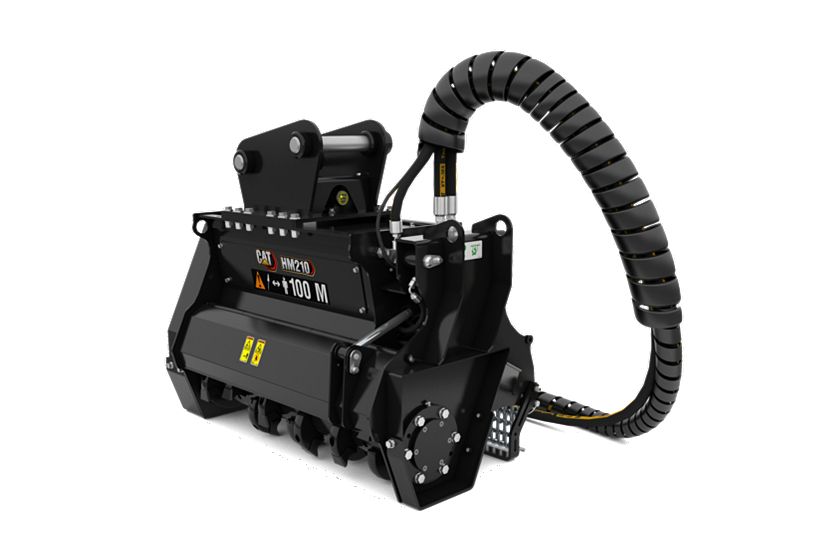

Studio Shot
Studio Shot

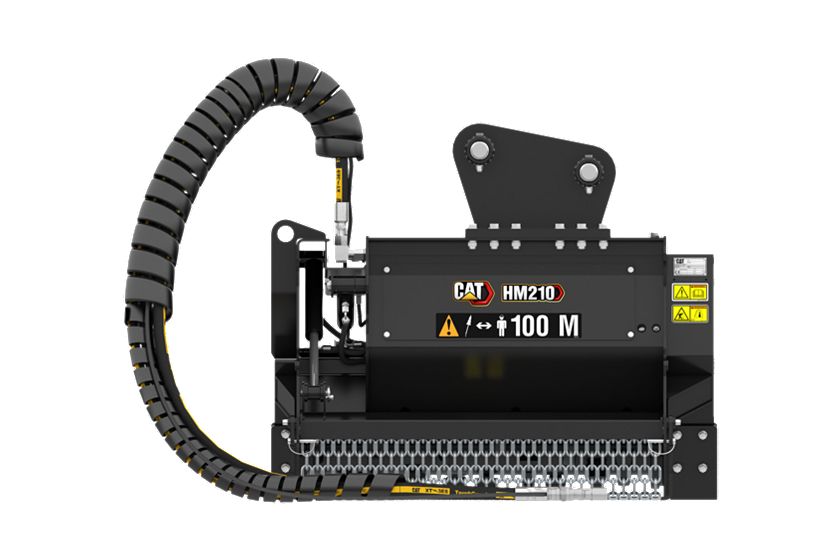

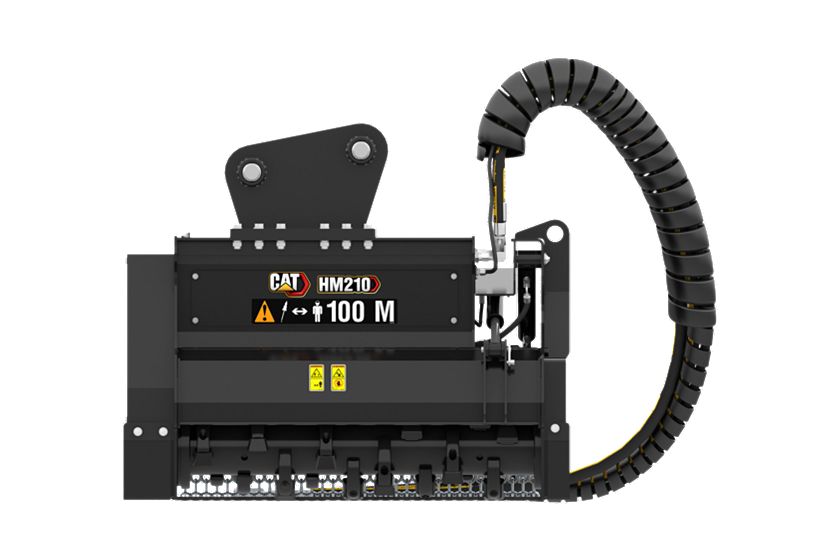

Front View
Front View

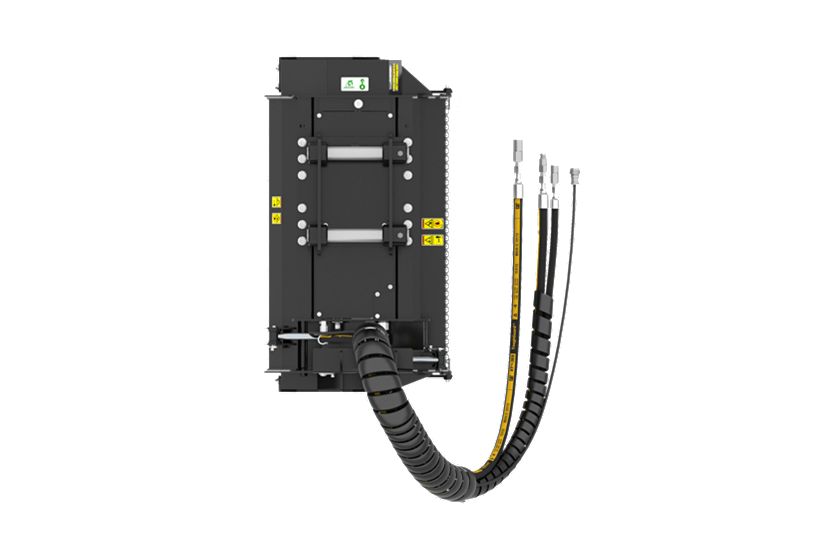

Top View
Top View

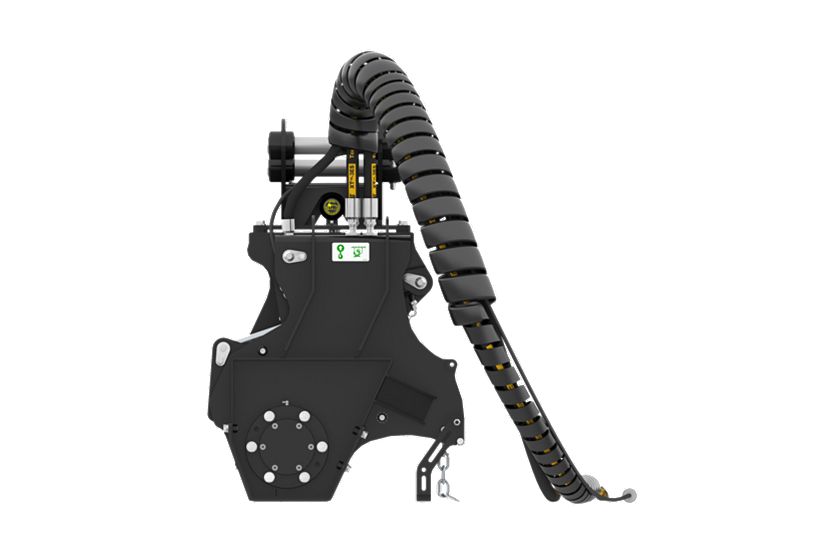

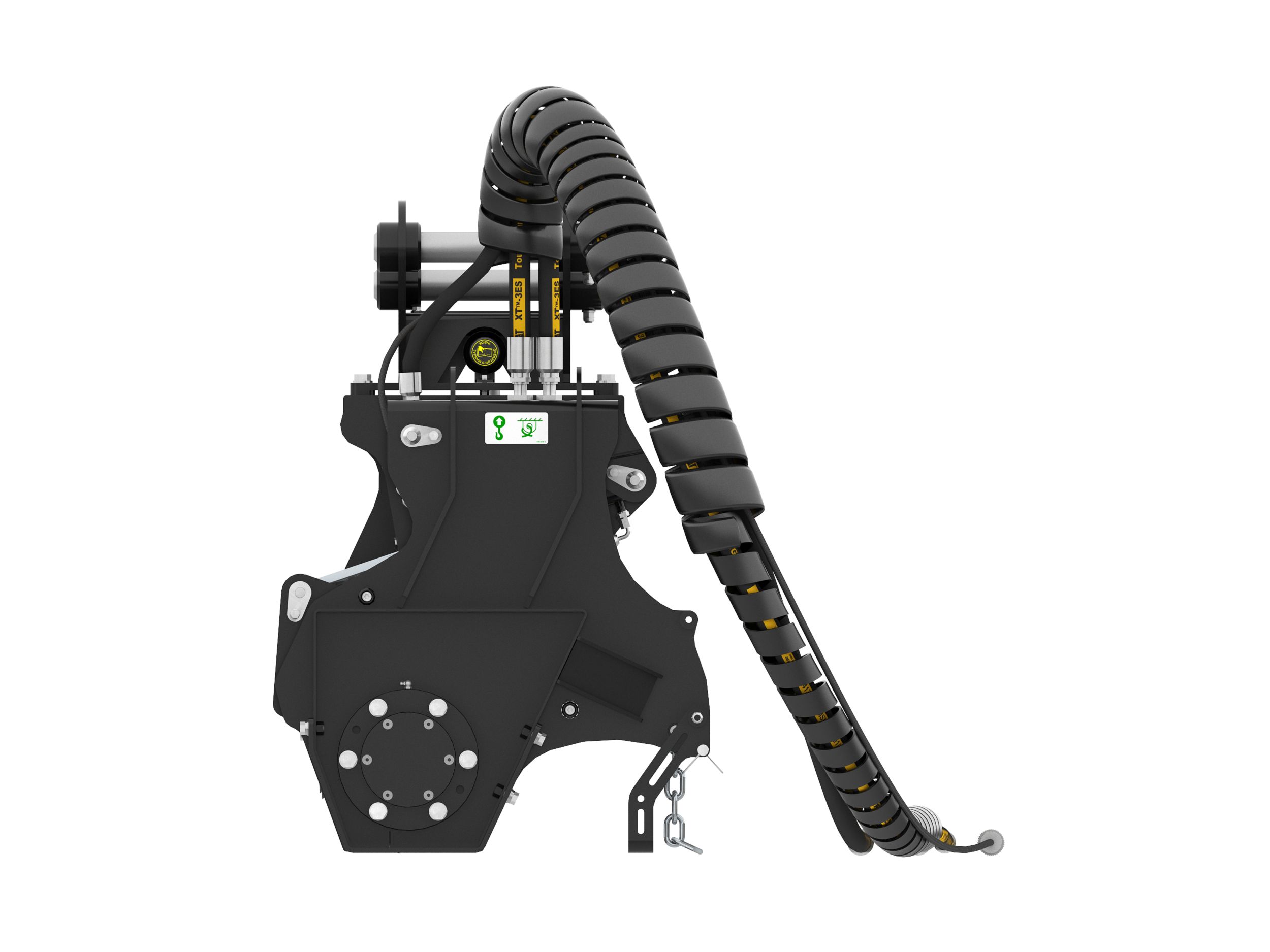

Left View
Left View
Rear View
Rear View

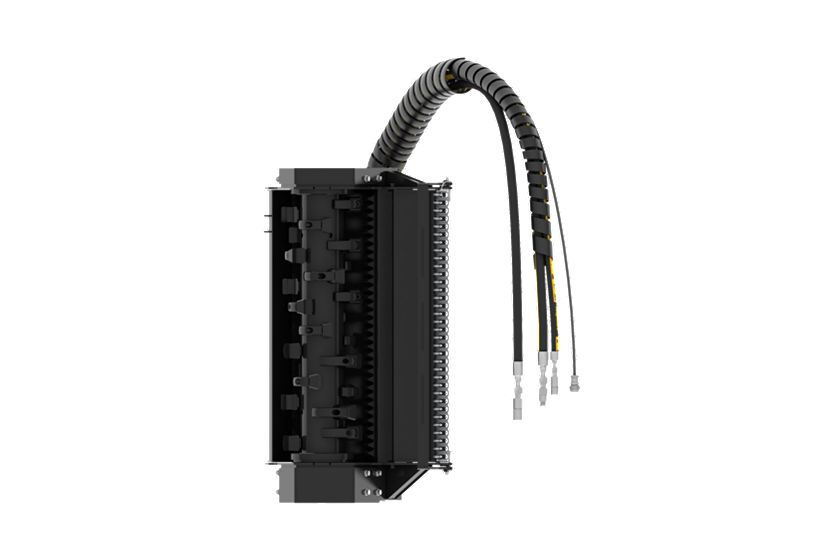

Bottom View
Bottom View

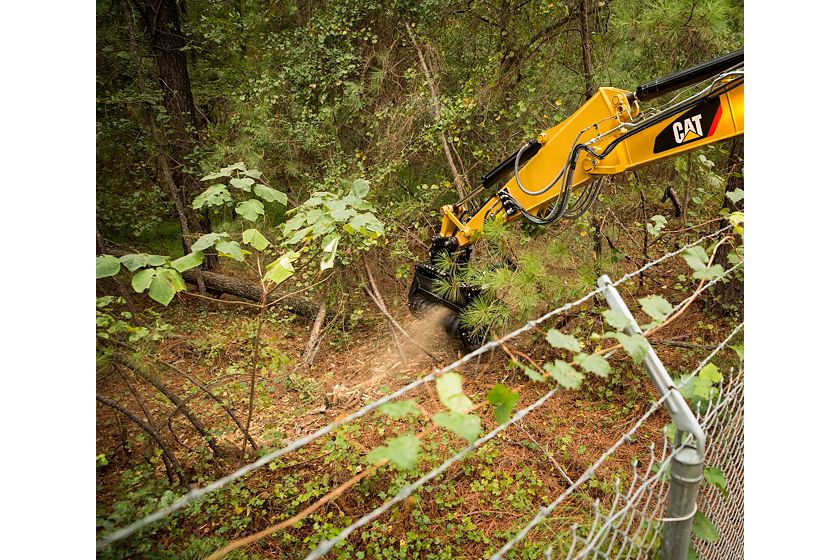

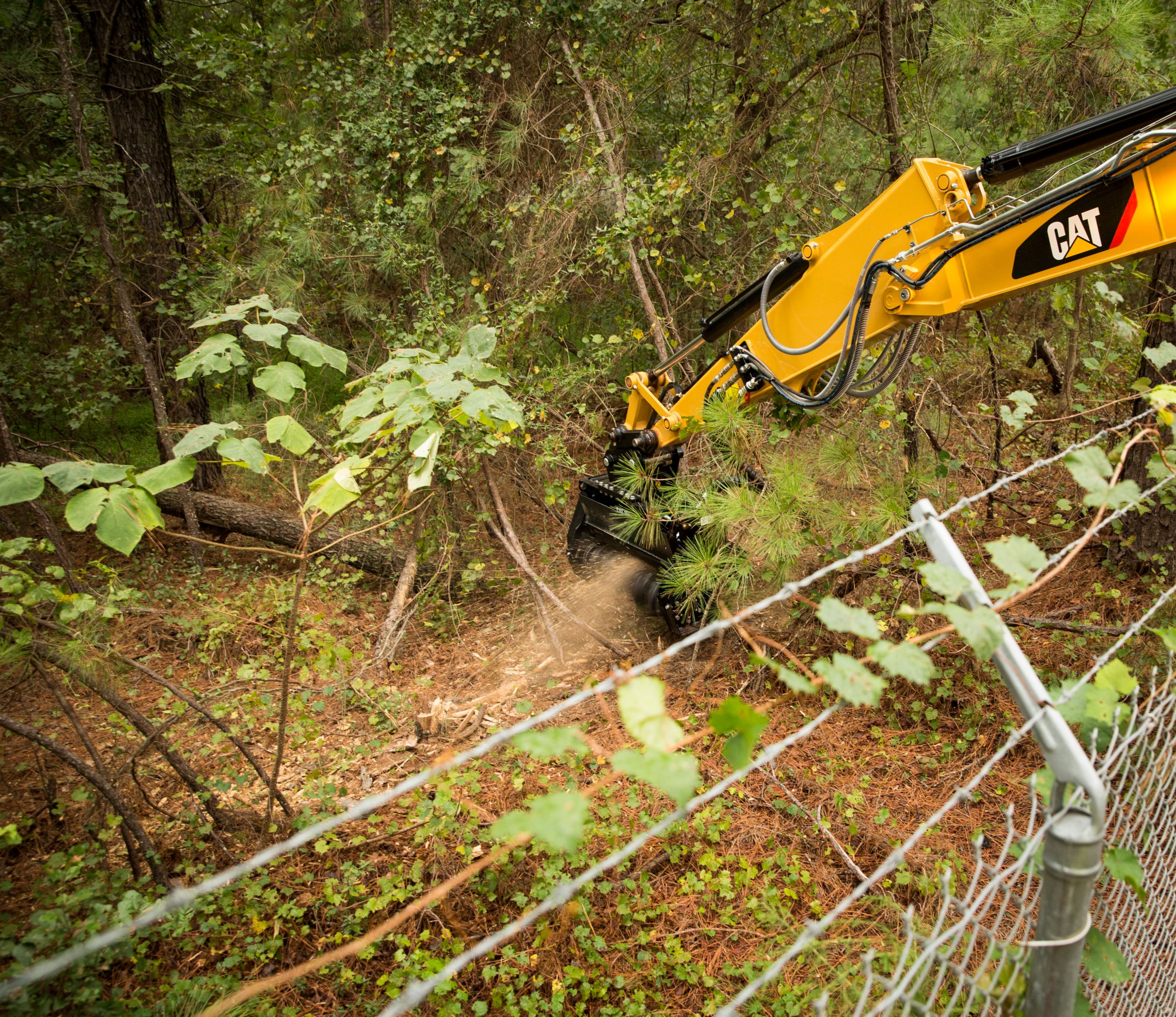

Cat® HM210 Mulcher Clearing Brush on Over a Fence
Cat® HM210 Mulcher Clearing Brush on Over a Fence

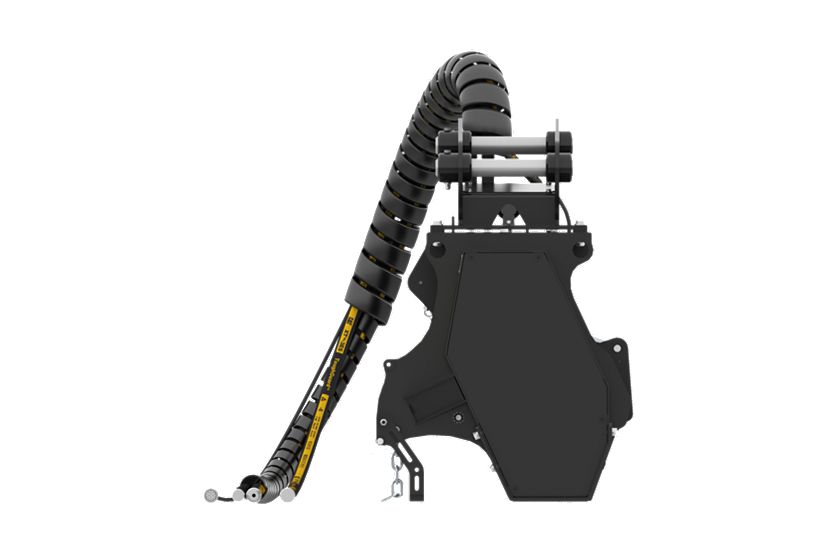

Right View
Right View

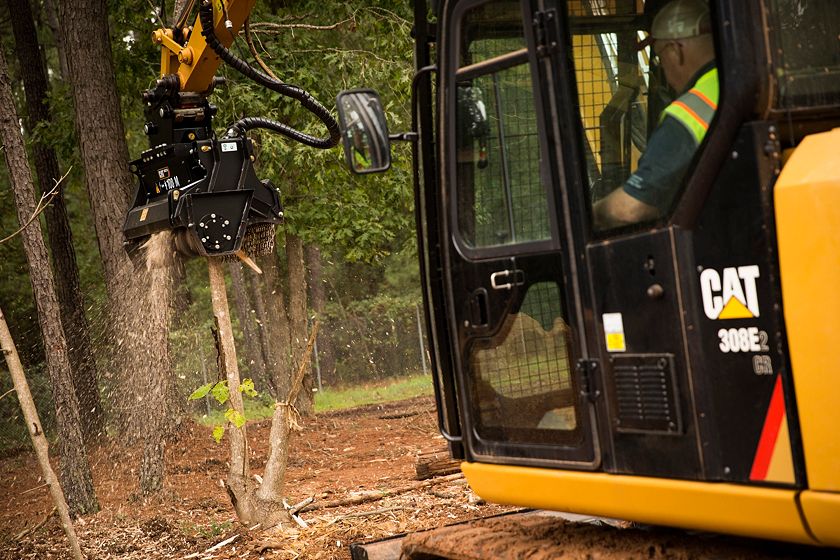

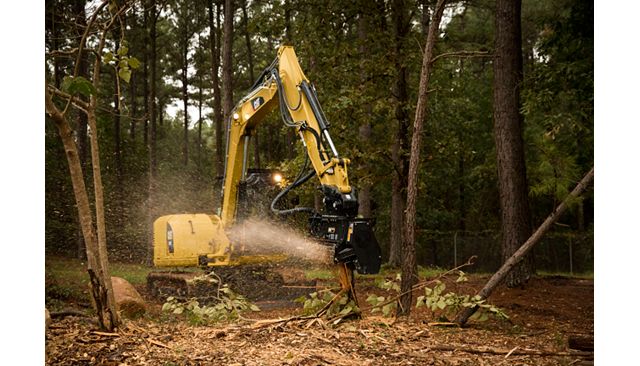

Cat® HM210 Mulcher in Working Application
Cat® HM210 Mulcher in Working Application

Videos

Cat® Mini Excavator Mulcher at Work
Cat® Mini Excavator Mulcher Maintenance Tips
Cat® Mini Excavator Mulcher Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Mulchers except where indicated.

Documents

Features

Application

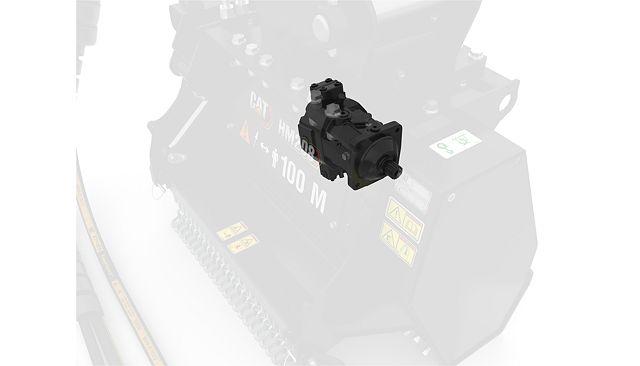

Variable Displacement Piston Motor

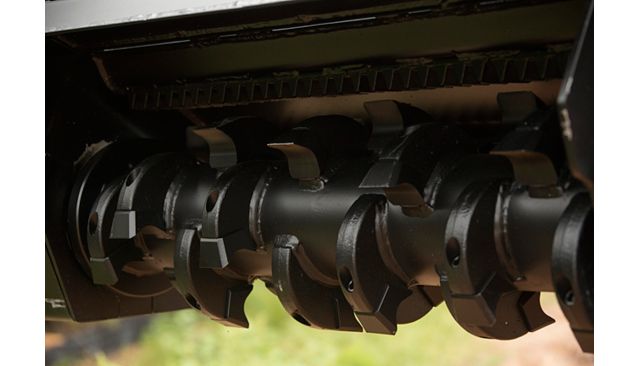

Balanced Drum

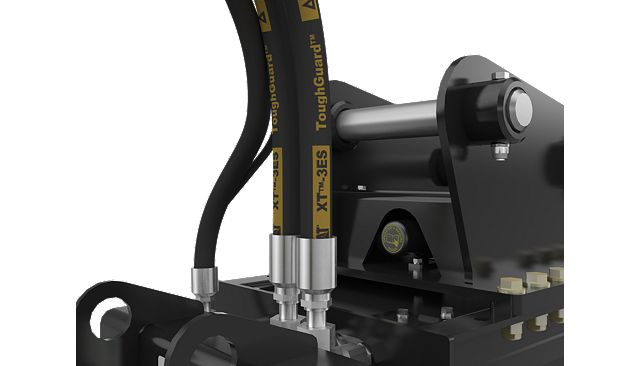

Cat® XTC Hydraulic Hoses

Dual Hydraulic Doors

Integrated Stand

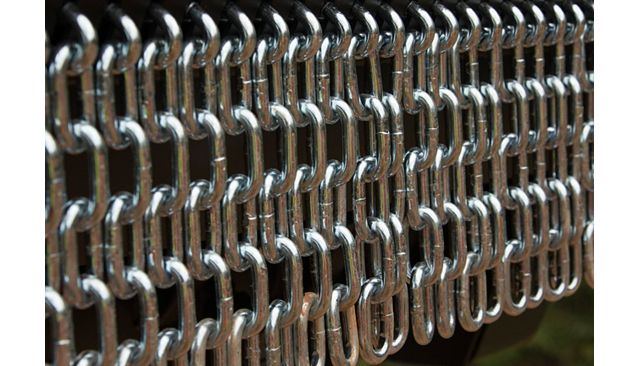

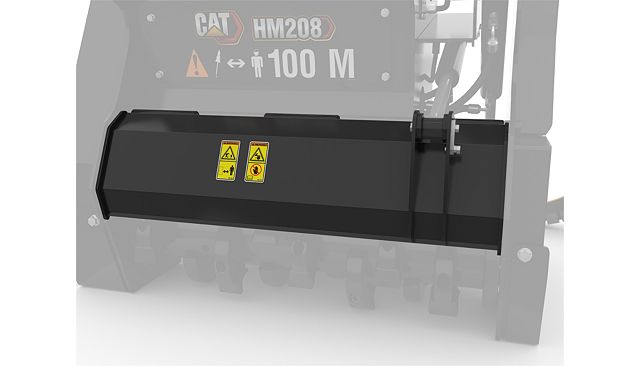

Rear Chain Guard

Bolt-On Replaceable Skid Shoes

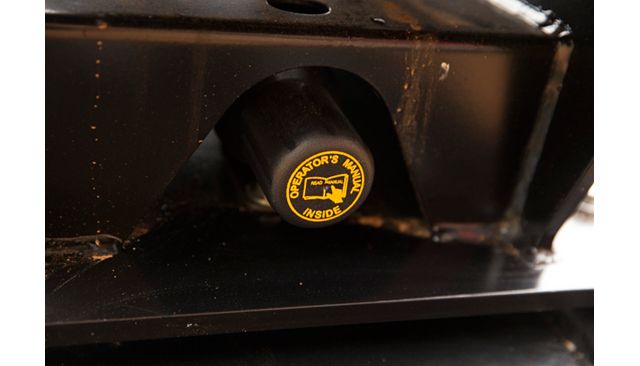

Tool Mounted Operation and Maintenance Manual Holder

Details

Specifications

Spec Value
Overall Width 48.3 in 1226 mm
Working Width 39.8 in 1012 mm
Length 28.1 in 714 mm
Overall Height 41.9 in 1065 mm
Weight 1190.5 lb 540 kg
Drive Method V-Belt Drive V-Belt Drive
Motor Dual Speed Axial Piston Dual Speed Axial Piston
Required Hydraulics Standard Flow Standard Flow
Optimal Hydraulic Flow 70-130 L/min (18-34 gpm) 70-130 L/min (18-34 gpm)
Optimal Hydraulic Pressure 150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed 2770-2890 RPM 2770-2890 RPM
Fixed Teeth per Drum 24 24
Maximum Cutting Diameter 120-200 mm (5-8 in) 120-200 mm (5-8 in)
