Caterpillar

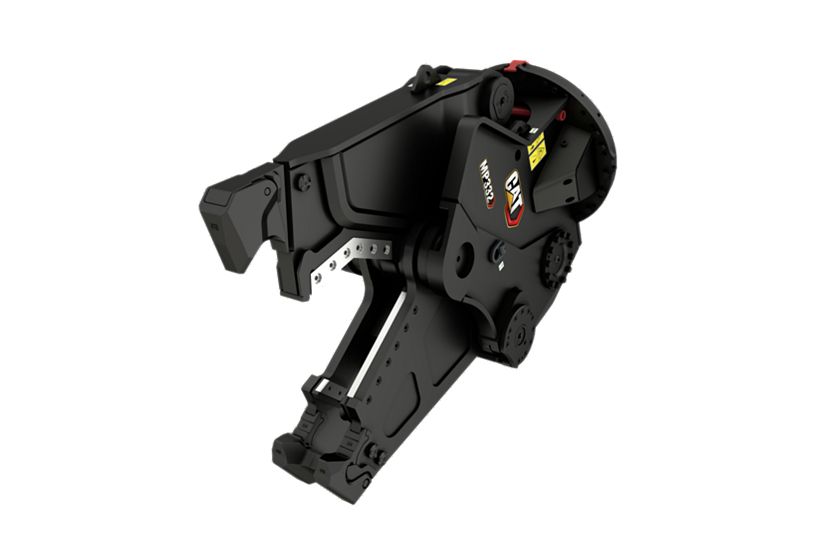

MP332 Concrete Cutter Jaw

Name: MP332 Concrete Cutter Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Concrete Cutter jaws crush reinforced concrete, and cut structural steel. Reduce elevated, heavily reinforced concrete decking, or combined concrete/steel structures.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

Phone
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.9 s 1.9 s
Cycle Time – Close	1.3 s 1.3 s
Crushing Force – Primary Cutter	478.6 Sh Ton 4258 kN
Crushing Force – Cutter Tip	204.1 Sh Ton 1816 kN
Crushing Force – Tooth Tip	153.7 Sh Ton 1367 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	4786 psi 33000 bar
Jaw Circuit – Max. Oil Flow	280 L/min 74 gpm
Rotation Circuit – Max. Oil Pressure	16000 kPa 2321 psi
Rotation Circuit – Max. Oil Flow	40 L/min 10.6 gpm

Dimensions - Jaw

Spec	Value
Jaw Depth	34.2 in 869 mm
Cutter Length	496 mm 19.5 in
Jaw Opening – Maximum	36.5 in 927 mm
Jaw Width – Fixed	353 mm 13.9 in
Jaw Width – Moveable	140 mm 5.5 in

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	3221 kg 7101.1 lb
Weight – Jaw Only	2976.2 lb 1350 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	32 tons 32 tons
Excavator Maximum	50 tons 50 tons
