Caterpillar

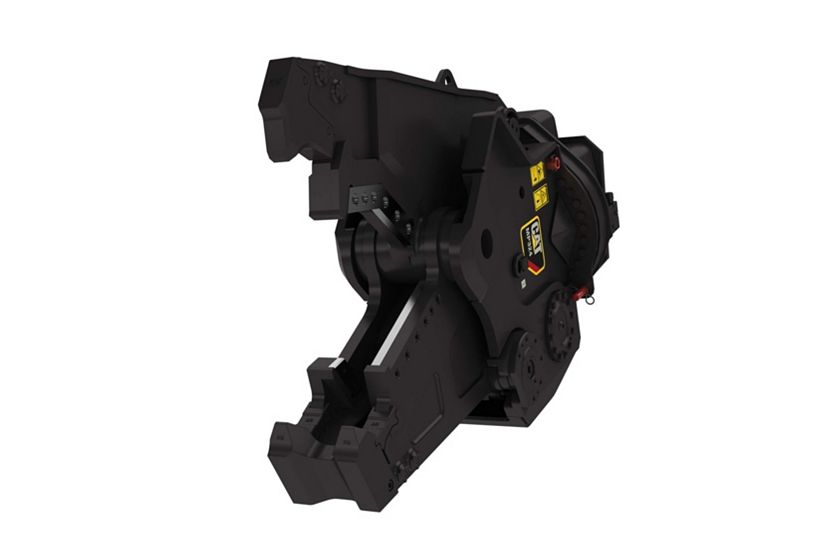

MP324 Concrete Cutter Jaw

Name: MP324 Concrete Cutter Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Concrete Cutter jaws crush reinforced concrete, and cut structural steel. Reduce elevated, heavily reinforced concrete decking, or combined concrete/steel structures.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

Phone
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.8 s 1.8 s
Cycle Time – Close	1.2 s 1.2 s
Crushing Force – Primary Cutter	406.3 Sh Ton 3615 kN
Crushing Force – Cutter Tip	187.5 Sh Ton 1668 kN
Crushing Force – Tooth Tip	127.3 Sh Ton 1133 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	4786 psi 33000 kPa
Jaw Circuit – Max. Oil Flow	59.4 gpm 225 L/min
Rotation Circuit – Max. Oil Pressure	2031 psi 14000 bar
Rotation Circuit – Max. Oil Flow	40 L/min 11 gpm

Dimensions - Jaw

Spec	Value
Jaw Depth	753 mm 29.6 in
Cutter Length	439 mm 17.3 in
Jaw Opening – Maximum	826 mm 32.5 in
Jaw Width – Fixed	13.5 in 344 mm
Jaw Width – Moveable	4.8 in 122 mm

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	5915 lb 2683 kg
Weight – Jaw Only	2288.4 lb 1038 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	24 tons 24 tons
Excavator Maximum	35 tons 35 tons
