Caterpillar

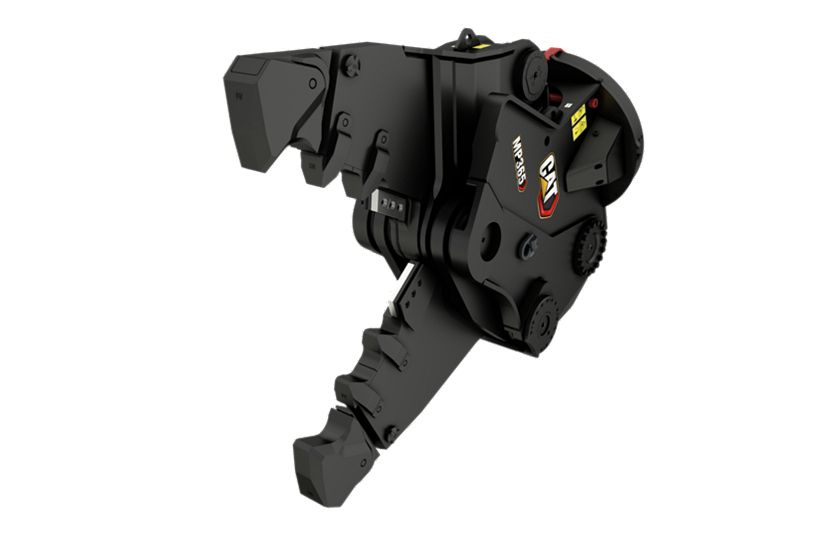

MP365 Demolition Jaw

Name: MP365 Demolition Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Demolition jaws concentrate force to crack the largest concrete. Any strength concrete, with and without rebar is reduced to manageable size.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Name
This field is for validation purposes and should be left unchanged.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	2.1 s 2.1 s
Cycle Time – Close	1.6 s 1.6 s
Crushing Force – Primary Cutter	820 Sh Ton 7298 kN
Crushing Force – Cutter Tip	459 Sh Ton 4086 kN
Crushing Force – Tooth Tip	228 Sh Ton 2031 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	5076 psi 350 bar
Jaw Circuit – Max. Oil Flow	119 gal/min 450 l/min
Rotation Circuit – Max. Oil Pressure	160 bar 2321 psi
Rotation Circuit – Max. Oil Flow	50 l/min 13 gal/min

Dimensions - Jaw

Spec	Value
Jaw Depth	42.9 in 1089 mm
Cutter Length	8.9 in 225 mm
Jaw Opening – Maximum	54.5 in 1384 mm
Jaw Width – Fixed	7.4 in 187 mm
Jaw Width – Moveable	7.4 in 187 mm

Dimensions - Housing + Jaw

Spec	Value
Length	105.4 in 2678 mm
Height	103.4 in 2626 mm
Width	43.3 in 1100 mm

Recommended Carrier Weight

Spec	Value
Excavator Minimum	65 tons 65 tons
Excavator Maximum	90 tons 90 tons
