Caterpillar

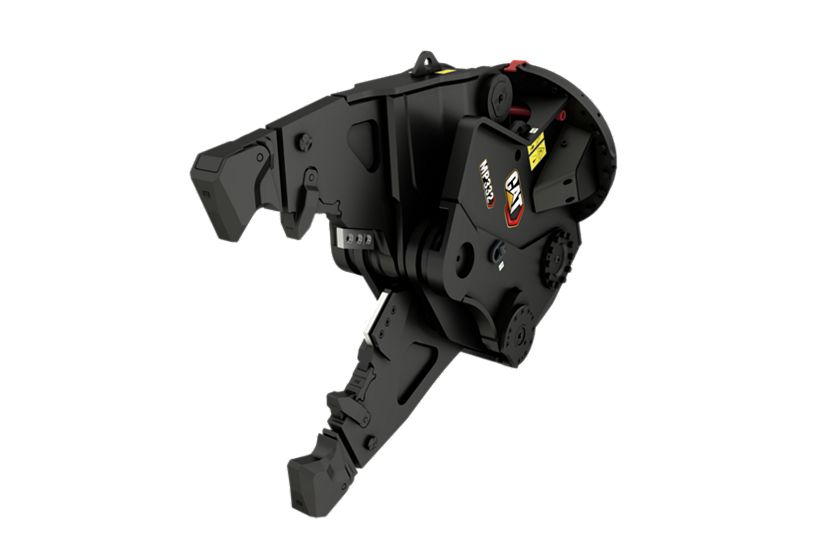

MP332 Demolition Jaw

Name: MP332 Demolition Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Demolition jaws concentrate force to crack the largest concrete. Any strength concrete, with and without rebar is reduced to manageable size.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

URL
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.9 s 1.9 s
Cycle Time – Close	1.3 s 1.3 s
Crushing Force – Primary Cutter	460.2 Sh Ton 4094 kN
Crushing Force – Cutter Tip	402.8 Sh Ton 3584 kN
Crushing Force – Tooth Tip	129.8 Sh Ton 1155 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	33000 kPa 4786 psi
Jaw Circuit – Max. Oil Flow	74 gpm 280 L/min
Rotation Circuit – Max. Oil Pressure	16000 kPa 2321 psi
Rotation Circuit – Max. Oil Flow	40 L/min 10.6 gpm

Dimensions - Jaw

Spec	Value
Jaw Depth	35.8 in 909 mm
Cutter Length	7.9 in 200 mm
Jaw Opening – Maximum	42.4 in 1078 mm
Jaw Width – Fixed	5.5 in 140 mm
Jaw Width – Moveable	5.5 in 140 mm

Dimensions - Housing + Jaw

Spec	Value
Length	88.7 in 2253 mm
Height	78.5 in 1995 mm
Width	39.6 in 1005 mm

Recommended Carrier Weight

Spec	Value
Excavator Minimum	32 tons 32 tons
Excavator Maximum	50 tons 50 tons
