Caterpillar

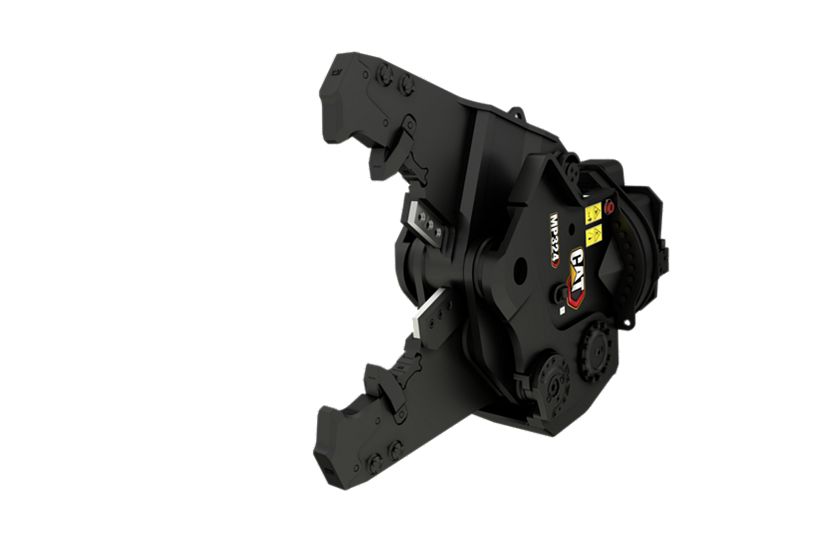

MP324 Demolition Jaw

Name: MP324 Demolition Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Demolition jaws concentrate force to crack the largest concrete. Any strength concrete, with and without rebar is reduced to manageable size.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

Company
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.8 s 1.8 s
Cycle Time – Close	1.2 s 1.2 s
Crushing Force – Primary Cutter	423.4 Sh Ton 3767 kN
Crushing Force – Cutter Tip	371.8 Sh Ton 3308 kN
Crushing Force – Tooth Tip	112.6 Sh Ton 1002 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	33000 bar 4786 psi
Jaw Circuit – Max. Oil Flow	59.4 gpm 225 L/min
Rotation Circuit – Max. Oil Pressure	14000 bar 2031 psi
Rotation Circuit – Max. Oil Flow	40 L/min 10.6 gpm

Dimensions - Jaw

Spec	Value
Jaw Depth	29.8 in 756 mm
Cutter Length	7.5 in 191 mm
Jaw Opening – Maximum	35.6 in 903 mm
Jaw Width – Fixed	5.2 in 132 mm
Jaw Width – Moveable	5.2 in 132 mm

Dimensions - Housing + Jaw

Spec	Value
Length	81.9 in 2079 mm
Height	62.7 in 1593 mm
Width	31.2 in 793 mm

Recommended Carrier Weight

Spec	Value
Excavator Minimum	24 tons 24 tons
Excavator Maximum	35 tons 35 tons
