Caterpillar

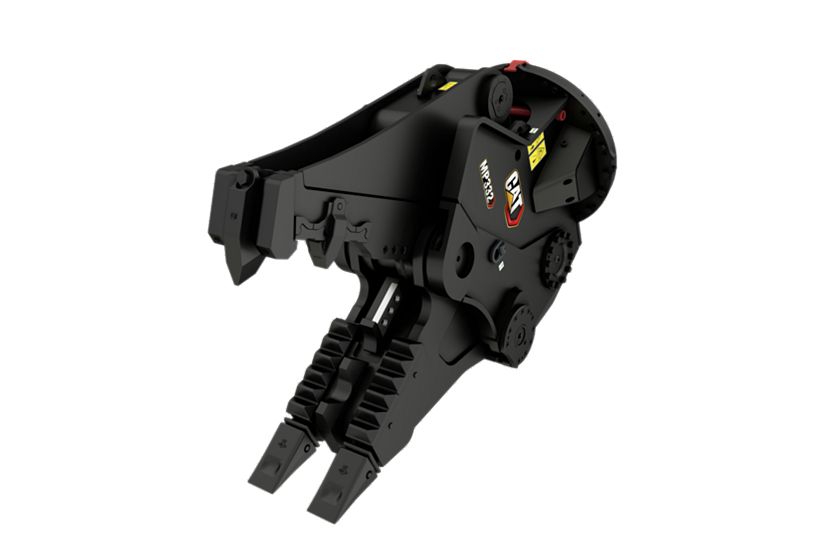

MP324 Pulverizer Jaw

Name: MP324 Pulverizer Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Pulverizer jaws reduce concrete to the smallest size, and cleanly separate rebar for recycling.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

LinkedIn
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.9 s 1.9 s
Cycle Time – Close	1.3 s 1.3 s
Crushing Force – Primary Cutter	556.1 Sh Ton 4947 kN
Crushing Force – Cutter Tip	487.4 Sh Ton 4336 kN
Crushing Force – Tooth Tip	142.5 Sh Ton 1268 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	4786 psi 33000 kPa
Jaw Circuit – Max. Oil Flow	74 gpm 280 L/min
Rotation Circuit – Max. Oil Pressure	2321 psi 16000 kPa
Rotation Circuit – Max. Oil Flow	10.6 gpm 40 L/min

Dimensions - Jaw

Spec	Value
Jaw Depth	33.1 in 840 mm
Cutter Length	7.9 in 200 mm
Jaw Opening – Maximum	31.6 in 803 mm
Jaw Width – Fixed	19.7 in 500 mm
Jaw Width – Moveable	12.3 in 313 mm

Dimensions - Housing + Jaw

Spec	Value
Length	89.6 in 2277 mm
Height	74 in 1879 mm
Width	39.6 in 1005 mm

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	7418.5 lb 3365 kg
Weight – Jaw Only	3293.7 lb 1494 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	32 tons 32 tons
Excavator Maximum	50 tons 50 tons
