Caterpillar

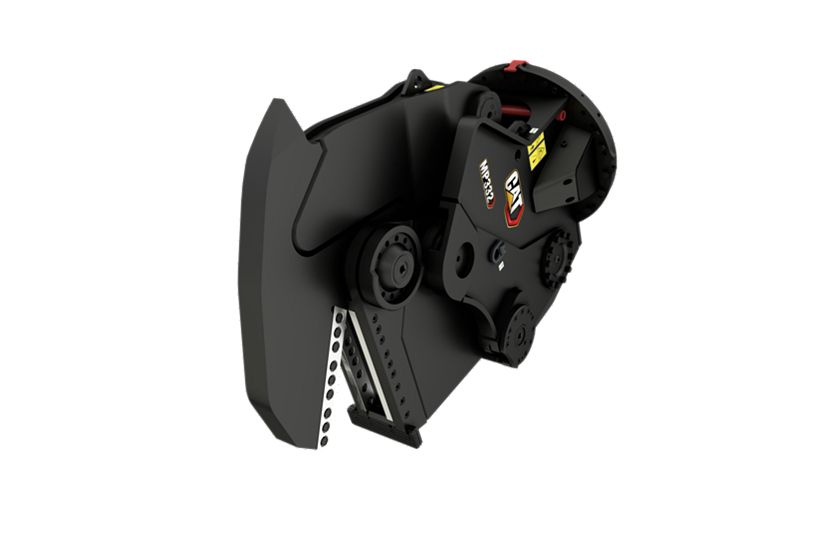

MP332 Tank Shear

Name: MP332 Tank Shear
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

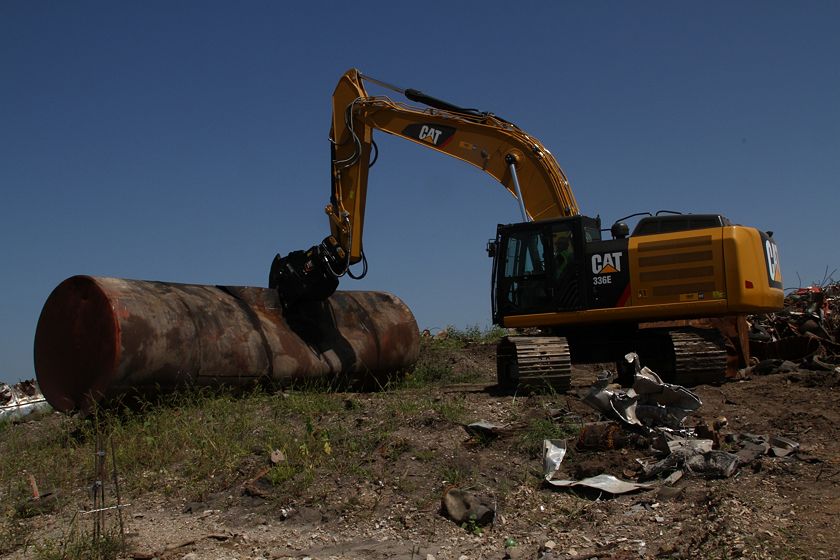

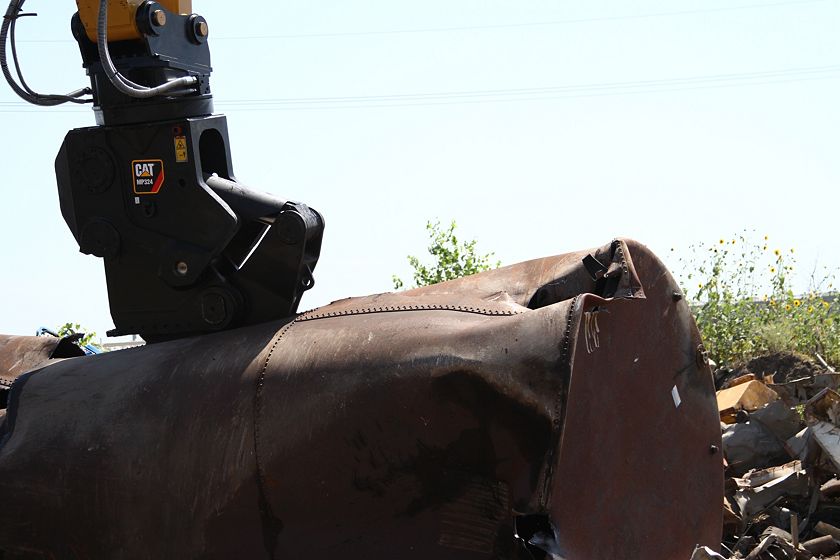

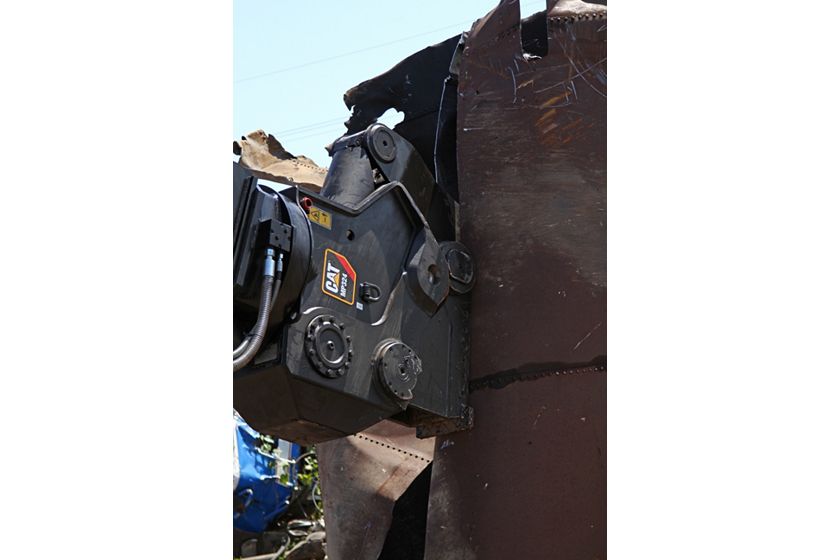

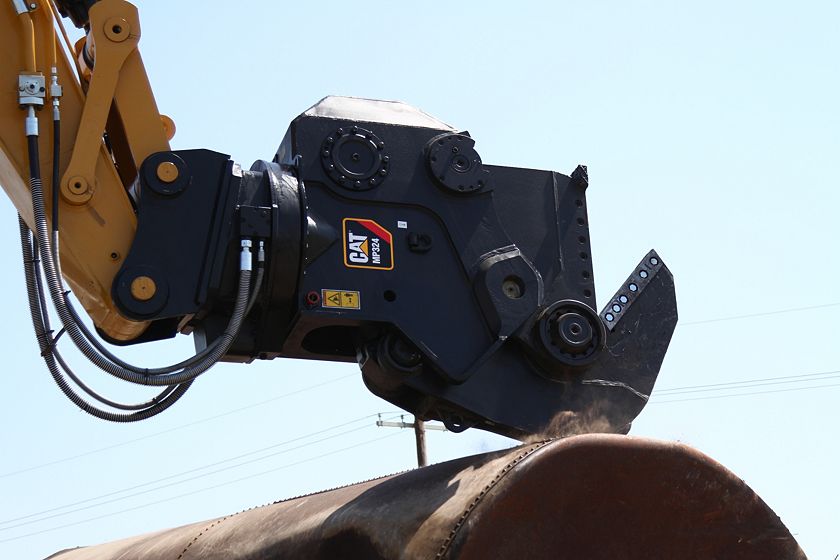

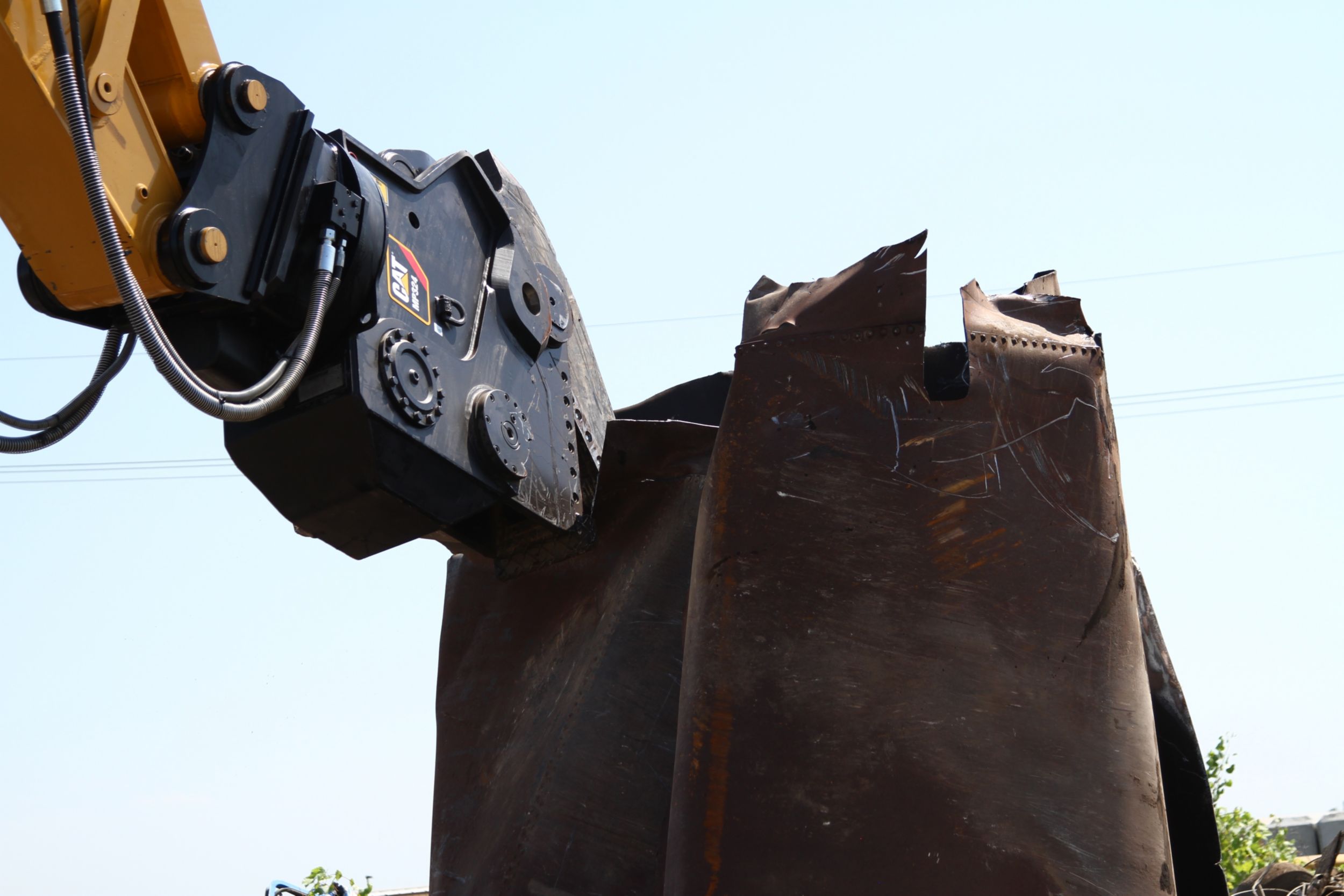

Tank shear jaws feature blades covering the length of both jaws. The angle attacks vertical or horizontal plate steel with ease, making short work of grain mills and storage tanks.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.9 s 1.9 s
Cycle Time – Close	1.3 s 1.3 s
Cutting Force – Blade Tip	792 Sh Ton 7048 kN
Cutting Force – Blade Center	342 Sh Ton 3045 kN
Cutting Force – Blade Throat	217 Sh Ton 1934 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	5076 psi 350 bar
Jaw Circuit – Max. Oil Flow	74 gal/min 280 l/min
Rotation Circuit – Max. Oil Pressure	2321 psi 160 bar
Rotation Circuit – Max. Oil Flow	11 gal/min 40 l/min

Dimensions - Jaw

Spec	Value
Jaw Depth	20.5 in 521 mm
Cutter Length	23.6 in 600 mm
Jaw Opening – Maximum	20.5 in 521 mm
Jaw Width – Fixed	15.4 in 390 mm
Jaw Width – Moveable	4.7 in 120 mm

Dimensions - Housing + Jaw

Spec	Value
Width	86.6 in 2200 mm
Length	77.5 in 1969 mm
Height	39.6 in 1005 mm

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	8150 lb 3697 kg
Weight – Jaw Only	4026 lb 1826 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	32 tons 32 tons
Excavator Maximum	50 tons 50 tons
