Caterpillar

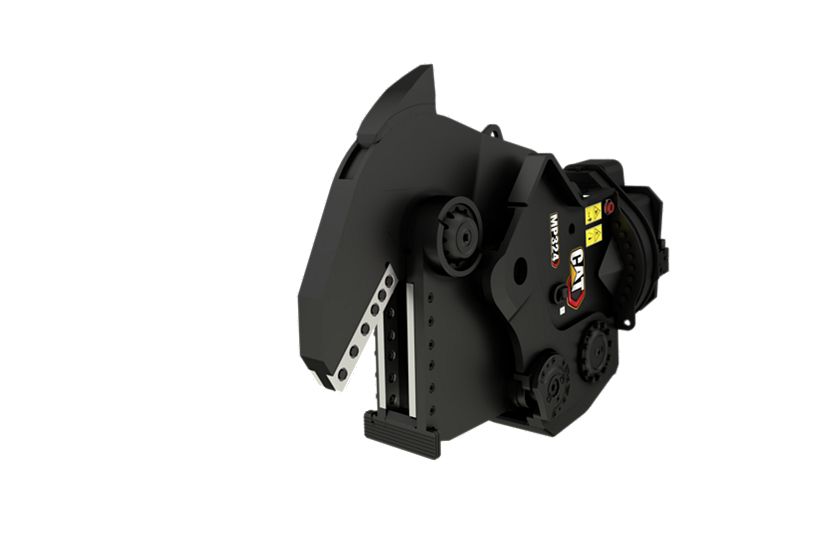

MP324 Tank Shear

Name: MP324 Tank Shear
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

Tank shear jaws feature blades covering the length of both jaws. The angle attacks vertical or horizontal plate steel with ease, making short work of grain mills and storage tanks.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

Documents

Get more info

Facebook
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.8 s 1.8 s
Cycle Time – Close	1.2 s 1.2 s
Cutting Force – Blade Throat	488.3 Sh Ton 4344 kN
Cutting Force – Blade Center	212.9 Sh Ton 1894 kN
Cutting Force – Blade Tip	174.2 Sh Ton 1550 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	4786 psi 33000 kPa
Jaw Circuit – Max. Oil Flow	59.4 gpm 225 L/min
Rotation Circuit – Max. Oil Pressure	2031 psi 14000 kPa
Rotation Circuit – Max. Oil Flow	10.6 gpm 40 L/min

Dimensions - Jaw

Spec	Value
Jaw Depth	19.3 in 490 mm
Cutter Length	17.3 in 439 mm
Jaw Opening – Maximum	13.7 in 347 mm
Jaw Width – Fixed	11.3 in 286 mm
Jaw Width – Moveable	4.7 in 120 mm

Dimensions - Housing + Jaw

Spec	Value
Width	31.2 in 793 mm
Length	83.8 in 2129 mm
Height	61.9 in 1571 mm

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	6113.4 lb 2773 kg
Weight – Jaw Only	2486.8 lb 1128 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	24 tons 24 tons
Excavator Maximum	35 tons 35 tons
