Caterpillar

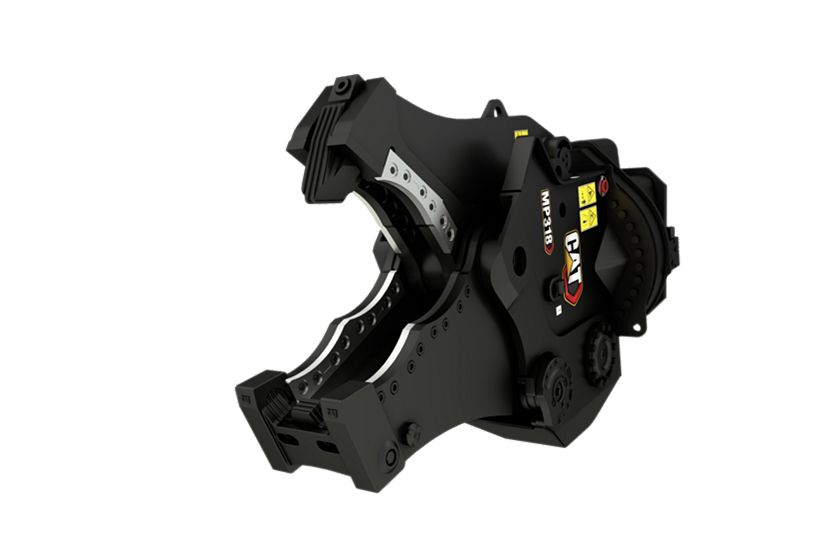

MP318 Universal Jaw

Name: MP318 Universal Jaw
Brand: Caterpillar

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Media

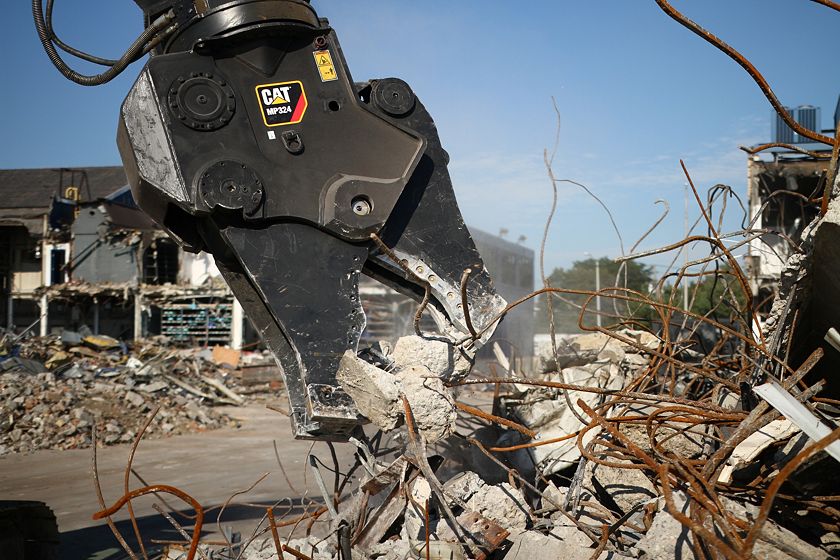

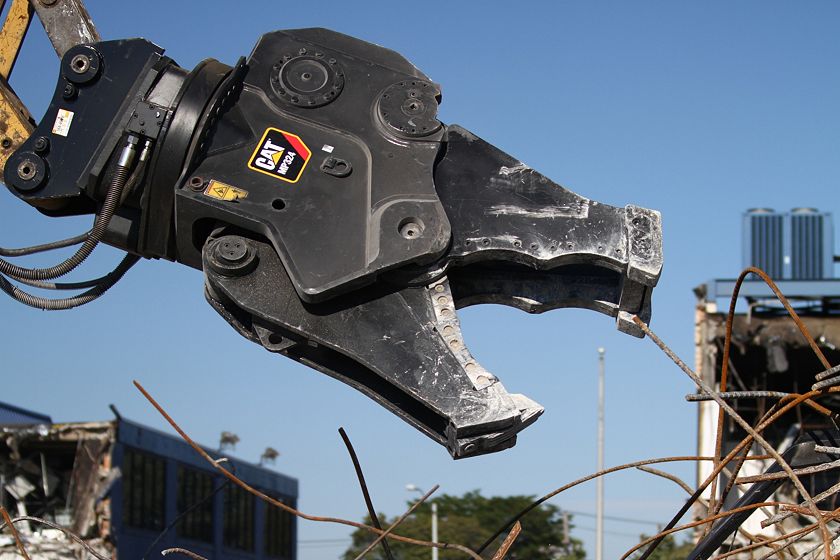

Universal jaws both crack concrete and cut along the length of the jaws. Scalloped blades make “teeth” which crack concrete, and the full length knives cut rebar cleanly at the edge.

The innnovative SpeedBooster is the heart of the Cat Multi-Processor system. It delivers power when you need it, then speed when you don’t. You get power without compromise, and production without equal.

Changing jaws is fast: taking a single operator less than twelve minutes. Change from job to job quickly, and get right back to work.

You do more than one thing: you need to do it all. The Cat Multi-Processor is your versatile partner. Change from one jaw to another in less than twelve minutes.

Productivity means profit, and the Cat Multi-Processor is your key to productive demolition.

You need equipment that lasts. The Cat Multi-Processor is build to endure, no matter what you throw at it.

The housing is the heart of the Cat Multi-Processor system. No matter what jaw set you’re using, the powerful hydraulics, quick rotation and innovative speed booster will produce like no other.

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaw in 15 Minutes

Durable and Maintainable

Specifications

US Metric

Performance

Spec	Value
Cycle Time – Open	1.6 s 1.6 s
Cycle Time – Close	1 s 1 s
Crushing Force – Primary Cutter	299 Sh Ton 2661 kN
Crushing Force – Cutter Tip	167 Sh Ton 1489 kN
Crushing Force – Tooth Tip	96 Sh Ton 855 kN

Hydraulic Requirements

Spec	Value
Jaw Circuit – Max. Oil Pressure	5076 psi 350 bar
Jaw Circuit – Max. Oil Flow	40 gal/min 150 l/min
Rotation Circuit – Max. Oil Pressure	2031 psi 140 bar
Rotation Circuit – Max. Oil Flow	11 gal/min 40 l/min

Dimensions - Jaw

Spec	Value
Jaw Depth	22.2 in 565 mm
Cutter Length	15.7 in 400 mm
Jaw Opening – Maximum	18.2 in 462 mm
Jaw Width – Fixed	15 in 380 mm
Jaw Width – Moveable	8.4 in 214 mm

Dimensions - Housing + Jaw

Spec	Value
Length	78.9 in 2003 mm
Height	50.2 in 1274 mm
Width	31.2 in 793 mm

Weight

Spec	Value
Weight – Housing, Jaw and Bracket	4352 lb 1974 kg
Weight – Jaw Only	1682 lb 763 kg

Recommended Carrier Weight

Spec	Value
Excavator Minimum	18 tons 18 tons
Excavator Maximum	25 tons 25 tons
