Cat

P224 Secondary Pulverizer

Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Media

Photos

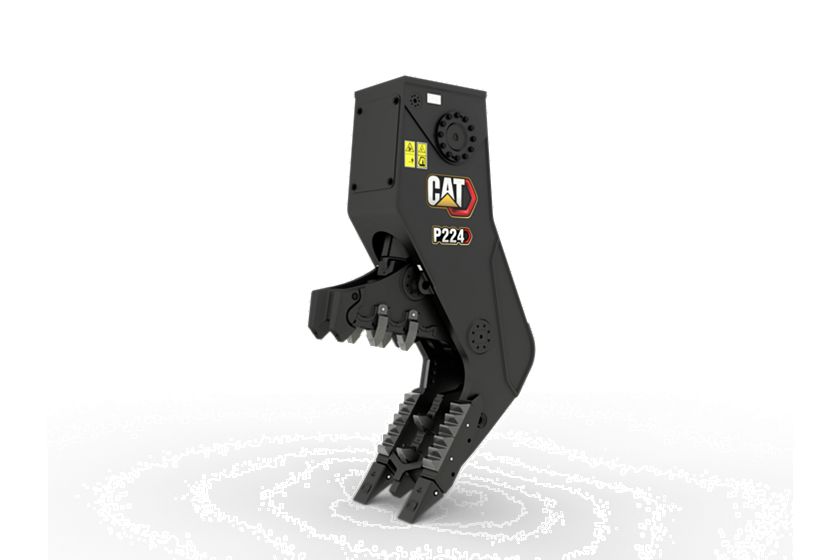

Cat P224 Secondary Pulverizer
Cat P224 Secondary Pulverizer
Cat P224 Pulverizer on Cat Excavator
Cat P224 Pulverizer on Cat Excavator
Cat Secondary Pulverizer crushing rock
Cat Secondary Pulverizer crushing rock

Documents

Features

Cat pulverizer at demolition site

HIGH PERFORMANCE

Grease points accessible from the ground

EASY TO MAINTAIN

Cat pulverizer on 352 UHD

RELIABILITY AND DURABILITY

Cat Attachment Locator

BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES

Cat couplers

VERSATILITY AND CONVENIENCE WITH COUPLERS

Details

Specifications

Spec Value
Cycle Time – Open 1.9 s 1.9 s
Cycle Time – Close 1.3 s 1.3 s
Crushing Force – Primary Cutter 409 Sh Ton 3640 kN
Crushing Force – Tip 129 Sh Ton 1145 kN
Crushing Force – Primary Tooth 224 Sh Ton 1990 kN
Spec Value
Jaw Circuit – Max. Oil Pressure 4786 psi 33000 kPa
Jaw Circuit – Max. Oil Flow 74 gal/min 280 l/min
Spec Value
Jaw Depth 33.3 in 845 mm
Cutter Length 7.9 in 200 mm
Jaw Opening – Maximum 46.3 in 1175 mm
Jaw Width – Fixed 26 in 660 mm
Jaw Width – Moveable 15 in 380 mm
Spec Value
Length 107.3 in 2725 mm
Height 62.4 in 1585 mm
Width 26 in 660 mm
Spec Value
Weight – Housing, Jaw and Bracket 5952 lb 2700 kg
Spec Value
Excavator Minimum 24000 kg (52900 lb) 24000 kg (52900 lb)
Excavator Maximum 35000 kg (77200 lb) 35000 kg (77200 lb)
