Caterpillar

P214 Secondary Pulverizer

Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Media

Photos

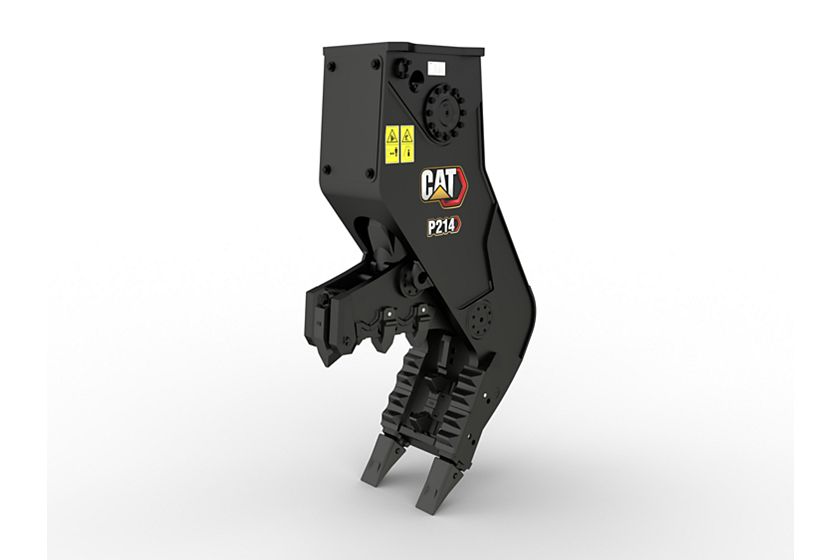

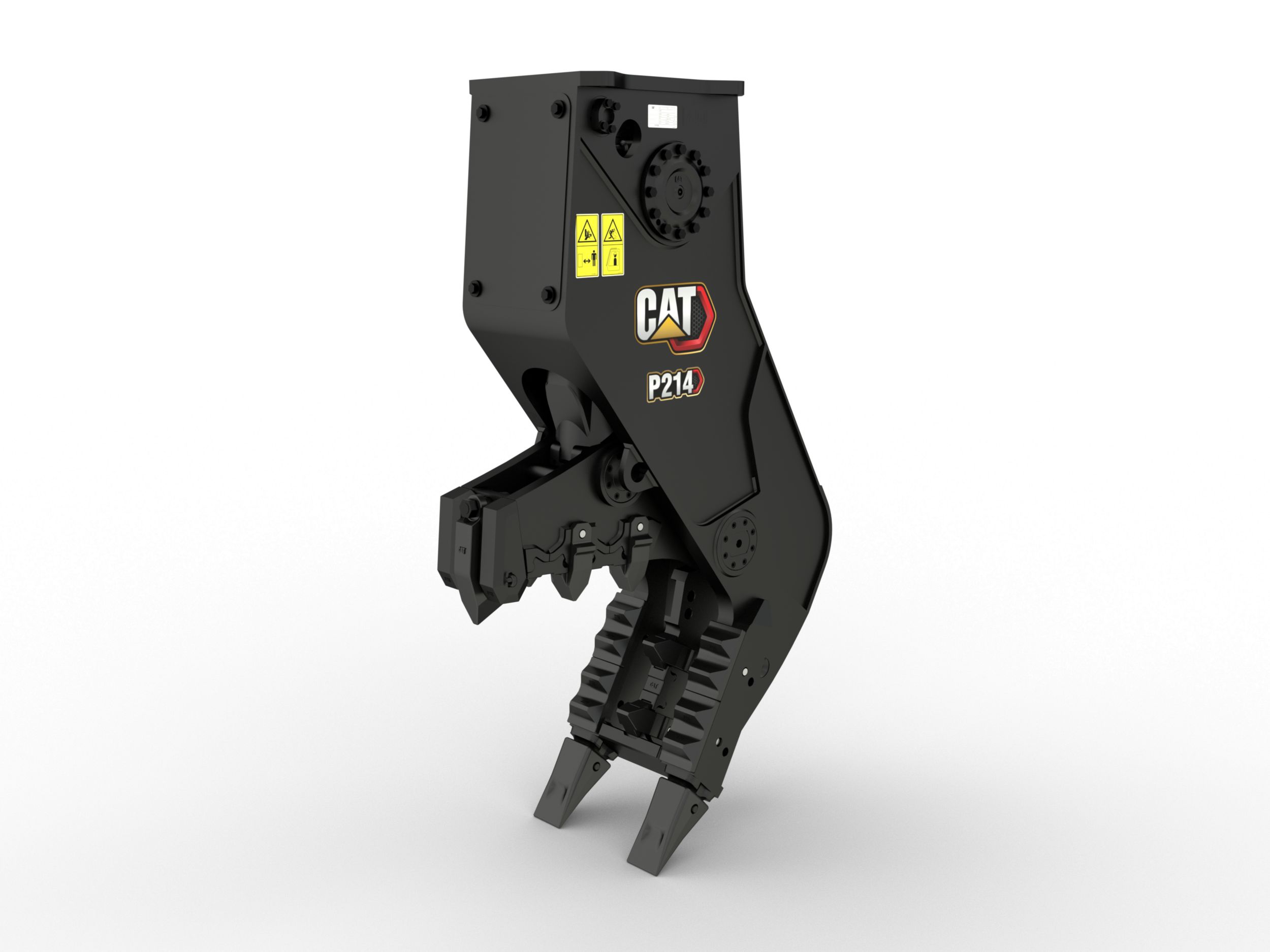

Cat P214 Secondary Pulverizer
Cat P214 Secondary Pulverizer

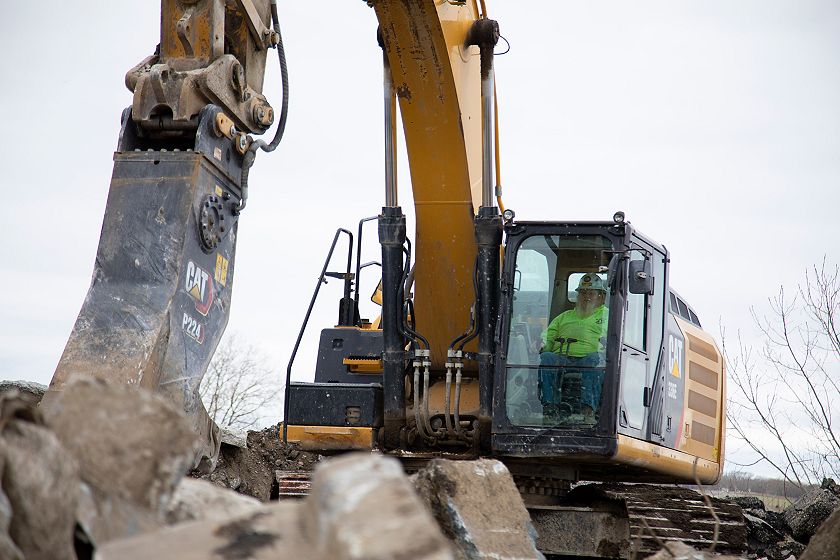

Cat P224 Pulverizer on Cat Excavator
Cat P224 Pulverizer on Cat Excavator

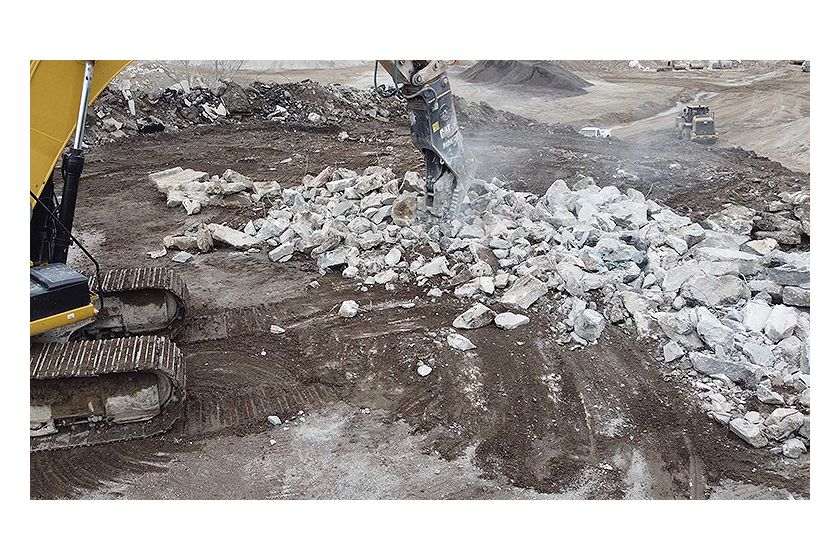

Cat Secondary Pulverizer crushing rock
Cat Secondary Pulverizer crushing rock

Documents

Features

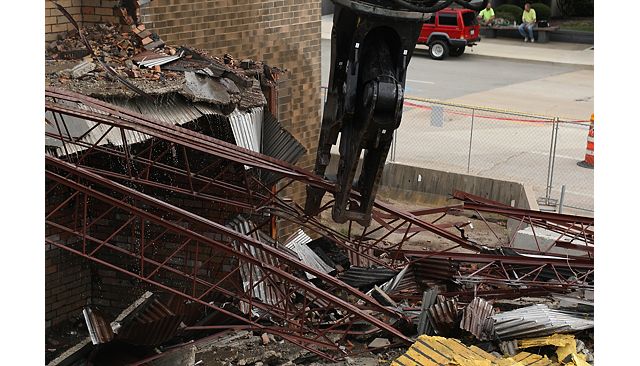

Cat pulverizer at demolition site

HIGH PERFORMANCE

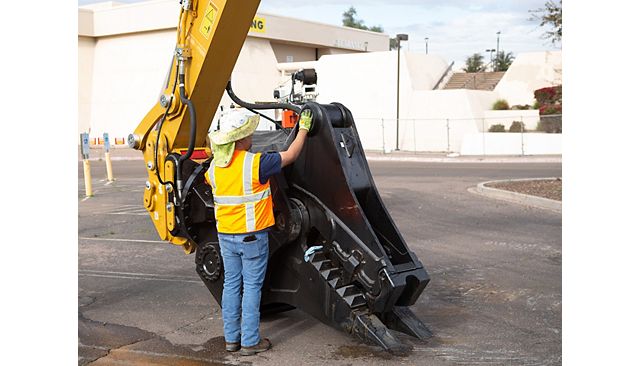

Grease points accessible from the ground

EASY TO MAINTAIN

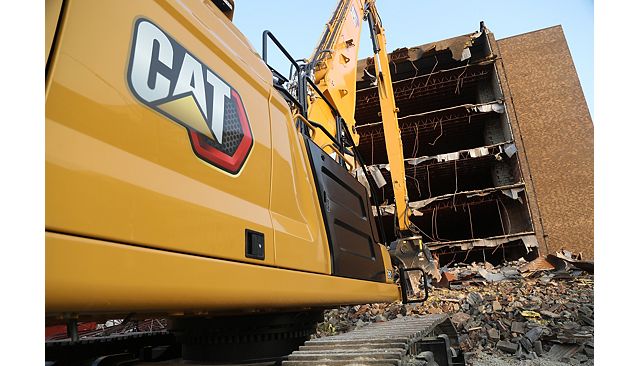

Cat pulverizer on 352 UHD

RELIABILITY AND DURABILITY

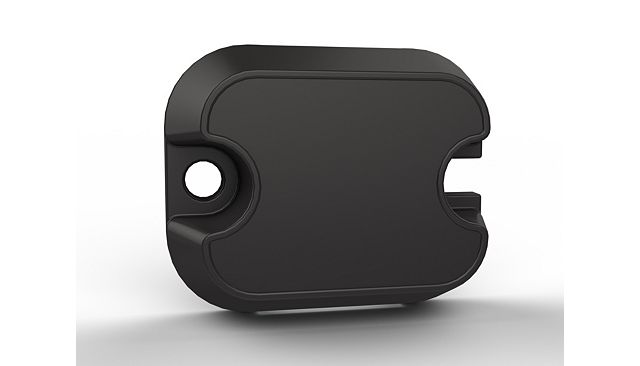

Cat Attachment Locator

BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES

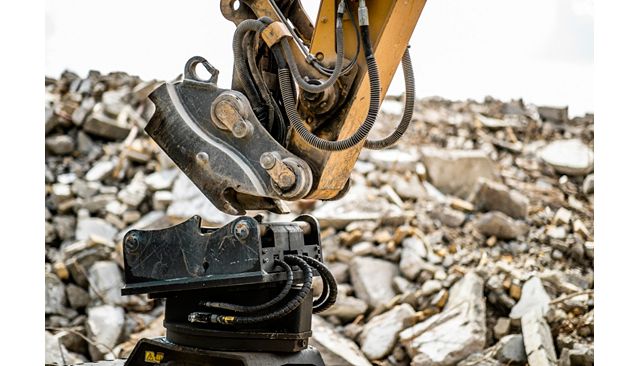

Cat couplers

VERSATILITY AND CONVENIENCE WITH COUPLERS

Details

Specifications

Spec Value
Cycle Time – Open 1.6 s 1.6 s
Cycle Time – Close 1 s 1 s
Crushing Force – Primary Cutter 264 Sh Ton 2345 kN
Crushing Force – Tip 74 Sh Ton 655 kN
Crushing Force – Primary Tooth 148 Sh Ton 1320 kN
Spec Value
Jaw Circuit – Max. Oil Pressure 4786 psi 33000 kPa
Jaw Circuit – Max. Oil Flow 40 gal/min 150 l/min
Spec Value
Jaw Depth 25.6 in 650 mm
Cutter Length 4.5 in 115 mm
Jaw Opening – Maximum 34.8 in 885 mm
Jaw Width – Fixed 21.9 in 555 mm
Jaw Width – Moveable 12.2 in 310 mm
Spec Value
Length 87 in 2210 mm
Height 51.6 in 1310 mm
Width 21.9 in 555 mm
Spec Value
Weight – Housing, Jaw and Bracket 3285 lb 1490 kg
Spec Value
Excavator Minimum 14000 kg (30900 lb) 14000 kg (30900 lb)
Excavator Maximum 19000 kg (41900 lb) 19000 kg (41900 lb)
