Caterpillar

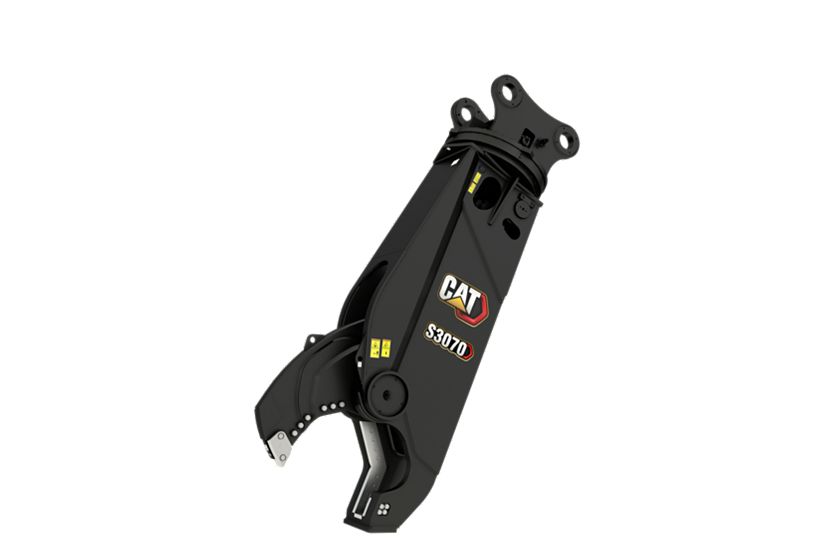

S3070 Rotating Scrap & Demolition Shear
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
Media
Photos
Videos
360° View
Exterior
Represents all rotating Shears except where noted.
Documents
Features
Long-Lasting Quality
Easy to Maintain
Options to Meet Your Needs
Details
Specifications
General
| Spec | Value |
|---|---|
| Weight – Boom Mount | 15578 lb 7065 kg |
| Weight – Stick Mount | 15259 lb 6920 kg |
| Length | 193 in 4890 mm |
| Height | 66 in 1685 mm |
| Width | 46 in 1160 mm |
| Jaw Width – Fixed | 21 in 546 mm |
| Jaw Width – Moving | 6 in 158 mm |
| Jaw Opening | 32.2 in 819 mm |
| Jaw Depth | 30 in 755 mm |
| Throat Force | 1016 ton-f 9037 kN |
| Apex Force | 436 ton-f 3880 kN |
| Tip Force | 237 ton-f 2110 kN |
| Cutting Circuit – Maximum Relief Pressure | 5075 psi 35000 kPa |
| Cutting Circuit – Maximum Flow | 140 gal/min 530 l/min |
| Rotation Circuit – Maximum Relief Pressure | 2030 psi 14000 kPa |
| Rotation Circuit – Maximum Flow | 21 gal/min 80 l/min |
| Stick Mounted – Maximum | 92 tons 92 tons |
| Stick Mounted – Minimum | 70 tons 70 tons |
| Boom Mounted – Minimum | 30 tons 30 tons |
| Boom Mounted – Maximum | 54 tons 54 tons |
| Cycle Time – Close | 3.4 Seconds 3.4 Seconds |
