Caterpillar

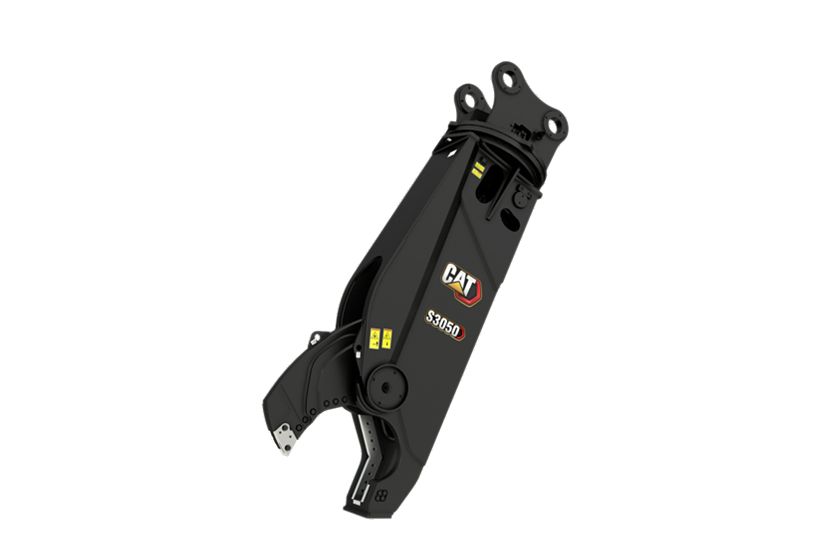

S3050 Rotating Scrap & Demolition Shear
Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.
Media
Photos
Videos
360° View
Exterior
Represents all rotating Shears except where noted.
Documents
Features
Long-Lasting Quality
Easy to Maintain
Options to Meet Your Needs
Details
Specifications
General
| Spec | Value |
|---|---|
| Weight – Boom Mount | 11201 lb 5080 kg |
| Weight – Stick Mount | 10650 lb 4830 kg |
| Length | 176 in 4475 mm |
| Height | 58 in 1480 mm |
| Width | 42 in 1060 mm |
| Jaw Width – Fixed | 19 in 476 mm |
| Jaw Width – Moving | 5 in 135 mm |
| Jaw Opening | 26.8 in 681 mm |
| Jaw Depth | 25 in 635 mm |
| Throat Force | 741 ton-f 6592 kN |
| Apex Force | 340 ton-f 3029 kN |
| Tip Force | 187 ton-f 1667 kN |
| Cutting Circuit – Maximum Relief Pressure | 5075 psi 35000 kPa |
| Cutting Circuit – Maximum Flow | 92 gal/min 350 l/min |
| Rotation Circuit – Maximum Relief Pressure | 2030 psi 14000 kPa |
| Rotation Circuit – Maximum Flow | 11 gal/min 40 l/min |
| Stick Mounted – Maximum | 60 tons 60 tons |
| Stick Mounted – Minimum | 42 tons 42 tons |
| Boom Mounted – Minimum | 24 tons 24 tons |
| Boom Mounted – Maximum | 40 tons 40 tons |
| Cycle Time – Close | 3.3 Seconds 3.3 Seconds |
